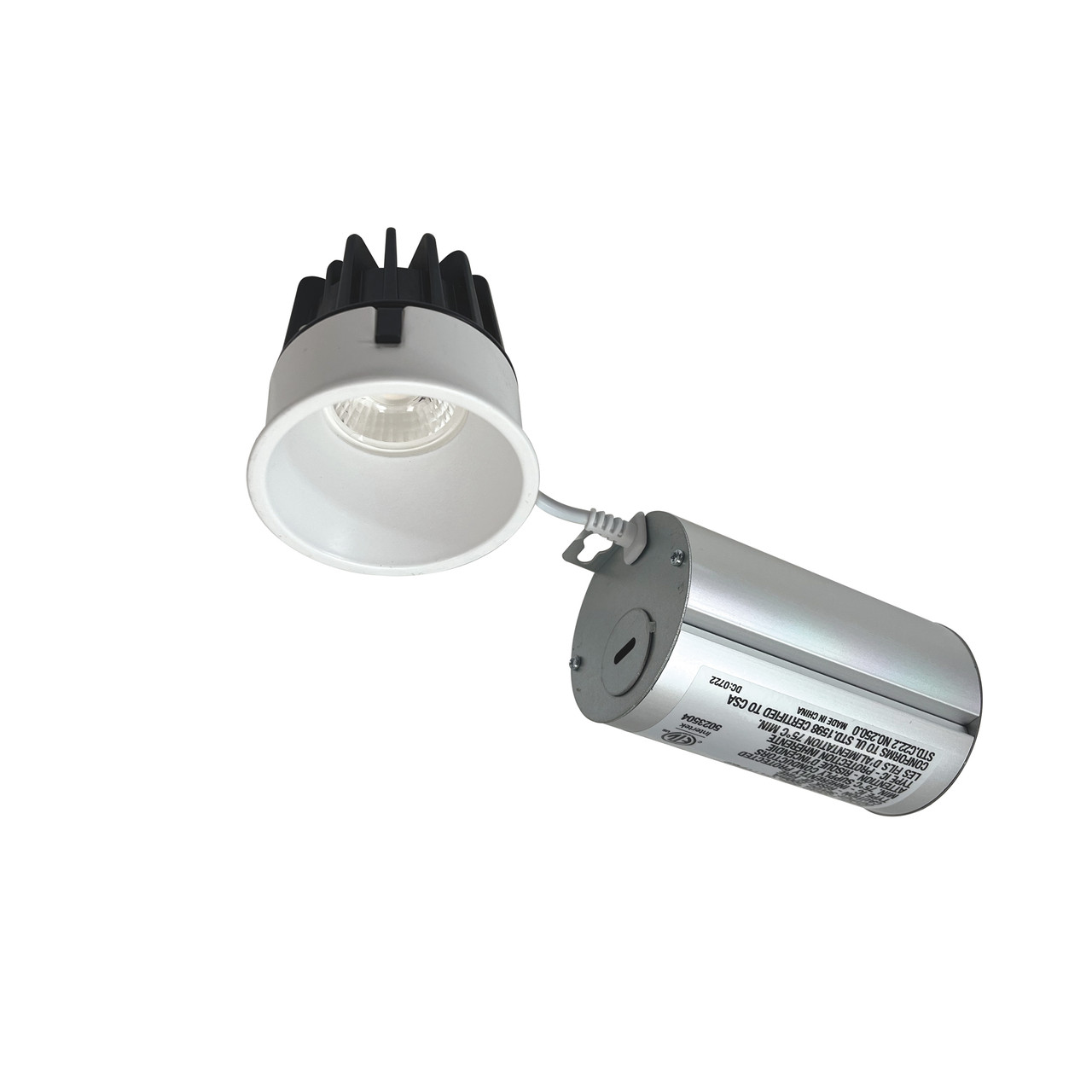

NM2-2RTLDC6040MPW 2" M2 Round Trimless LED Downlight 750LM / 8W 4000K Matte Powder

Product Description



NM2-2RTLDC6040MPW 2" M2 Round Trimless LED Downlight from Nora Lighting is a can-less, trimless remodel/new-construction solution that delivers about 774 lumens at 4000K while drawing only 8W with 90+ CRI. It installs with a required mud-in plate for a clean, no-flange ceiling and is IC Air-Tight rated for insulated ceilings.

Product Benefits

• Trimless, minimalist ceiling plane: mud-in plate creates a clean, no-flange appearance for modern interiors.
• No can, faster installs: can-less design simplifies both remodel and new construction applications.
• Code-friendly: IC Air-Tight and JA8-2022 compliant for high-efficacy projects.
• Controlled illumination: ~44° beam provides comfortable task and accent lighting.

Key Features

• Required mud plate: order NM2-TLMR-R for true trimless installation.
• Accessories: optional NF-R246 universal frame-in, NFC-R275 frame-in with collar, and NMA-EW 4'/10' extension cables (max 40' driver-to-head).
• Finishes: Matte Powder White (MPW) or Matte Black (BB).
• Operating temp: 0–30 °C; air-seal gasket limits plenum airflow (Air-Tight).

Specifications

Technical Specs

Input Voltage	120V
Dimming	Triac / ELV
IC / Air-Tight	Yes (no housing required)
Driver	Remote driver enclosure with quick-connect leads
Operating Temperature	0–30 °C

Physical Specs

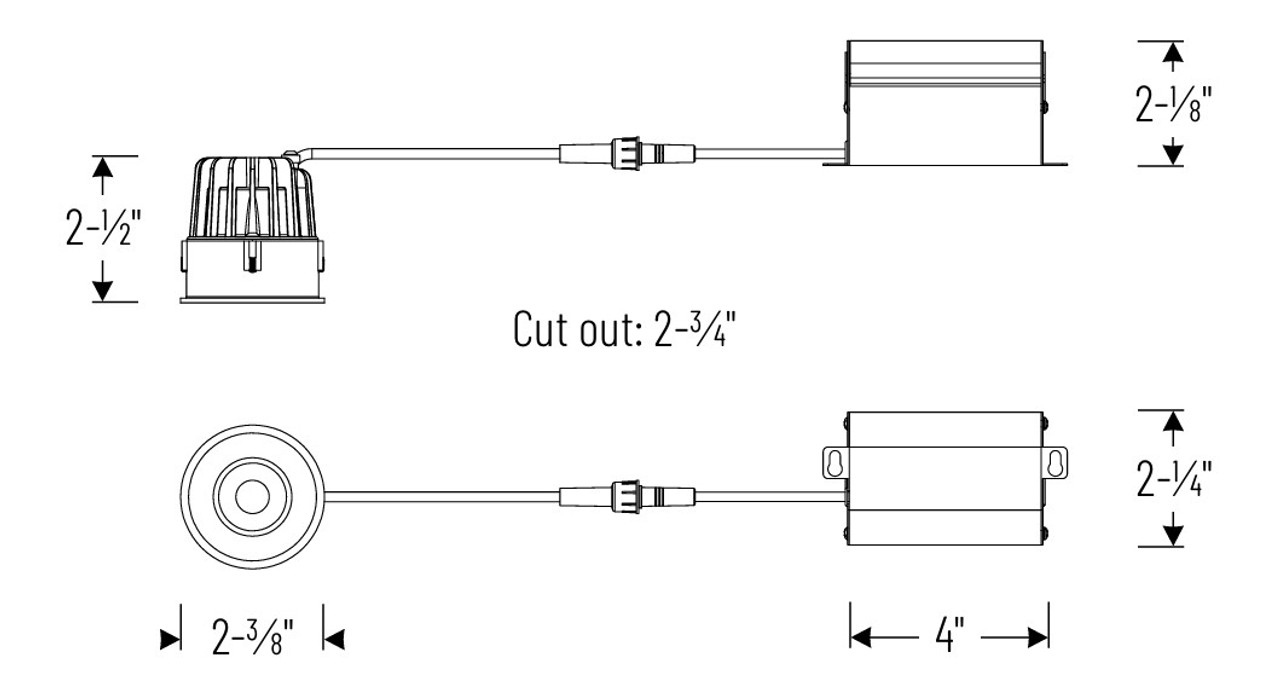

Ceiling Opening (Cutout)	2-3/4"
Aperture	2" nominal
Finish	Matte Powder White (MPW)
Construction	Die-cast aluminum
Mounting	Trimless mud-in plate (NM2-TLMR-R) required

Performance Specs

Lumen Output	~774 lm @ 4000K (MPW)
Wattage	8W nominal (tested ≈7.76W)
Efficacy	~100 lm/W
CCT Options	2700K / 3000K / 4000K
CRI	90+
Beam Angle	~44° narrow flood

Compliance & Safety

Damp Location	cETLus Listed
ENERGY STAR	Certified
Title 24 JA8-2022	Certified (high-efficacy)
FCC	Compliant
Warranty	5-Year Limited

Application Examples

• Trimless accents in living rooms, kitchens, and corridors where a no-flange look is desired
• Commercial and hospitality spaces needing crisp pools of light with minimal ceiling clutter
• Remodel projects where can-less installation reduces labor and ceiling depth
• Showrooms and retail displays benefiting from a controlled ~44° beam

Installation Tips

• Order and install the required NM2-TLMR-R trimless mud plate; tape and mud to a flush finish before setting the light.
• Use compatible Triac/ELV dimmers and verify dimming range on site.
• For new construction aid, use optional NF-R246 or NFC-R275 frame-ins.
• When extending between driver and luminaire, use NMA-EW-4 or NMA-EW-10 cables; total run not to exceed 40'.
• Confirm IC Air-Tight installation and maintain clearances around the driver enclosure.

Frequently Asked Questions

Does this fixture require a traditional recessed can?
No. It is a can-less system that mounts with the required NM2-TLMR-R mud plate for a trimless finish.

Is the NM2-2RTLDC6040MPW dimmable?
Yes. It supports Triac and ELV dimming; test dimming range on site and use compatible controls.

What is the delivered lumen output at 4000K?
Approximately 774 lumens in Matte Powder White finish at about 7.76W input (around 100 lm/W).

Is it IC and Air-Tight rated?
Yes. The luminaire is IC Air-Tight and includes an air-seal gasket to limit plenum airflow.

What beam spread should I expect?
A narrow flood, roughly 44°, suitable for general and accent illumination.

Which accessories are recommended?
Required: NM2-TLMR-R mud plate. Optional: NF-R246 or NFC-R275 frame-ins and NMA-EW extension cables (max 40').

Where can this be used?
Damp locations are acceptable (e.g., covered entries or bathrooms), following local codes and instructions.

What finishes are available?
Matte Powder White (MPW) and Matte Black (BB).

What is the warranty period?
5-Year Limited Warranty from Nora Lighting.
