Product Description
The NLOPAC2-R6509T2430W 6" AC Opal 2 - LED Surface Mount offers a sleek, energy-efficient lighting solution with a low-profile design, making it perfect for various applications, including residential and commercial spaces. With its advanced optics and precision construction, it ensures even illumination and long-lasting performance.
Key Features
- AC LED Design: Operates without a driver for enhanced reliability.
- Dimmable: Smooth dimming with Triac (5%) or ELV (10%) dimmers.
- Color Options: Available in 2700K, 3000K, 4000K, and 5000K with 90+ CRI.
- Flexible Mounting: Supports surface mounting on standard junction boxes and retrofitting on 5" or 6" recessed housings (retrofit kit sold separately).
- Energy Efficient: ENERGY STAR certified with a lumen output of up to 1100lm at only 16.5W.
- Durable Build: Steel die-formed housing ensures excellent heat dissipation and extended life.
- Versatile Finish: Available in black or white to suit various aesthetics.
Specifications
- Input Voltage: 120V

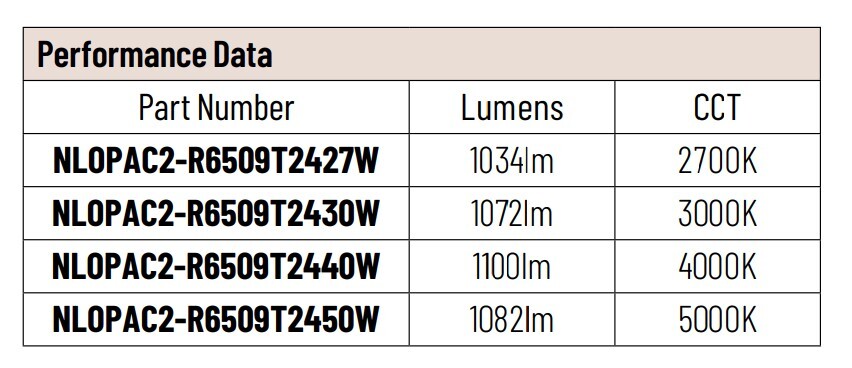

- Lumen Output: Up to 1100lm
- Wattage: 16.5W
- Color Temperature: 3000K (others available)
- Color Rendering Index (CRI): 90+
- Operating Temperature: 0°C to 30°C
- Lifetime: 50,000 hours (L70)
- Certifications: cETLus listed, ENERGY STAR certified, Title 24 JA8 compliant
- Warranty: 5-Year Limited Warranty
Installation Tips
- Compatible with 3" or 4" junction boxes, as well as 3" O boxes and pancake boxes.

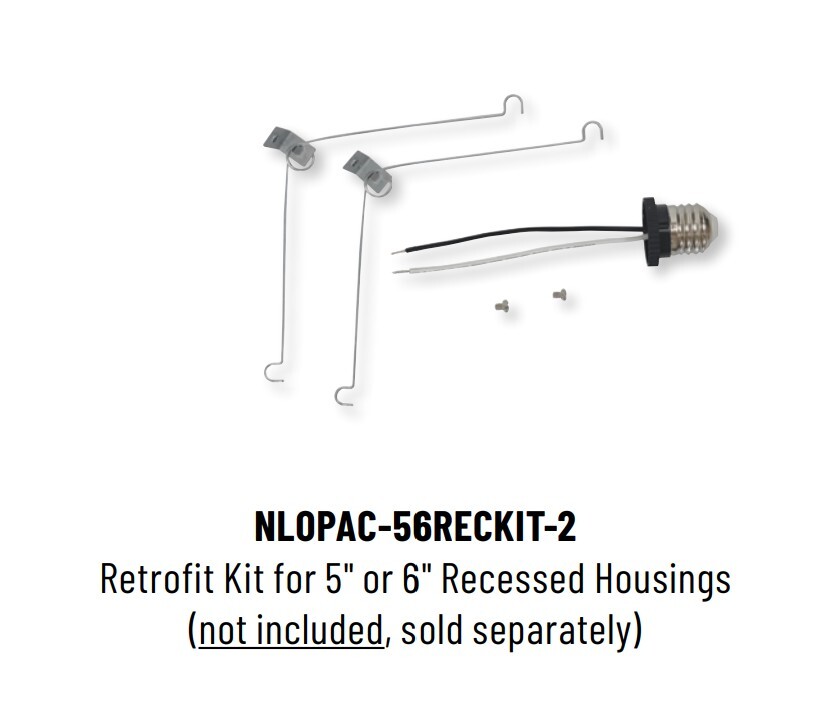

- Use the optional retrofit kit for mounting over 5" or 6" recessed housings.
- Ensure the fixture is installed in a location suitable for wet conditions if needed.
- Follow the instruction manual for proper wiring and dimmer compatibility.
Frequently Asked Questions
Q: Can this fixture be used in wet locations?
A: Yes, it is cETLus listed for wet locations, making it suitable for bathrooms and covered outdoor areas.
Q: What type of dimmers are compatible with this fixture?
A: The fixture supports Triac dimming down to 5% and ELV dimming down to 10%.
Q: Is the retrofit kit included with this product?
A: No, the retrofit kit is sold separately for use with 5" or 6" recessed housings.
Q: What is the expected lifespan of this light?
A: The fixture has an expected lifespan of 50,000 hours, backed by a 5-Year Limited Warranty.
Q: Does it come in multiple finishes?
A: Yes, it is available in black or white finishes to match your design needs.
