Product Description
NLOPAC-R6509T2430NM from Nora Lighting is a sleek 6" AC Opal LED Surface Mount fixture, engineered to deliver superior ambient lighting with minimal installation effort. With a modern natural metal finish and driverless AC LED technology, this ENERGY STAR® certified fixture mounts easily to junction boxes or retrofits over recessed housings for maximum versatility.
Brand: Nora Lighting
Model: NLOPAC-R6509T2430NM
Output: 1150 Lumens (1069lm actual at 3000K)
Wattage: 16.5W
Color Temperature: 3000K
Finish: Natural Metal
CRI: 90+
Voltage: 120V
Dimming: 5% Triac or 10% ELV
Free shipping on orders over $250
Product Benefits
- High-efficacy LED with a clean, modern finish
- Surface mounts to standard 4" junction boxes or retrofits 5"/6" recessed housings
- ENERGY STAR certified and Title 24 JA8-2022 compliant
- Wet location rated for bathrooms, laundry rooms, and covered exteriors
Key Features
- Driverless AC LED: Simplifies installation and reduces points of failure
- Universal Compatibility: Works with junction boxes or recessed housings (kit included)
- Durable Build: Die-cast aluminum housing ensures optimal heat dissipation
- Even Illumination: Precision molded lens delivers 112° wide flood beam
Specifications
Technical Specs
| Input Voltage | 120V |
| Wattage | 16.5W (14.64W actual) |
| Lumen Output | 1069lm @ 3000K |
| Color Temperature | 3000K |
| CRI | 90+ |
| Dimming | Triac (5%) / ELV (10%) |
| Operating Temperature | 0°C to 45°C |
| Rated Life | 50,000 hours (L70) |
Physical Specs

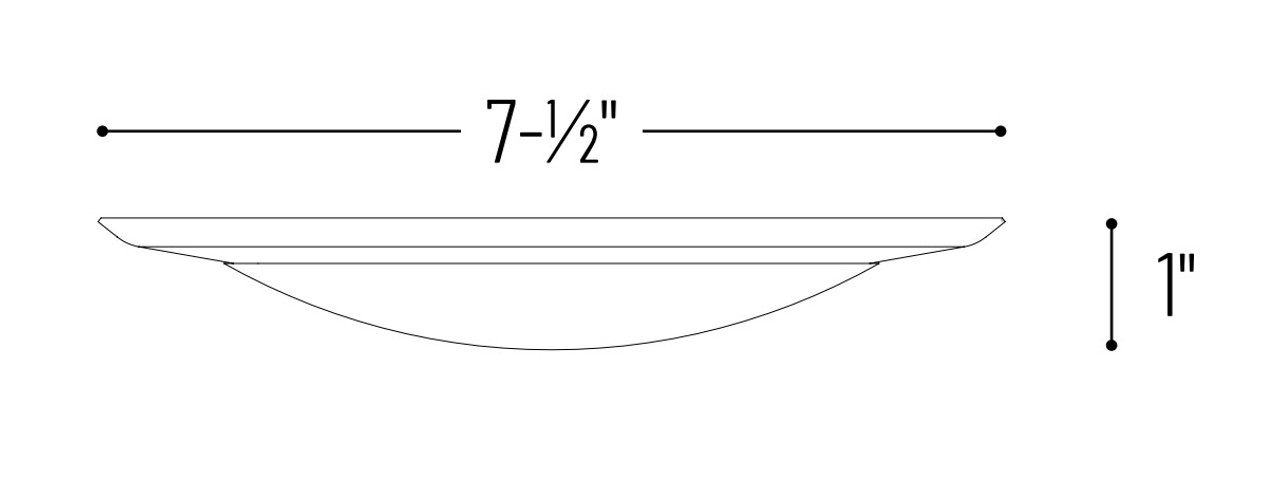

| Diameter | 7-1/2" |
| Height | 1" |
Application Examples
- Bathrooms, laundry rooms, and utility spaces
- Residential kitchens, hallways, and closets
- Hospitality and apartment buildings
- Covered outdoor ceilings
Installation Tips
- Mount directly to 4" junction boxes or 1/2" pancake boxes
- Use included retrofit kit for 5"/6" recessed housing installs
- Ensure IC-rated junction boxes are used for insulated ceilings
- Bracket (NLOPAC-4BKT-2) included for added mounting flexibility
Frequently Asked Questions
Q: Can I install this directly on the ceiling without a can?
A: Yes, it mounts directly to standard junction boxes and includes all hardware for surface installation.
Q: Does this model come with a retrofit kit?
A: Yes, it includes a retrofit bracket and medium base socket adapter for recessed housing applications.
Q: Is this dimmable?
A: Yes, down to 5% with Triac dimmers or 10% with ELV dimmers.
Q: What type of beam does this emit?
A: It provides a wide 112° flood beam for smooth, even illumination:contentReference[oaicite:0]{index=0}.
Q: Can I use this in wet locations like bathrooms?
A: Yes, it is cETLus Listed for Wet Locations and FCC compliant.
Q: What finishes are available for this model?
A: Options include white, black, bronze, and natural metal (this model is natural metal).
Q: Is it suitable for use in closets?
A: Yes, it complies with NEC Section 410.16 (A)(1) and 410.16 (C)(1) for closet installations.
