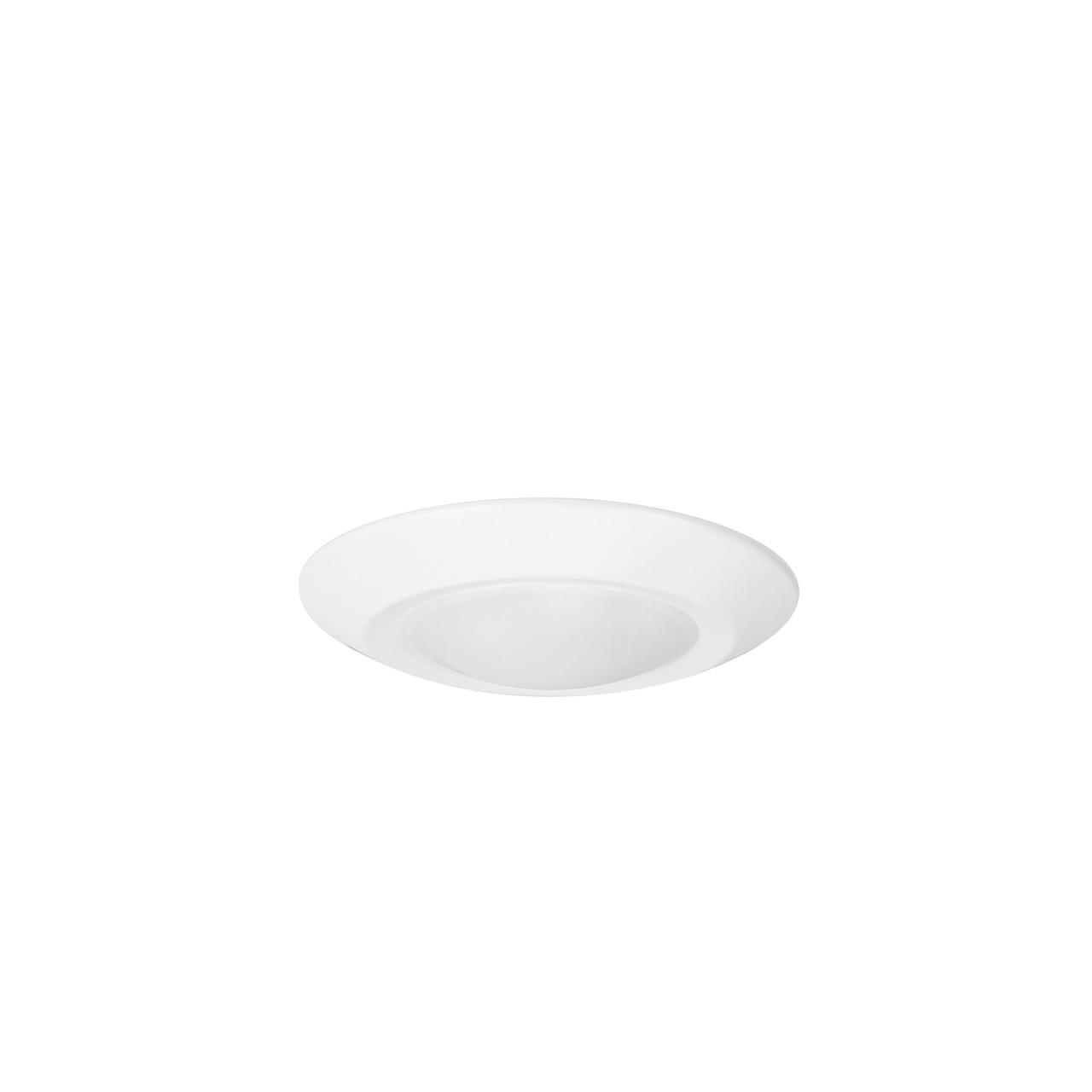

NLOPAC-R4REGT2440W 4" Regressed AC Opal LED Surface Mount 700LM / 11W 4000K White

Product Description



NLOPAC-R4REGT2440W 4" Regressed AC Opal LED Surface Mount from Nora Lighting delivers the recessed look in a low-profile surface fixture, producing up to 700 lumens (713 lm at 4000K) with crisp 90+ CRI. This driverless AC LED installs directly to a standard junction box and is listed for wet locations—ideal for modern residential and light commercial spaces.

Product Benefits

• Recessed look, surface simplicity: regressed optic mimics a downlight while mounting to a standard junction box.
• Driverless reliability: AC LED engine eliminates remote drivers for faster installs and fewer points of failure.
• Code-friendly: wet location, Title 24 JA8-2022 compliant, and suitable for closets per NEC when installed as directed.
• Quiet, uniform light: wide 118° distribution delivers smooth, glare-controlled general illumination.

Key Features

• Size: 4" regressed aperture with clean round trim
• Finish: White
• Mounting: fits 3" or 4" junction boxes and 1/2" deep pancake boxes
• IC / Fire Rated: IC rated with a properly rated 3"/4" J-box; fire rated when used with a fire-rated J-box
• Optional Retrofit: use NLOPAC-R4REGRECKIT to retrofit compatible recessed housings

Specifications

Technical Specs

Input Voltage	120V
Dimming	Triac / ELV
Operating Temperature	-20°C to 40°C
LED Type	AC LED (no external driver)

Physical Specs

Overall Diameter	6"
Regressed Aperture	4-3/8"
Profile (Height)	1" approx.
Finish	White
Mounting	3"/4" J-box or 1/2" pancake box

Performance Specs

Lumen Output	Up to 700 lm (713 lm @ 4000K)
Wattage	11W
Efficacy	~66 lm/W (@ 4000K)
CCT Options	2700K / 3000K / 4000K
CRI	90+
Beam Angle	118° wide flood

Compliance & Safety

Wet Location	Yes
ENERGY STAR	Certified
Title 24 JA8-2022	Certified (high-efficacy)
Closet-Rated	Suitable per NEC 410.16 when installed per code
FCC	Compliant
Warranty	5-Year Limited

Application Examples

• Hallways, bedrooms, dens, and living spaces needing a recessed-look surface light
• Bathrooms, laundry rooms, and covered entries (wet location listed)
• Closets and pantry areas (installed per NEC clearances)
• Multifamily, hospitality corridors, small offices, and retail fitting rooms

Installation Tips

• Mount directly to a 3" or 4" junction box or a 1/2" pancake box; verify box rating and support.
• For insulation contact (IC), use a 3"/4" J-box rated for direct contact with insulation.
• Use compatible Triac or ELV dimmers; test dimming range on site to confirm performance.
• Observe wet-location sealing at the ceiling interface in showers or covered outdoor areas.
• If retrofitting a recessed housing, use the NLOPAC-R4REGRECKIT retrofit kit.
• Always follow local code, Title 24 requirements, and manufacturer instructions.

Frequently Asked Questions

Does this fixture need a separate driver?
No. It uses an AC LED engine, so there is no remote driver to mount.

Is the NLOPAC-R4REGT2440W dimmable?
Yes, it is compatible with Triac and ELV dimmers; confirm compatibility and range during installation.

Can I use this in a shower or damp area?
Yes. It is cETLus listed for wet locations, making it suitable for showers and covered outdoor spaces.

Is it compliant with California Title 24 JA8?
Yes. The series is certified to Title 24 JA8-2022 high-efficacy requirements.

Is it safe for closets?
Yes, it is suitable for closet use when installed in accordance with NEC 410.16 clearances and conditions.

What junction boxes are compatible?
Standard 3" or 4" junction boxes and 1/2" deep pancake boxes are supported.

How does the light distribution look?
It provides a wide 118° beam for smooth, uniform ambient lighting with a recessed appearance.

What are the exact lumen and efficacy at 4000K?
Approximately 713 lumens at 10.75W, about 66 lm/W.

Is there a way to retrofit an existing recessed can?
Yes. Use the NLOPAC-R4REGRECKIT retrofit kit to adapt compatible housings.

What is the warranty?
A 5-Year Limited Warranty from Nora Lighting.
