Product Description

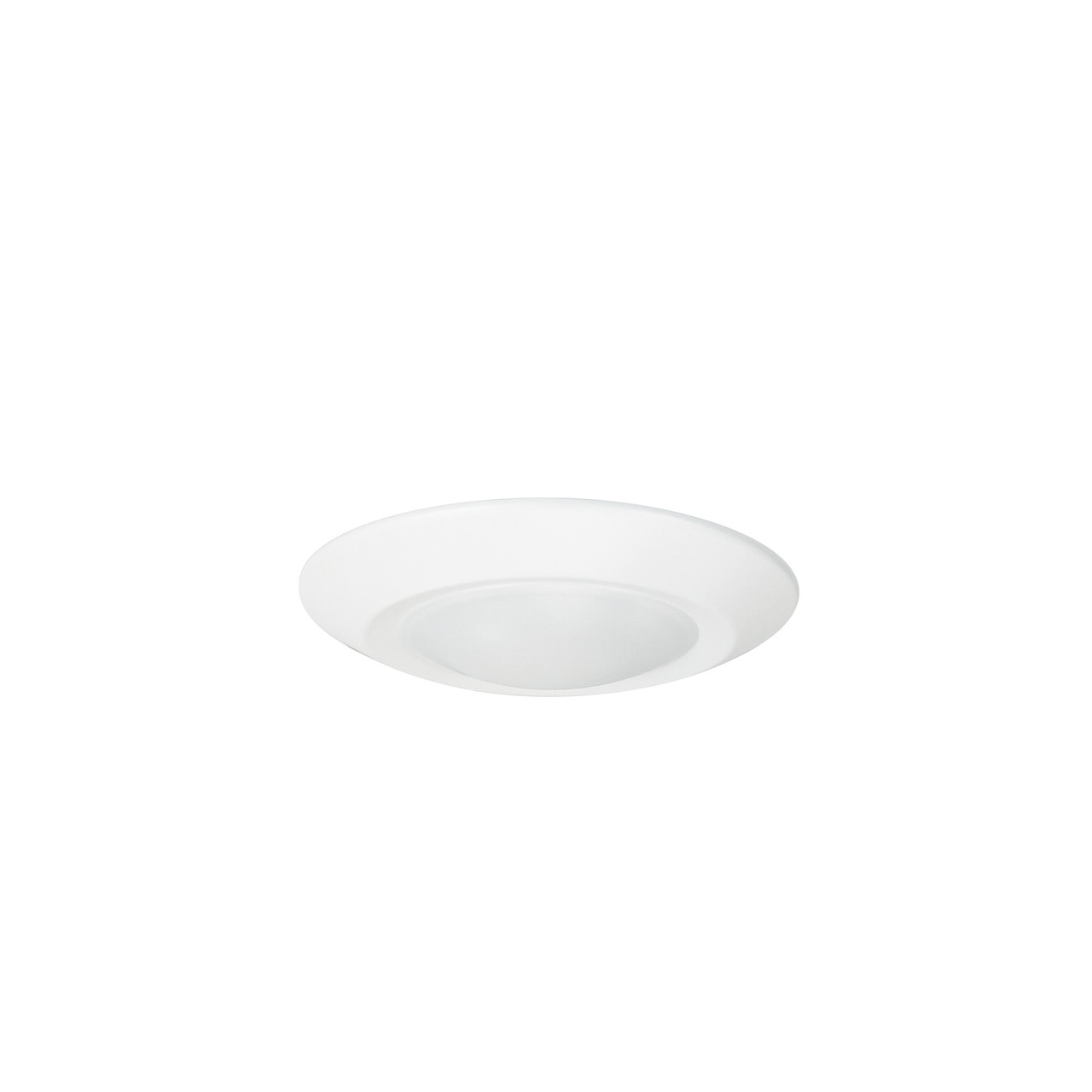

NLOPAC-R4REGT2430W 4" Regressed AC Opal LED Surface Mount combines a recessed aesthetic with the ease of surface mounting. This energy-efficient 700-lumen fixture provides high-quality light output with smooth dimming capabilities, making it ideal for both residential and commercial applications that demand a modern, flush-mounted solution.
Brand: Nora Lighting
Model: NLOPAC-R4REGT2430W
Lumens: 688lm
Wattage: 11W
Color Temperature: 3000K
CRI: 90+
Beam Spread: 118° Wide Flood
Certifications: ENERGY STAR, Title 24 JA8-2022, cETLus Wet Location
Free shipping on orders over $250
Benefits of the NLOPAC-R4REGT2430W LED Fixture
- Recessed look without the complexity of recessed installation
- Surface mount design compatible with standard junction boxes
- High-quality, even illumination with 118° wide flood beam
- Energy-efficient LED technology with 50,000-hour lifespan
Key Features
- Driverless AC LED: Operates directly from 120V input
- High Color Accuracy: 90+ CRI for natural color rendering
- Wet Location Rated: Suitable for bathrooms and covered outdoor use
- Optional Retrofit Kit: Enables mounting in recessed housings
- Dimmable: Triac and ELV dimming support
Specifications
Technical Specs
| Input Voltage | 120V |
| Lumens | 688lm |
| Wattage | 11W |
| Color Temperature | 3000K |
| CRI | 90+ |
| Beam Angle | 118° Wide Flood |
| Operating Temperature | -20°C to 40°C |
| Lifespan | 50,000 hours (L70) |
Physical Specs
| Diameter | 6" |
| Height | 1" |
| Ceiling Cutout | 4-3/8" |
Certifications & Compliance
| Safety Listing | cETLus for Wet Locations |
| Energy Compliance | ENERGY STAR, Title 24 JA8-2022 |
| Warranty | 5-Year Limited |
Ideal Applications
- Bathrooms, hallways, and closets (NEC 410.16 compliant)
- Kitchen ceiling lighting and task areas
- Commercial entryways and corridors
- Retrofit upgrades replacing 4" recessed fixtures
Installation Tips
- Mount directly to 3" or 4" junction boxes or pancake boxes
- Use optional NLOPAC-R4REGRECKIT for recessed housing retrofits
- Ensure junction box is rated for direct insulation contact
- Test dimmer compatibility for Triac or ELV systems
Frequently Asked Questions
Q: What does "regressed" mean in this context?
A: It refers to the LED light source being set back into the trim, mimicking the appearance of a traditional recessed can.
Q: Is this fixture dimmable?
A: Yes, it supports Triac and ELV dimmers for adjustable brightness.
Q: Can I install it in a wet location?
A: Yes, it is listed for wet locations and is suitable for bathrooms or outdoor covered areas.
Q: What accessories are available?
A: The NLOPAC-R4REGRECKIT retrofit kit allows mounting in recessed housings:contentReference[oaicite:0]{index=0}.
Q: Does it comply with California Title 24?
A: Yes, it is JA8-2022 certified for high-efficacy lighting compliance in California.
