Product Description

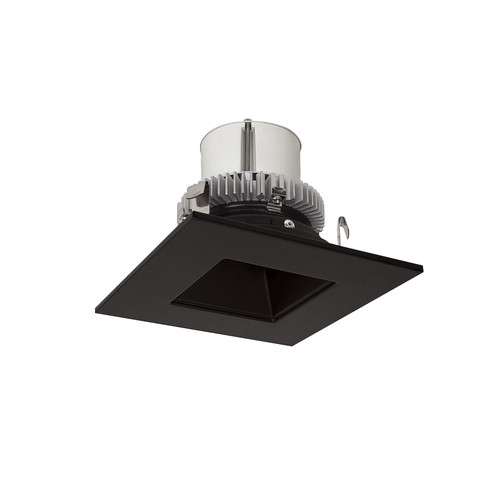

The NLCBC2-45630BB/10 is a high-performance 4" Cobalt Click retrofit from Nora Lighting, featuring a square reflector with square aperture and delivering 1000 lumens at 3000K. This ENERGY STAR certified and wet-location-rated fixture is ideal for upgrading existing 4" recessed housings to modern, energy-efficient LED lighting with a sleek black-on-black finish.
Product: NLCBC2-45630BB/10
Brand: Nora Lighting
Type: 4" Square LED Retrofit Reflector
Output: 1000 lm
Wattage: 12W
Color Temperature: 3000K
Finish: Black / Black
Voltage: 120V
Free shipping on orders over $250
Product Benefits
- 1000 lumens of output from only 12 watts of power
- Retrofit-ready for use in existing 4" housings (IC or Non-IC)
- “Click” trim system allows easy field interchange of finishes
- ENERGY STAR and Title 24 JA8-2022 compliant for energy efficiency and code compliance
Key Features
- Input Voltage: 120V (0-10V/ELV/Triac dimming compatible)
- Color Temperature: 3000K
- Lumen Output: 1000lm
- Power Consumption: 12W
- CRI: 90+
- Mounting: Spring steel blades with medium base adapter (included)
- Rating: Wet Location Listed
- Lifetime: 50,000 hours (L70)
Technical Specifications
| Electrical & Build Details | |
|---|---|
| Construction | Spun aluminum trim, UTM thermal management system |
| Driver | Integrated, driverless AC LED |
| Socket Adapter | Medium base (included), GU24 optional |
| Dimming | Triac / ELV / 0-10V (must specify) |
| Compatible Housings | Most 4" IC and Non-IC housings from Nora and others |
| Compliance | ENERGY STAR, cULus, Title 24 JA8-2022, ASTM-E283 |
Ideal Applications
- High-end residential renovations
- Hospitality and hotel lighting
- Commercial offices and hallways
- Bathrooms and covered outdoor ceilings
Installation Tips
- Use included medium base socket adapter for retrofit installs
- Ensure housing depth allows for 3-1/4" height clearance
- Verify dimmer compatibility via Nora's online chart
- For GU24 housings, use optional NRA-212SM adapter
Frequently Asked Questions
Q: What is the lumen output and wattage of the NLCBC2-45630BB/10?
A: It provides 1000 lumens of output at 12W, delivering high efficacy performance:contentReference[oaicite:0]{index=0}.
Q: Can this be used in wet locations?
A: Yes, this model is cULus listed for wet location use, making it ideal for bathrooms and covered exteriors:contentReference[oaicite:1]{index=1}.
Q: What is the expected lifetime of this retrofit unit?
A: The rated life is 50,000 hours based on L70 testing standards:contentReference[oaicite:2]{index=2}.
Q: Does it include the mounting hardware?
A: Yes, it includes steel spring mounting blades and a medium base screw-in socket adapter:contentReference[oaicite:3]{index=3}.
Q: Is this model ENERGY STAR certified?
A: Yes, although black, bronze, and copper finishes may not be certified per ENERGY STAR listing notes:contentReference[oaicite:4]{index=4}.
