Product Description

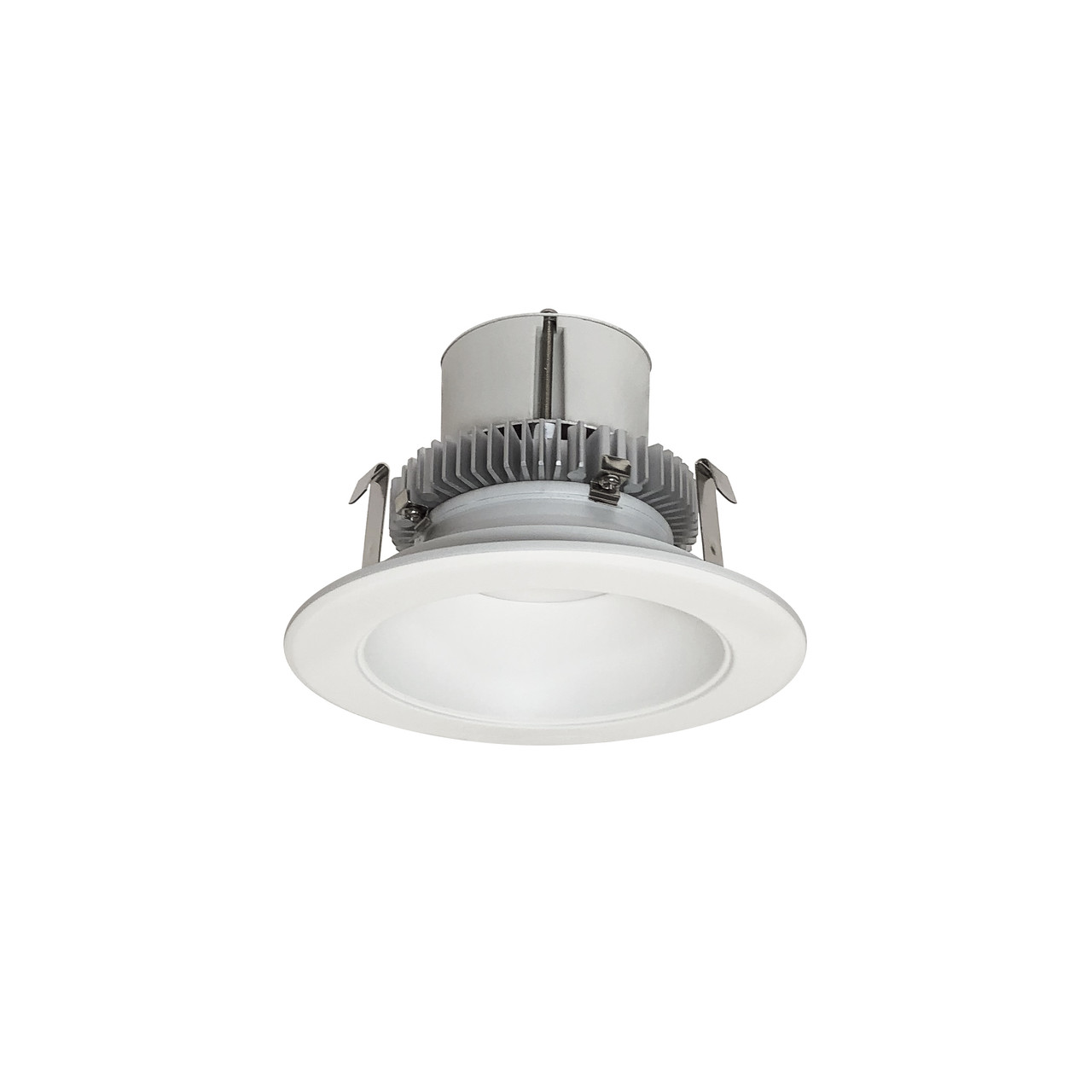

NLCBC2-45130MPW/10 is a 4” LED retrofit reflector by Nora Lighting featuring their patented Cobalt Click system. This high-efficiency downlight outputs 1000 lumens at 3000K and 90+ CRI, delivering brilliant general illumination for residential or commercial ceilings. Matte Powder White finish ensures clean aesthetics and easy integration into any space.
- Lumen Output: 1000 lm
- Power: 12W
- Color Temperature: 3000K
- Finish: Matte Powder White (MPW)
- CRI: 90+
- Voltage: 120V or 120V-277V (must specify)
- Free shipping on orders over $250
Why Choose NLCBC2-45130MPW/10?
- Seamless Retrofit: Designed for easy retrofitting in most 4” IC and Non-IC housings
- Superior Light Quality: Delivers 1000 lumens at 90+ CRI with 3000K color temperature
- Field-Modifiable Trim: Patented Click system allows for tool-free trim replacement
- Wet Location Rated: Ideal for bathrooms, showers, and exterior soffits
Key Features
- LED Engine: Signify COB LED with integrated driver
- Mounting: Steel spring blades for secure fit
- Dimming: Triac/ELV or 0-10V dimming (with LE4 configuration)
- Socket Adapter: Medium base adapter included; GU24 adapter optional
- Warranty: 5-Year Limited Warranty
- Certification: ENERGY STAR, Title 24 JA8-2022, Wet Location Rated:contentReference[oaicite:0]{index=0}
Specifications
Technical Specs
| Lumen Output | 1000 lm |
| Wattage | 12W |
| Efficacy | 81 LPW |
| Color Temperature | 3000K |
| CRI | 90+ |
| Beam Angle | 99° Wide Flood |
Electrical & Dimming
| Voltage | 120V or 120V-277V (must specify) |
| Dimming | Triac / ELV / 0-10V (LE4 option) |
| Operating Temperature | 0°C to 25°C |
| Rated Life | 50,000 hours (L70) |
Application Examples
- Bathrooms and showers
- Commercial corridors and retail ceilings
- Hospitality guest rooms
- Residential kitchen or hallway lighting
Installation Tips
- Insert into existing 4” recessed housing using included medium base adapter
- Use optional GU24 adapter for code-compliant installations
- Secure with steel spring clips for stable fit
- Ensure dimming compatibility if using LE4 or Comfort Dim configurations
Frequently Asked Questions
Q: What type of housing is this compatible with?
A: It's compatible with most 4" IC and Non-IC housings by Nora and others.
Q: Does this product support dimming?
A: Yes, it supports Triac, ELV, and 0-10V dimming (with LE4 driver).
Q: What is the beam angle?
A: This model provides a wide 99° beam for even light distribution.
Q: Can I use this fixture in wet locations?
A: Yes, it is cULus listed for wet locations including showers and soffits.
Q: Is the trim field replaceable?
A: Yes, thanks to Nora’s Click system, trims can be easily swapped in the field.
Q: What does MPW mean?
A: MPW stands for Matte Powder White finish, offering a clean and modern appearance.
