Product Description
NL-4810WW 4" White Baffle Square Trim by Nora Lighting features a precision spun aluminum baffle designed to reduce glare and enhance visual comfort. Its clean square trim and adjustable gimbal ring make it an excellent choice for directional accent lighting in both residential and commercial applications.
- Brand: Nora Lighting
- Model: NL-4810WW
- Trim Style: 4" Square with Round White Baffle
- Finish: White
- Adjustability: Gimbal ring up to 35°
- Compatibility: Line Voltage & Low Voltage housings
- Free shipping on orders over $250
Benefits of the NL-4810WW Trim
- Deep aluminum baffle minimizes aperture glare for better visual comfort
- Clean square trim design complements modern ceiling aesthetics
- Adjustable gimbal ring allows directional lighting up to 35°
- Compatible with a wide range of low and line voltage housings
Key Features
- Material: 0.040" precision spun aluminum baffle
- Mounting: Includes three trim clips for secure installation
- Finish: Non-reflective white painted surface
- Adjustability: Gimbal ring for directional aiming
- Listings: cULus Listed for Damp Locations
Specifications
Physical Specs
| Trim Style | 4" Square with Round Baffle |
| Finish | White |
| Material | Spun aluminum |

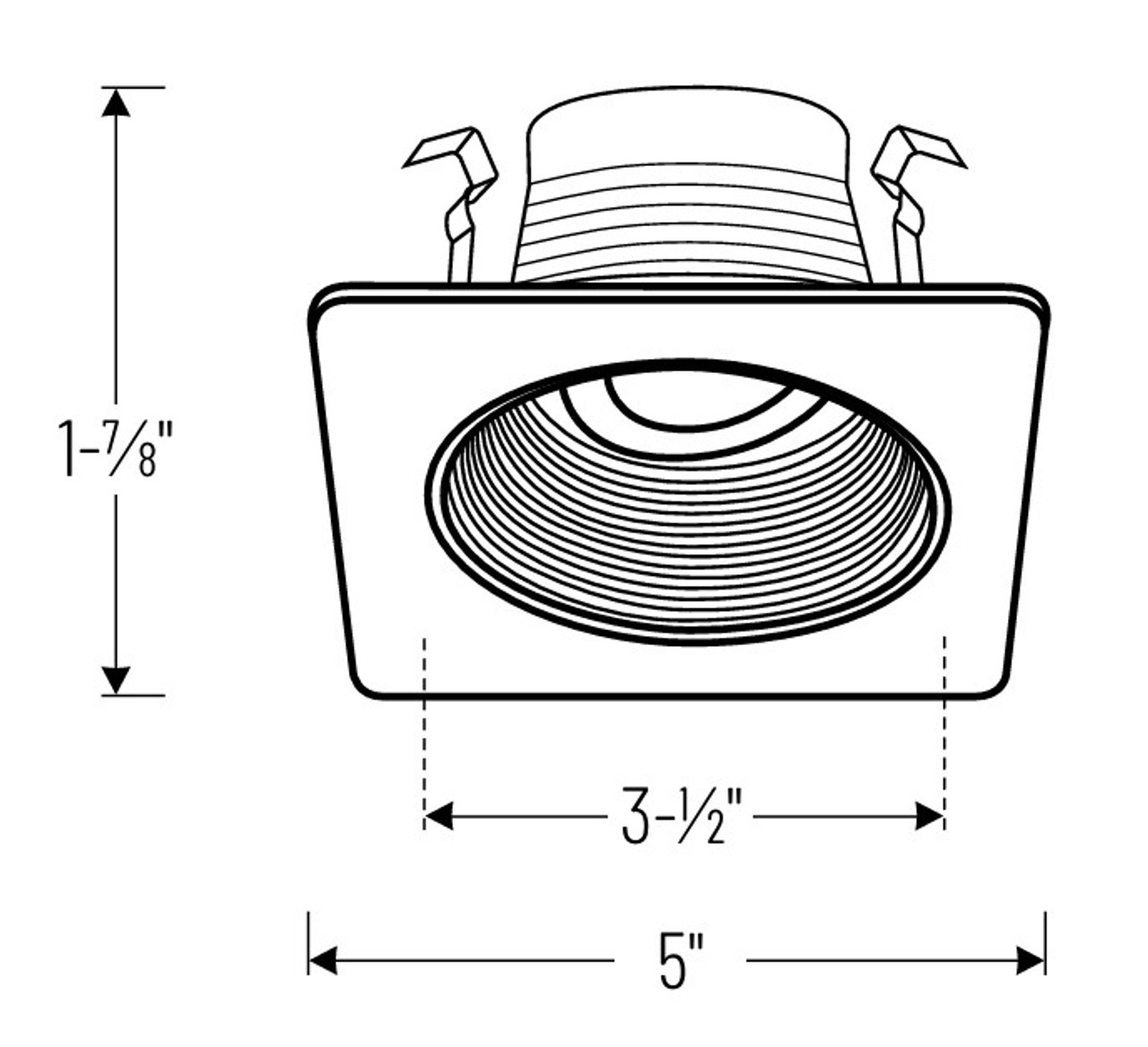

| Dimensions | 5" x 5" (trim), 1-7/8" height, 3-1/2" aperture |
Compatibility
| Voltage Types | Line Voltage and Low Voltage |
| Lamp Type | MR16 (varies by housing) |
| Mounting | Fits select Nora 4" housings (ICAT, non-IC, shallow, remodel, fire-rated) |
Ideal Applications
- Residential accent lighting and downlighting
- Commercial office and retail installations
- Gallery and display lighting
- Bathrooms and damp-rated indoor areas
Installation Tips
- Ensure compatible 4" Nora housing is installed before inserting trim
- Use included trim clips to secure the fixture
- Position gimbal-mounted lamp for targeted illumination
- Choose compatible MR16 wattage based on selected housing
Frequently Asked Questions
Q: What type of housing is compatible with NL-4810WW?
A: It works with a variety of Nora 4" housings including ICAT, non-IC, shallow, and remodel types in both low and line voltage formats:contentReference[oaicite:0]{index=0}.
Q: Can the light direction be adjusted?
A: Yes, the built-in gimbal ring allows the lamp to be tilted up to 35° for directional lighting.
Q: Is this trim suitable for damp locations?
A: Yes, it is cULus listed for use in damp environments when installed with a compatible housing:contentReference[oaicite:1]{index=1}.
Q: What is the baffle made of?
A: The baffle is made of precision spun 0.040" aluminum with deep grooves to reduce glare.
Q: Does this come in other finishes?
A: Yes, it's also available in black (model NL-4810BB).
Q: How does the trim mount into the housing?
A: It includes three spring-loaded trim clips that securely hold it in place.
