Product Description

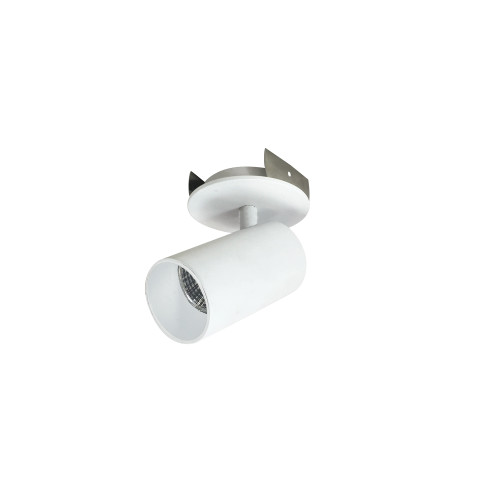

Nora NIOP-2RTC27XMPW 2" iPOINT Monopoint – Round Cone is a compact architectural LED accent that delivers up to 1200 lumens at 90+ CRI in warm 2700K. The iPOINT cone head ships with field-changeable optics and maintains a minimal ceiling profile while requiring a dedicated 2" Iolite housing for power and dimming control.
NIOP-2RTC27XMPW 2" iPOINT Cone Monopoint, 2700K / 90+ CRI
Round cone monopoint head for 2" Iolite housings; up to 1200 lm (varies by optic/CCT), 14W LED source, 90+ CRI, field-changeable optics, minimal canopy.
- Light Output: Up to 1200 lm (spot / narrow flood / flood optics included)
- CCT / CRI: 2700K, 90+ CRI
- Wattage: 14W LED (nominal)
- Dimming: Triac / ELV / 0–10V / Lutron EcoSystem (by housing)
- Listings: ENERGY STAR®, Title 24 JA8-2022, cULus Damp
Free shipping on orders over $250
Benefits
- Designer flexibility: Three included optics (spot, narrow flood, flood) let you fine-tune beams on site without buying extra lenses.
- High color quality: 90+ CRI at 2700K renders finishes and merchandise accurately for retail, residential, and hospitality spaces.
- Minimal profile: Small canopy with 90° tilt / 359° rotation provides precise aiming without visual clutter.
- System-based dimming: Choose the Iolite housing/driver option to match project dimming (Triac, ELV, 0–10V, or Lutron EcoSystem).
Key Features
- Field-changeable optics: 29° spot, 40° narrow flood, 57° flood (pre-installed)
- Dedicated 2" Iolite housing required (IC new construction, Chicago plenum, or IC remodel)
- Die-cast aluminum construction for excellent thermal performance
- Finish: Matte Powder White (MPW) with optional black insert for alternate appearance
- L70 50,000 hours rated life; 5-year limited warranty
Specifications
Technical Specs
| Light Source | 14W LED (COB) |
| Lumen Output | Up to 1200 lm (varies by optic, finish, and CCT) |
| CCT / CRI | 2700K / 90+ CRI |
| Optics Included | 29° Spot; 40° Narrow Flood; 57° Flood |
| Dimming | By housing: Triac / ELV / 0–10V / Lutron Hi-lume EcoSystem |
| Operating Temp | 0–40 °C (ambient) |
| Lifetime | L70 50,000 hours |
Performance Specs
| Adjustability | 90° tilt; 359° rotation |
| Lumen Output Multipliers | 2700K: 0.80×; 3000K: 0.95×; 4000K: 1.00× (apply to nominal values) |
| Beam Options | Spot / Narrow Flood / Flood (field changeable) |
Physical Specs
| Construction | Die-cast aluminum head with friction blades for secure mounting to housing |
| Finish | MPW — Matte Powder White (black insert included) |

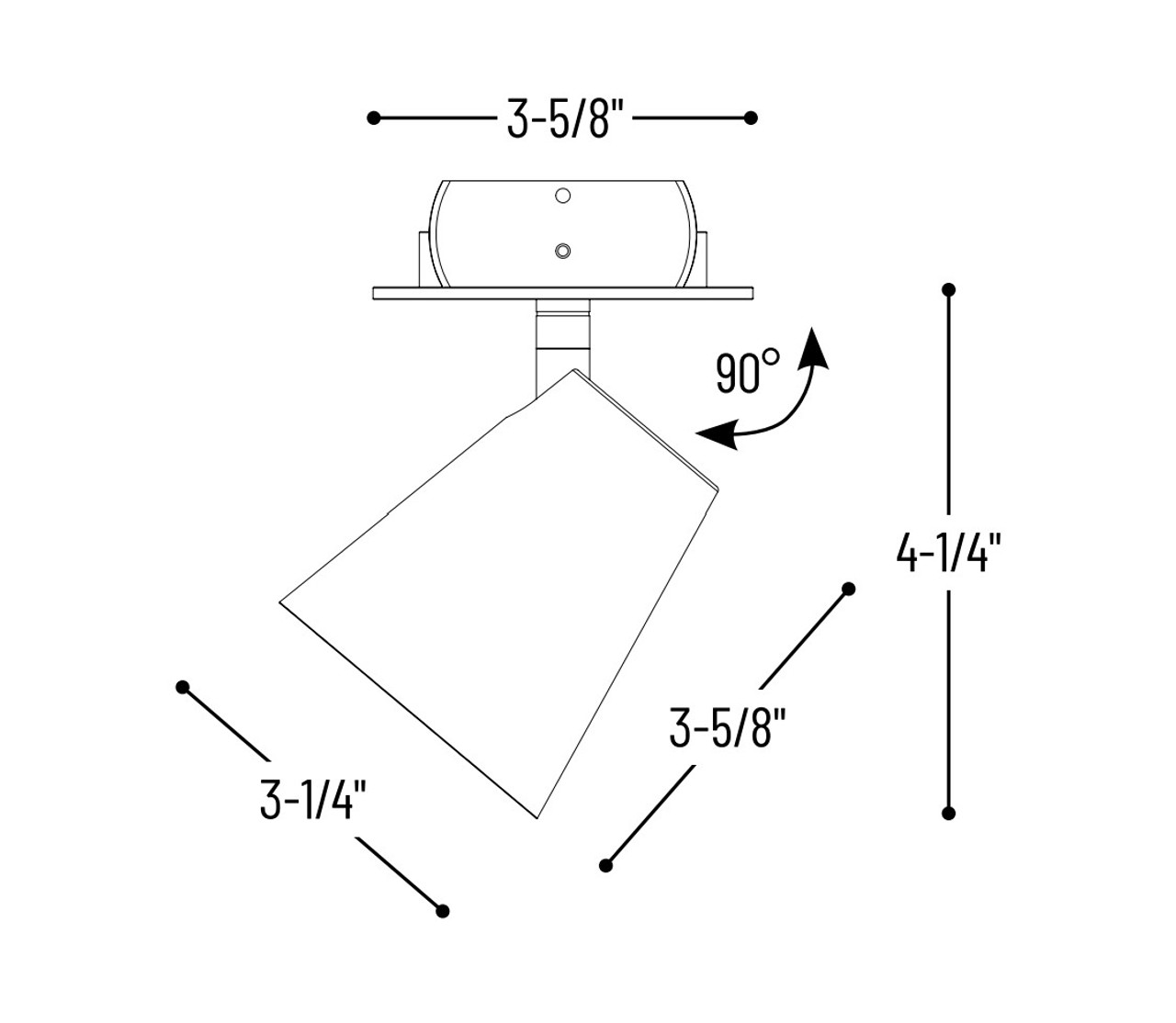

| Representative Dimensions | Approx. canopy Ø 3-5/8"; head Ø 3-1/4"; overall height ~4-1/4" |
Compliance & Safety
| Listings | cULus Listed for Damp Location; ENERGY STAR® certified; Title 24 JA8-2022 high-efficacy |
| Warranty | 5-Year Limited Warranty |
Compatible 2" Iolite Housings (Required)
| NHIOICD-28 | 2" IC Air-Tight New Construction (LE3/LE4/LUPEQ driver options) |
| NHIOICDCP-28 | 2" Chicago Plenum New Construction |
| NHRIOIC-28 | 2" IC Air-Tight Remodel |
Application Examples
- Retail and hospitality accent lighting for merchandise, art, and architectural details
- Residential task and accent zones: kitchens, living rooms, niches, and hallways
- Gallery, boutique, and café installations needing small canopy aesthetics
- Projects requiring Title 24 JA8 and ENERGY STAR compliance
Installation Tips
- Select the housing first: Choose NHIOICD-28 (IC new construction), NHIOICDCP-28 (Chicago plenum), or NHRIOIC-28 (IC remodel) with the driver/dimming you need.
- Mounting: Insert the luminaire’s friction blades into the Iolite housing for a secure fit; aim using 90° tilt and 359° rotation.
- Optics: Start with the pre-installed flood; swap to narrow flood or spot to tighten the beam on site.
- Thermal & environment: Operate within 0–40 °C ambient; indoor/damp locations unless used with a compatible wet-rated reflector.
- Finish options: MPW ships with a black insert to change the visual appearance if desired.
Frequently Asked Questions
Does the iPOINT cone require a separate housing?
Yes. iPOINT luminaires are powered by Nora’s 2" Iolite housings; select IC new construction, Chicago plenum, or IC remodel as needed.
What dimming options are available?
Dimming is determined by the housing/driver choice—Triac, ELV, 0–10V, or Lutron Hi-lume EcoSystem are available.
How many beam spreads are included?
Three. Spot (29°), narrow flood (40°), and flood (57°) optics are included and can be changed in the field.
What is the light quality?
90+ CRI at 2700K for natural color rendering; lumen output depends on optic and CCT.
Is it Title 24 compliant?
Yes—certified to the high-efficacy requirements of California Title 24 JA8-2022 and ENERGY STAR certified.
Where can it be installed?
Indoor/damp locations. Use in retail, hospitality, galleries, and residential spaces where a small, adjustable accent is desired.
What are the aiming capabilities?
The head tilts up to 90° and rotates 359° for precise aiming.
What’s included with the MPW version?
Matte Powder White finish with a black insert for an alternate visual look, plus the three interchangeable optics.
