Product Description

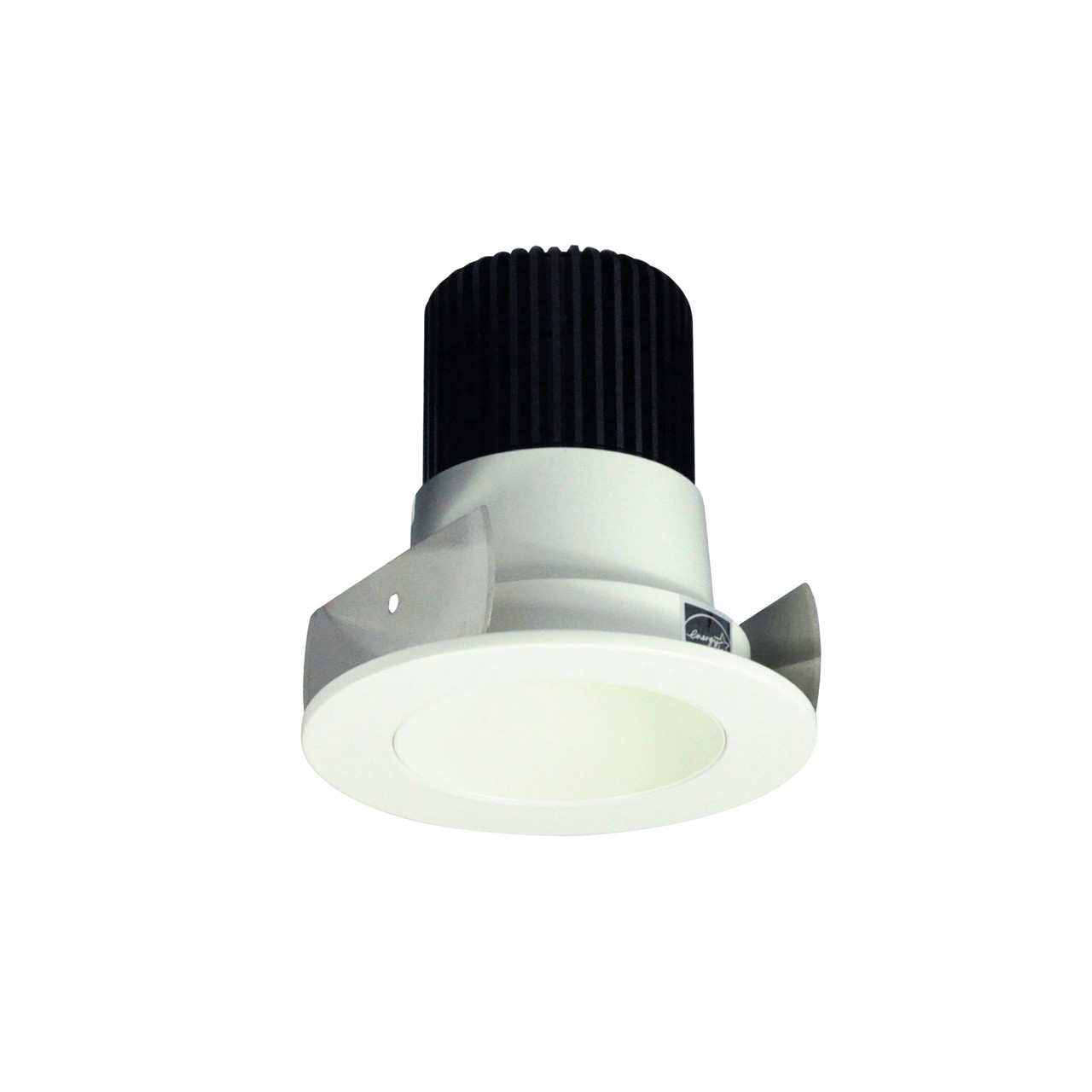

NIOB-2RNDC30XMPW/10 2" Iolite LED Round Reflector from Nora Lighting delivers a quiet, architectural look with deep-regressed optics and 90+ CRI. This 1000-lumen, 14W module in 3000K uses a dedicated Iolite housing and includes field-changeable spot, narrow flood, and flood optics for precise beam control.
At-a-Glance
- Lumen Output: 1000 lm nominal (tested ~1068–1105 lm @ 3000K depending on optic)
- Wattage: 14W nominal (tested ~13.8W)
- CCT: 3000K (series options: 2700K / 3000K / 3500K / 4000K / 5000K)
- CRI: 90+
- Optics: Spot 25° • Narrow Flood 35° • Flood 50° (all included)
- Housing: Dedicated Iolite (new construction ICAT, remodel ICAT, or Chicago plenum)
- Listings: ENERGY STAR®, cULus Wet Location, Title 24 JA8-2022, RoHS
- Warranty: 5-Year Limited
Free shipping on orders over $250
Product Benefits
- Low-glare, architectural appearance: deep regressed cone enhances visual comfort.
- On-site beam flexibility: swap spot, narrow flood, or flood optics without tools beyond module removal.
- Reliable color quality: 90+ CRI across CCT options for accurate finishes and merchandise.
- Wet-location & energy compliant: JA8-2022, ENERGY STAR, and RoHS for code-driven projects.
Key Features
- Finish: MPW – Matte Powder White reflector and flange
- Construction: die-cast aluminum trim with threaded heat sink for efficient thermal transfer
- Mounting: friction blades secure the trim to the Iolite housing
- Accessories: accepts one hex louver plus one decorative collar or snoot; flush-mount mud ring available
- Lumen packages: 800 / 1000 / 1500 / 2000 / 2500 lm (this model is 1000 lm)
Specifications
Technical Specs
| System Type | Dedicated Iolite LED downlight (trim + module; housing required) |
| Voltage & Dimming | Specified by selected Iolite housing |
| Operating Temperature | 0–40 °C |
| Lifetime | 50,000 hours (L70) |
| CRI | 90+ |
Physical Specs
| Outside Diameter | ≈3-5/8" |
| Aperture | ≈2-1/4" |
| Finish | Matte Powder White (MPW) |
| Mounting | Friction blades to Iolite housing |
| Housing Requirement | NHIOICD-28 (ICAT new construction), NHRIOIC-28 (ICAT remodel), or NHIOICDCP-28 (Chicago Plenum) |
Performance Specs
| Lumen Output (3000K) | Spot 1105 lm • Narrow Flood 1088 lm • Flood 1068 lm |
| Wattage | ~13.8W measured (14W nominal) |
| Efficacy | ~77–80 lm/W (optic-dependent) |
| Beam Angles | Spot 25° • Narrow Flood 35° • Flood 50° |
| CCT Options (Series) | 2700K / 3000K / 3500K / 4000K / 5000K |
Compliance & Safety
| Wet Location | cULus Listed |
| ENERGY STAR | Certified |
| Title 24 JA8-2022 | Certified (high-efficacy) |
| RoHS | Compliant |
| Warranty | 5-Year Limited |
Application Examples
- Retail, hospitality, and galleries requiring low-glare accent lighting
- Residential kitchens, living rooms, and corridors with coordinated MPW finish
- Multipurpose spaces needing field-changeable beams for layout flexibility
- Bathrooms and covered areas where wet location listing is advantageous
Installation Tips
- Select the correct housing: NHIOICD-28 (ICAT new construction), NHRIOIC-28 (ICAT remodel), or NHIOICDCP-28 (Chicago Plenum) for 800–1000 lm models.
- To change beam spread, remove the LED module from the trim, swap the optic (25°/35°/50°), and reinstall.
- Accessory stacking: fixture supports one hex louver plus one collar/snoot at a time.
- For a trimless look, use the NIO-FMMR-2R flush-mount mud ring with new construction housings.
- Confirm dimming method and voltage via the selected housing; follow all local electrical codes.
Frequently Asked Questions
Does this trim work without a housing?
No. All 2" Iolite modules require a dedicated Iolite housing (new construction, remodel, or Chicago plenum).
What beam options are included?
Three optics are included: 25° Spot, 35° Narrow Flood, and 50° Flood.
Is this model really 1000 lumens?
Yes. It’s the 1000 lm package; photometric tests at 3000K show ~1068–1105 lm depending on the optic used.
Is it wet-location listed?
Yes. The trim/module is cULus listed for wet locations when installed per instructions.
How is it dimmed?
Dimming type and voltage are determined by the selected Iolite housing; choose the housing to match your control system.
Can I add accessories?
Yes. It accepts a hex louver and a translucent decorative collar (AM/BLU/FR/R) or an opaque snoot (MPW/WH).
Is there a trimless option?
Use the NIO-FMMR-2R flush-mount mud ring with new construction housings to create a trimless appearance.
What other lumen packages are available?
The Iolite family offers 800, 1000, 1500, 2000, and 2500 lm options for consistent aesthetics across outputs.
