Product Description

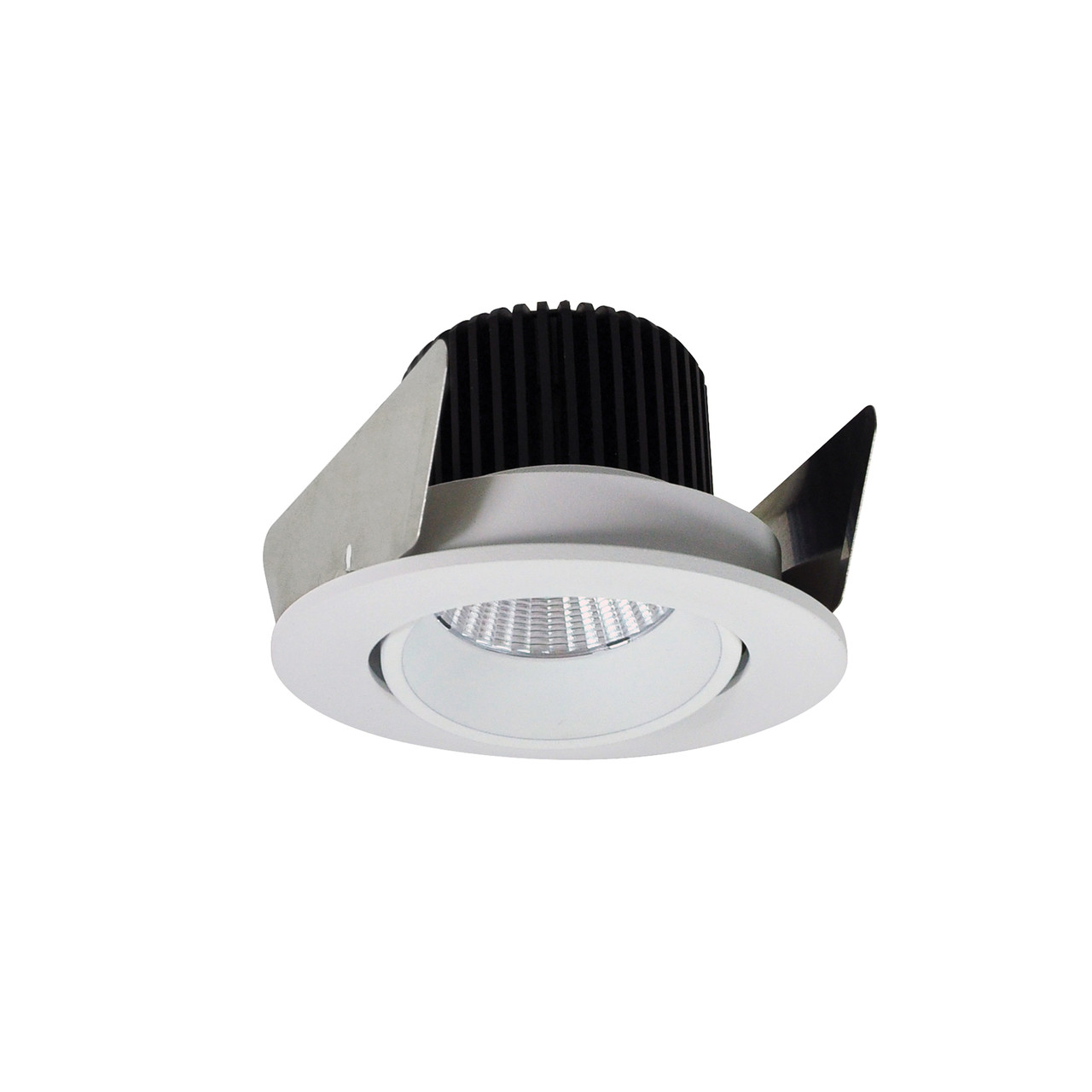

NIOB-2RC27XWW/10 2" Iolite LED Round Adjustable Cone Reflector 1000LM / 14W 2700K is a Nora Lighting 2" Iolite module with a round, adjustable cone reflector designed for dedicated Iolite housings. It delivers up to 1000 lumens at 2700K with 90+ CRI, and includes field-changeable optics for spot, narrow flood, or flood distributions.
Quick Summary
- Model: NIOB-2RC27XWW/10
- Series: Iolite 2" Round Adjustable Cone (WW = White/White finish)
- Lumen / Wattage: 1000lm / 14W
- CCT / CRI: 2700K, 90+ CRI
- Optics included: Spot, Narrow Flood, Flood (field-changeable)
- Listings: cULus Damp, ENERGY STAR, Title 24 JA8-2022
- Free shipping on orders over $250
Product Benefits
- Flexible beam control with included spot, narrow flood, and flood optics for on-site tuning.
- Color-accurate 2700K output (90+ CRI) for warm, residential-grade ambiance.
- Clean, low-glare appearance from die-cast adjustable cone and optimized cutoff.
- System-matched reliability with dedicated Iolite housings for smooth dimming and longevity.
Key Features
- 2" Iolite round adjustable cone: die-cast aluminum reflector and threaded heat sink.
- 1000lm / 14W package: efficient performance with long L70 50,000-hour life.
- Field-changeable optics: swap beam spreads on site; premium TIR options available.
- Adjustability: up to 30° aim in new-construction housings (15° in remodel).
- Finish: WW (White reflector / White flange) for a seamless ceiling look.
- Title 24 JA8-2022 compliant and ENERGY STAR certified.
Specifications
| Technical Specs | Details |
|---|---|
| Lumen Output | 1000 lumens (factory package /10) |
| Wattage | 14W |
| CCT | 2700K |
| CRI | 90+ |
| Lifetime | 50,000 hours (L70) |
| Dimming | Specified by compatible Iolite housing (Triac / ELV / 0–10V depending on housing) |
| Physical Specs | Details |
|---|---|
| Construction | Die-cast aluminum reflector; threaded die-cast heat sink |
| Mounting | Friction blades secure to Iolite housing |
| Adjustability | Up to 30° aim (NC housings); 15° (remodel) |
| Finish | WW — White reflector / White flange |
| Environment | cULus Damp Listed |
| Performance & Listings | Details |
|---|---|
| Beam Options | Spot / Narrow Flood / Flood optics included (field-changeable) |
| Certifications | ENERGY STAR; Title 24 JA8-2022; RoHS |
| Warranty | 5-Year Limited |
| Compatible Housings | NHIOICD-28 (ICAT NC), NHIOICDCP-28 (Chicago Plenum), NHRIOIC-28 (ICAT Remodel) |
Application Examples
- Premium residential areas (kitchens, living rooms) needing warm 2700K presentation.
- Hospitality and retail accenting with on-site beam spread selection.
- Corridors or small spaces where a 2" aperture and low glare are preferred.
Installation Tips
- Pair only with dedicated Iolite housings (see compatible models above) for proper dimming and aiming.
- Choose the included optic that best fits the task; swap optics by removing the LED module from the reflector.
- For maximum aiming (up to 30°), use new-construction housings; remodel versions allow up to 15°.
- Confirm local energy code requirements (e.g., Title 24 JA8) and select appropriate housing/dimmer.
Frequently Asked Questions
Q: What comes with NIOB-2RC27XWW/10?
A: The 2" Iolite round adjustable cone module in white/white finish and three field-changeable optics (spot, narrow flood, flood).
Q: Is the module dimmable?
A: Yes—dimming is determined by the selected Iolite housing (Triac, ELV, or 0–10V).
Q: What aiming range is available?
A: Up to 30° in new-construction housings and 15° in remodel housings.
Q: Is it Title 24 compliant?
A: Yes, it is certified to JA8-2022 high-efficacy requirements when used as specified.
Q: Which housings should I order?
A: For 800–1000lm (14W) packages, choose NHIOICD-28 (ICAT NC), NHIOICDCP-28 (Chicago Plenum), or NHRIOIC-28 (ICAT Remodel).
Q: Can I add accessories?
A: Yes—hex louver, translucent decorative collars, opaque snoot, and flush-mount mud ring are available.
