Product Description

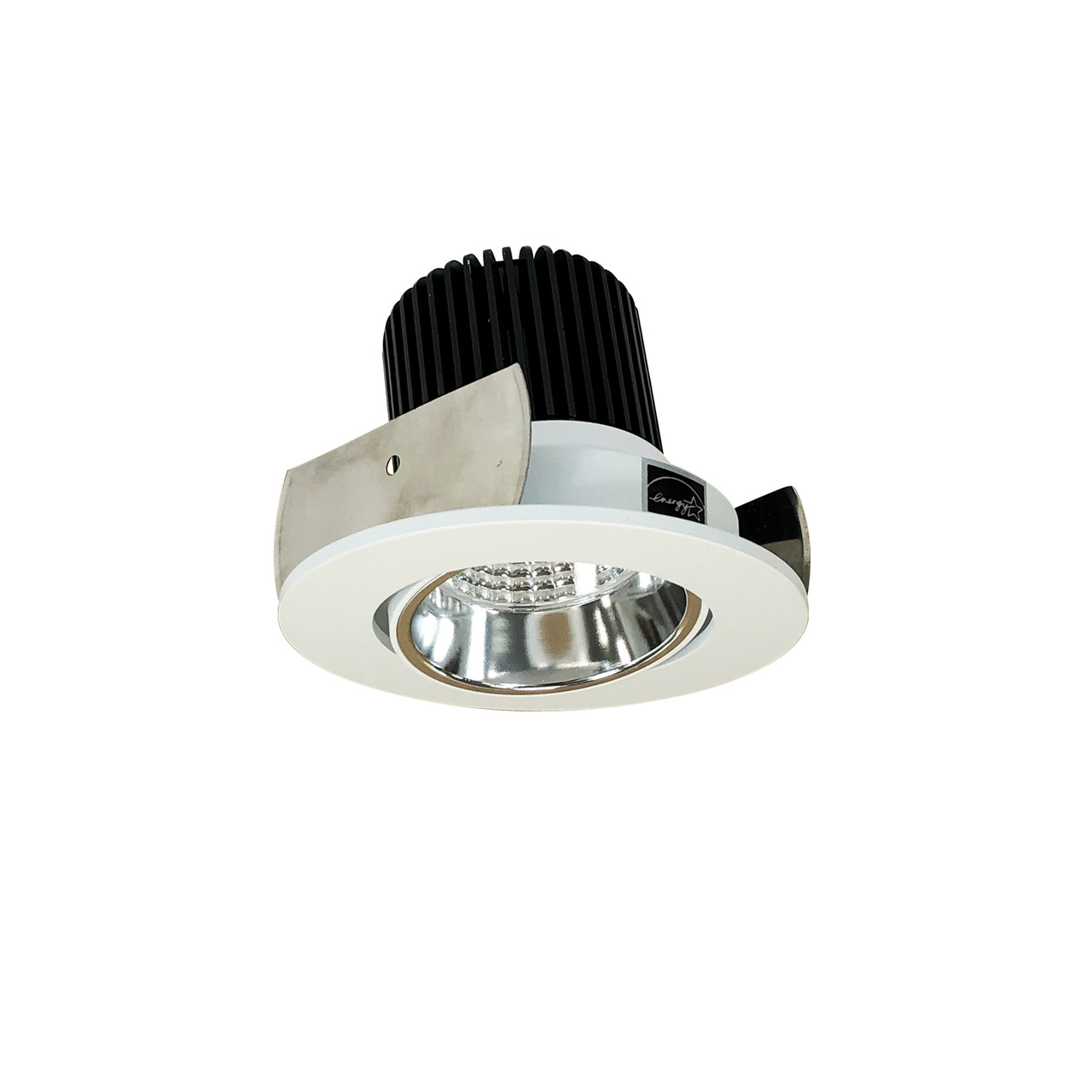

NIOB-2RC27XCMPW/10 2" Iolite LED Round Adjustable Cone Reflector 1000LM / 14W 2700K by Nora Lighting delivers high-performance directional lighting in a compact, architectural-grade design. Featuring a regressed cone reflector and a matte powder white finish with specular clear interior, this 2" downlight offers excellent glare control and energy efficiency with 1000 lumens at just 14 watts. Ideal for commercial, hospitality, or residential applications, it is compatible with Nora’s IC-rated housings and field-changeable optics.
Nora Lighting
Lumens: 1000 lm
Wattage: 14W
Color Temperature: 2700K
Finish: Specular Clear / Matte Powder White
Beam Options: Spot, Narrow Flood, Flood (included)
CRI: 90+
Listing: cULus, ENERGY STAR, Title 24 JA8-2022
Free shipping on orders over $250
Benefits
- Delivers efficient 1000 lumen output from a compact 2" aperture
- Regressed cone design minimizes glare and enhances visual comfort
- Interchangeable optics (spot, narrow flood, flood) included for flexible distribution
- Compatible with IC-rated new construction and remodel housings
Key Features
- LED Output: 1000lm at 14W for high efficacy
- Color Temperature: 2700K with 90+ CRI for accurate color rendering
- Finish: Specular clear reflector with matte powder white flange (CMPW)
- Field Adjustable: 30° tilt for new construction / 15° for remodel housings
- Long Lifespan: 50,000 hours rated life (L70)
- Compatible Optics: Includes spot (28°), narrow flood (36°), and flood (47°) lenses:contentReference[oaicite:0]{index=0}
Technical Specifications
| Performance Specs | |
|---|---|
| Light Output | 1000 Lumens |
| Wattage | 14W |
| Color Temperature | 2700K |
| CRI | 90+ |
| Lifetime | 50,000 hours (L70) |
| Electrical & Dimming | |
|---|---|
| Input Voltage | Determined by housing |
| Dimming | Varies by housing (Triac / ELV / 0-10V options) |
| Construction & Mounting | |
|---|---|
| Material | Die-cast aluminum reflector and heat sink |
| Adjustability | 30° tilt (new construction), 15° (remodel) |
| Mounting | Friction blades for secure fit |
| Certifications | |
|---|---|
| Listing | cULus Damp Location |
| Energy Compliance | ENERGY STAR, Title 24 JA8-2022 |
| Warranty | 5-Year Limited |
Application Examples
- Commercial interiors and conference rooms
- High-end residential kitchens and bathrooms
- Retail store accent lighting
- Hospitality lobbies and corridors
Installation Tips
- Ensure compatibility with Nora Iolite 800-1000lm housings (e.g., NHIOICD-28)
- Select beam optic based on coverage and ceiling height
- Position reflector tilt prior to ceiling closure
- Use flush mount mud ring (optional) for trimless appearance
Frequently Asked Questions
Q: What beam angles are included with this model?
A: It includes spot (28°), narrow flood (36°), and flood (47°) optics for flexible lighting applications:contentReference[oaicite:1]{index=1}.
Q: Is this fixture compatible with dimmers?
A: Yes, dimming depends on the housing used. Triac, ELV, and 0-10V options are available based on selected housing:contentReference[oaicite:2]{index=2}.
Q: Can this be used in damp environments?
A: Yes, it is cULus listed for damp location installations such as bathrooms and kitchens:contentReference[oaicite:3]{index=3}.
Q: Does this model support flush mount installation?
A: Yes, a flush mount mud ring (NIO-FMMR-2R) is available for use with new construction housings:contentReference[oaicite:4]{index=4}.
Q: What color temperatures are offered?
A: Options include 2700K, 3000K, 3500K, 4000K, and 5000K. This model is 2700K:contentReference[oaicite:5]{index=5}.
Q: Are there any decorative or functional accessories?
A: Yes, hex louver, translucent collars, and opaque snoots can be added without accessory holders:contentReference[oaicite:6]{index=6}.
Q: What housing is required for this fixture?
A: It requires compatible Iolite housings such as NHIOICD-28, NHIOICDCP-28, or NHRIOIC-28:contentReference[oaicite:7]{index=7}.
