Product Description

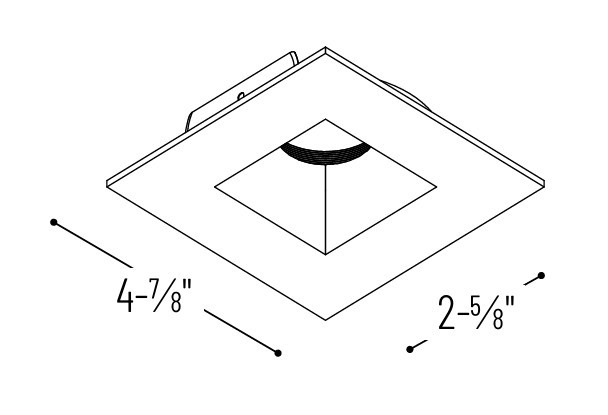

NIO-4SNDSQ30XMPW/10 4" Iolite LED Square Reflector with Square Aperture from Nora Lighting provides elegant recessed lighting with 1000 lumen output at just 14 watts. Designed for use with dedicated Iolite housings, this fixture offers precise beam control via field-changeable optics and delivers consistent, warm 3000K illumination. Its matte powder white finish and die-cast aluminum construction make it ideal for high-end residential, commercial, or hospitality applications.
Product Name: NIO-4SNDSQ30XMPW/10 4" Iolite LED Square Reflector
Brand: Nora Lighting
Lumens: 1000lm
Wattage: 14W
Color Temperature: 3000K
CRI: 90+
Beam Options: Spot, Narrow Flood, Flood (field changeable)
Finish: Matte Powder White
Housing Requirement: Iolite Series ICAT / Remodel Housings
Free shipping on orders over $250
Product Benefits
- Architectural square aperture with deep regressed cone for glare reduction
- Includes 3 beam optics – Spot, Narrow Flood, and Flood (field swappable)
- Long-life LED rated at 50,000 hours with high 90+ CRI for excellent color rendering
- ENERGY STAR and Title 24 JA8-2022 certified for energy-efficient installations
Key Features
- 1000 lumen output from 14W LED module
- 3000K warm white color temperature for ambient comfort
- Die-cast aluminum trim and heat sink for thermal stability
- Matte Powder White finish blends with modern ceiling palettes
- Field changeable optics for flexible beam adjustment
Specifications
| Technical Specs | |
|---|---|
| Input Wattage | 14W |
| Lumen Output | 1000lm (up to 1184lm max) |
| Color Temperature | 3000K |
| CRI | 90+ |
| Beam Spreads | 25° Spot, 37° Narrow Flood, 55° Flood |
| Finish | Matte Powder White |
| Operating Life | 50,000 hours @ L70 |
| Compliance & Safety | |
|---|---|
| Certifications | cULus, ENERGY STAR, RoHS |
| Location Rating | Wet Location |
| Title 24 | JA8-2022 Compliant |
| Warranty | 5-Year Limited |
Application Examples
- Commercial office or retail recessed lighting
- Hospitality spaces needing uniform downlighting
- High-end residential kitchens and hallways
- Wet-rated areas such as bathrooms or covered patios
Installation Tips
- Requires compatible Nora Iolite housing (e.g. NHIOICD-48, NHRIOIC-48)
- Trim secures via friction blades—no tools needed
- Optics may be swapped in field to change beam angle
- Flush mount option available with NIO-FMMR-4S mud ring
Frequently Asked Questions
Is this fixture dimmable?
Yes, dimming is specified by the housing used. Most Iolite housings support Triac or ELV dimming.
Can I change the beam spread after installation?
Yes, the reflector includes spot, narrow flood, and flood optics that can be field-swapped as needed:contentReference[oaicite:0]{index=0}.
Is this rated for wet locations?
Yes, it is cULus listed for use in wet environments, making it suitable for bathrooms or outdoor soffits:contentReference[oaicite:1]{index=1}.
Does it include a housing?
No, this listing is for the trim only. Pair with Nora Iolite IC or remodel housing for a complete system.
What is the difference between this and the 800lm version?
The 1000lm version operates at the same 14W but delivers higher lumen output and is ideal for applications needing more brightness:contentReference[oaicite:2]{index=2}.
