Product Description

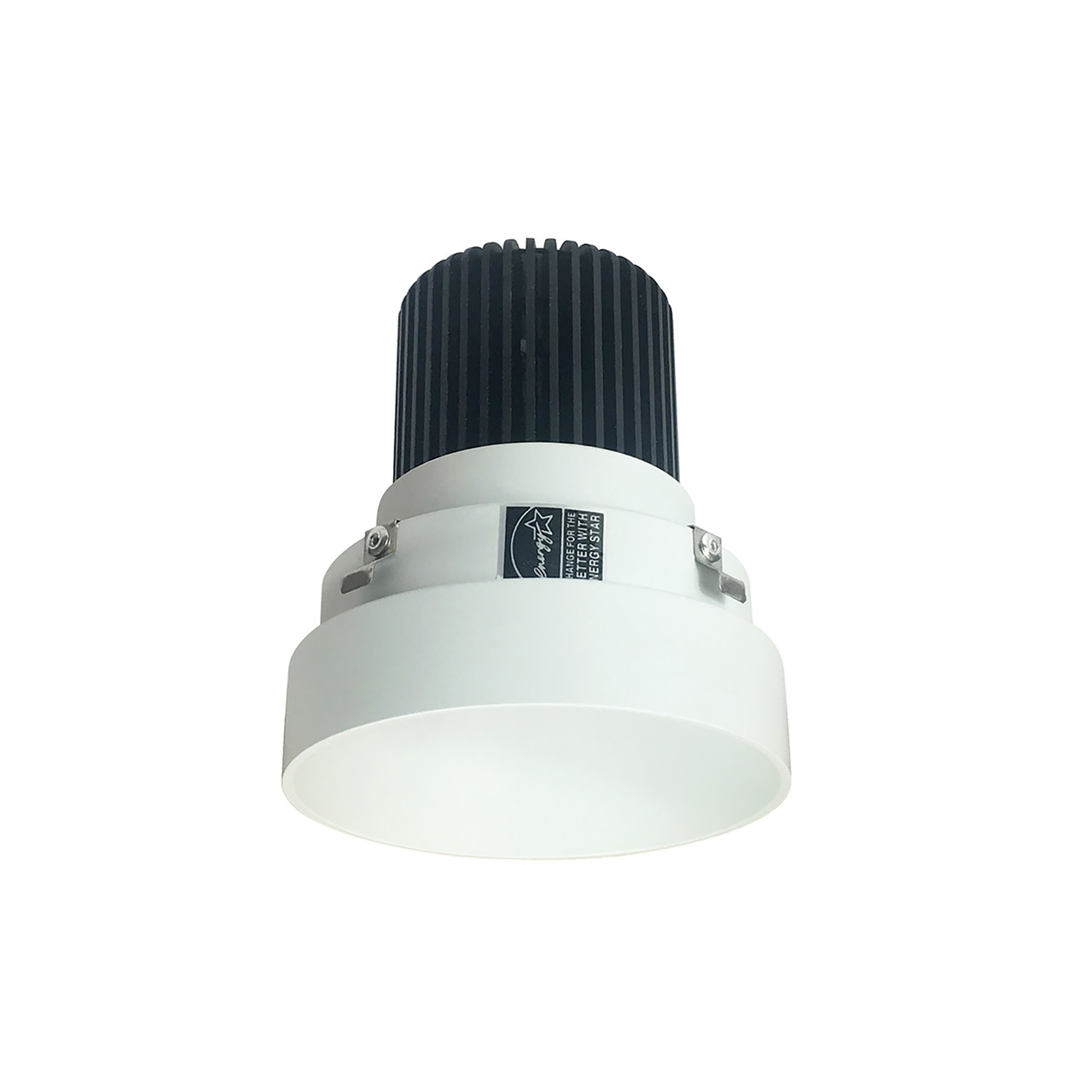

The NIO-4RTLNDC30XMPW/10 4" Iolite LED Round Trimless Downlight 1000LM / 14W 3000K Matte Powder White is a modern lighting solution designed for seamless integration into ceilings without exposed trim. Ideal for new construction applications, this downlight features deep regressed cone reflectors for reduced glare and optimized visual comfort.
Key Features
- Trimless design with no exposed flange, blending seamlessly into the ceiling.
- Delivers up to 1000 lumens with a 14W LED module.
- 3000K color temperature and 90+ CRI for superior color rendering.
- Includes field-changeable optics for spot, narrow flood, and flood beam spreads.
- Constructed with heat-dissipating die-cast aluminum for durability and thermal management.
- Requires trimless mud ring and compatible new construction housing.
- ENERGY STAR certified and compliant with California Title 24 JA8-2022 standards.
- cULus Listed for wet locations, suitable for bathrooms and covered outdoor areas.
Specifications
- Lumen Output: 1000 lumens
- Wattage: 14W
- Color Temperature: 3000K
- Color Rendering Index (CRI): 90+
- Lifetime: 50,000 hours at L70
- Optics: Spot, Narrow Flood, and Flood (included)
- Certifications: cULus Listed, ENERGY STAR certified, Title 24 JA8 compliant
Installation Tips
- Ensure compatibility with Nora Lighting’s NHIOICD-48 or NHIOICDCP-48 new construction housings.
- Install a trimless mud ring after the drywall and before applying finishing materials.
- Use stainless steel friction clips to securely mount the luminaire to the mud ring.
- Test connections using the quick-connect socket for optimal performance.
Frequently Asked Questions
Q: What makes this downlight trimless?
A: The trimless design has no exposed flange, creating a minimalist appearance that blends seamlessly with the ceiling.
Q: Is this downlight suitable for wet locations?
A: Yes, it is cULus Listed for wet locations, making it ideal for bathrooms and covered outdoor areas.
Q: Can I change the optics of this downlight?
A: Yes, it includes field-changeable optics for spot, narrow flood, and flood distributions.
Q: What housings are compatible with this downlight?
A: It is compatible with Nora Lighting’s NHIOICD-48 and NHIOICDCP-48 new construction housings.
Q: Does this downlight require additional accessories?
A: Yes, a trimless mud ring is required for installation.
