Product Description

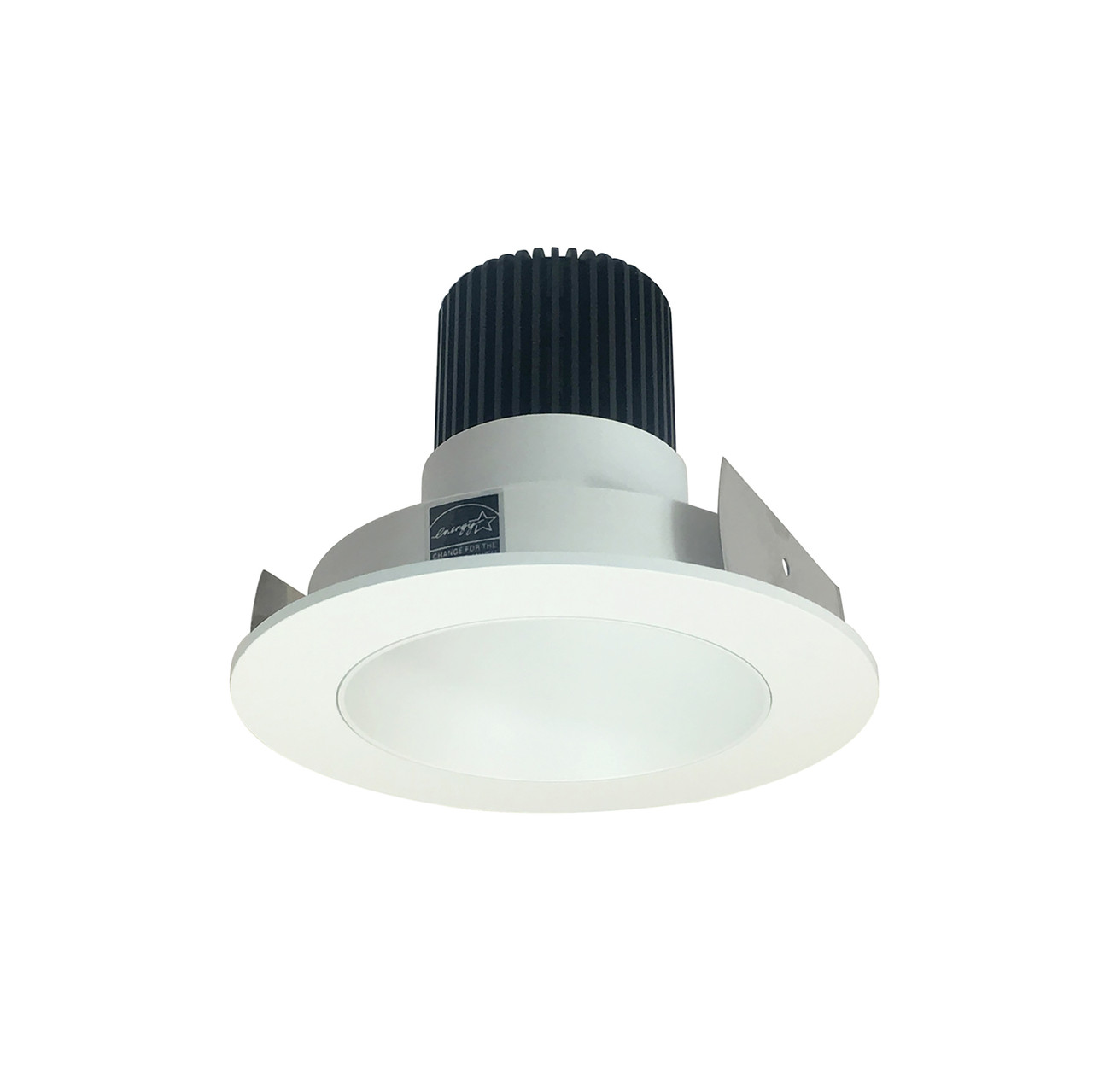

NIO-4RNDC30XMPW/10 is a 4" Iolite Series LED Round Reflector by Nora Lighting, designed for clean, architectural-grade illumination. With 1000 lumens of output at 3000K and a deep regressed reflector, this fixture delivers visual comfort and high efficacy in new construction or remodel applications. Compatible with dedicated Iolite housings, this ENERGY STAR® certified and Title 24 JA8-2022 compliant module offers flexible installation with included field-changeable optics.
Brand: Nora Lighting
Model: NIO-4RNDC30XMPW/10
Lumen Output: 1000 Lumens
Wattage: 14W
Color Temperature: 3000K
CRI: 90+
Voltage: 120V / 277V (based on housing)
Dimming: Specified by housing (Triac / ELV / 0-10V)
Finish: Matte Powder White Reflector / Flange
Free shipping on orders over $250
Product Benefits
- Delivers 1000 lumens with 90+ CRI for accurate color rendering
- Compatible with Nora Iolite housings for new construction or remodel
- Deep regressed optics reduce glare and enhance beam control
- ENERGY STAR and Title 24 JA8-2022 compliant for high-efficacy installs
Key Features
- Field-Changeable Optics: Spot, narrow flood, and flood optics included for beam customization
- Construction: Die-cast aluminum trim and heat sink for optimal thermal performance
- Mounting: Friction blades for secure mounting into dedicated housings
- Lifetime: 50,000 hours at L70 for long-lasting performance
Specifications
Technical Specs
| Input Voltage | 120V / 277V (via compatible housing) |
| Wattage | 14W |
| Lumen Output | 1000lm |
| Color Temperature | 3000K |
| CRI | 90+ |
| Beam Options | 27° Spot, 41° Narrow Flood, 60° Flood |
| Dimming | Varies by housing (Triac, ELV, 0-10V) |

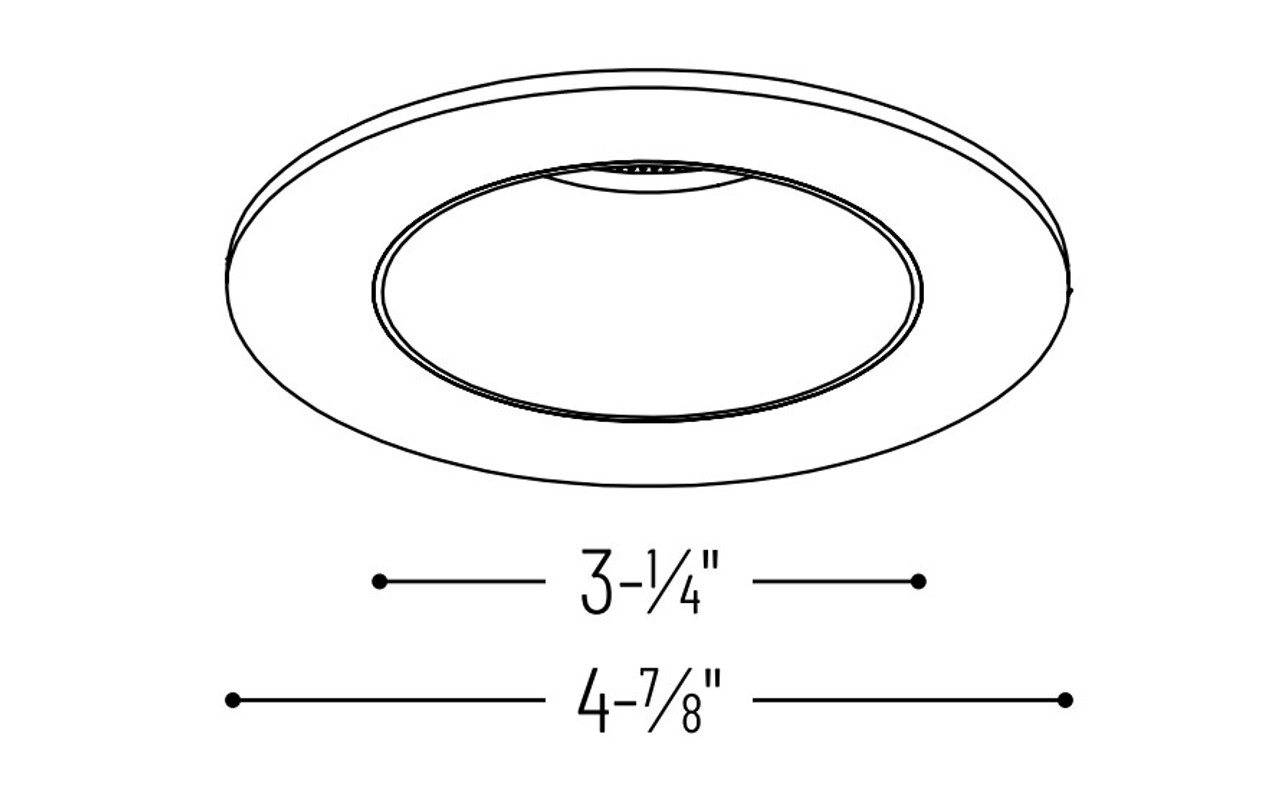

Physical Specs
| Trim Diameter | 4-7/8" |
| Height | 3-1/4" |
Application Examples
- Commercial and retail recessed lighting
- Hospitality and hotel corridors or lobbies
- Residential high-efficiency downlighting
- Architectural and gallery lighting
Installation Tips
- Only compatible with Nora’s Iolite series housings (e.g., NHIOICD-48, NHIOICDCP-48, NHRIOIC-48)
- Optics can be swapped in the field by removing the LED module from the trim
- Use optional accessories like hex louver, frosted lenses, or snoots for beam and glare control:contentReference[oaicite:0]{index=0}
- Wet location listed – ideal for bathrooms and covered outdoor areas
Frequently Asked Questions
Q: Can this trim be used in a wet location?
A: Yes, the NIO-4RNDC30XMPW/10 is cULus listed for wet locations:contentReference[oaicite:1]{index=1}.
Q: Are different beam spreads available?
A: Yes, each unit includes spot (27°), narrow flood (41°), and flood (60°) optics that can be field-changed:contentReference[oaicite:2]{index=2}.
Q: What housing do I need for this fixture?
A: You must use it with a Nora Iolite housing such as NHIOICD-48 (ICAT), NHIOICDCP-48 (Chicago Plenum), or NHRIOIC-48 (Remodel):contentReference[oaicite:3]{index=3}.
Q: Is it compatible with dimming systems?
A: Yes, depending on the housing used, it supports Triac, ELV, or 0-10V dimming protocols.
Q: Can this be used in Title 24 applications?
A: Yes, it is certified to meet the high-efficacy requirements of California Title 24 JA8-2022:contentReference[oaicite:4]{index=4}.
