Product Description

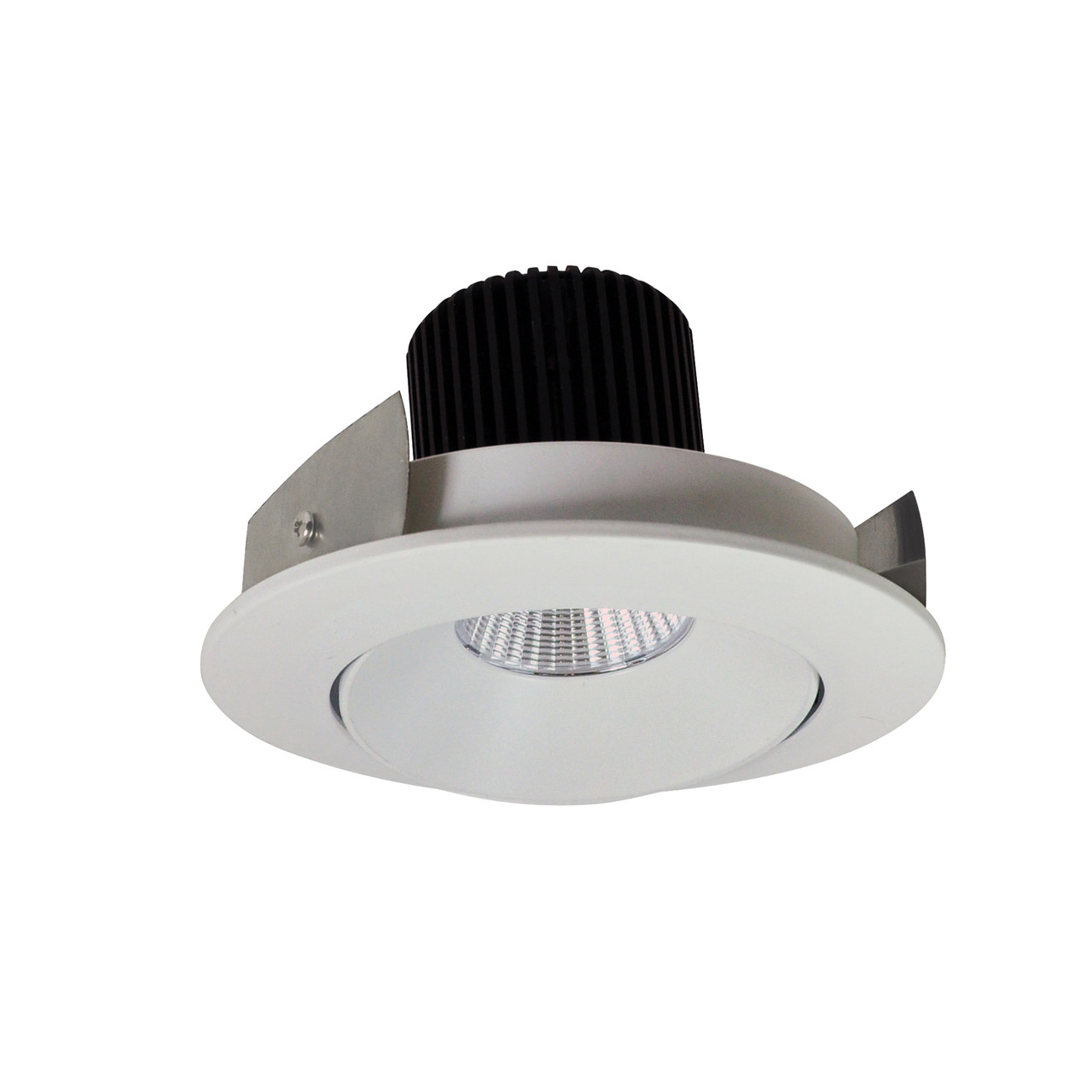

Nora NIO-4RC30XWW/10 4" Iolite LED Round Adjustable Cone Reflector delivers a 1000-lumen, 14W, 3000K / 90+ CRI package in a clean regressed cone, with field-changeable optics for spot, narrow-flood, or flood distributions. This reflector requires a dedicated 4" Iolite housing and is engineered for fast aiming and architectural visual cut-off.
NIO-4RC30XWW/10 – 4" Iolite Round Adjustable Cone, 1000lm / 14W, 3000K, White / White
Dedicated Iolite LED downlight reflector with included field-changeable optics, 90+ CRI, ENERGY STAR® and JA8 compliance; dimming/voltage determined by chosen Iolite housing.
- Lumen Output: 1000 lm (nominal)
- Wattage: 14W
- CCT / CRI: 3000K / 90+ CRI
- Adjustability: Up to 45° with new-construction housings; up to 35° with remodel housings (800–1000 lm)
- Optics: Spot, Narrow Flood, Flood included (field-changeable)
- Required: 4" Iolite housing (see compatible models below)
Free shipping on orders over $250
Benefits
- Flexible beam control: Swap optics on site to fine-tune spot, narrow-flood, or flood distributions.
- High color quality: 90+ CRI at 3000K enhances finishes in residential and light commercial spaces.
- Clean ceiling aesthetic: Regressed cone design improves cut-off and visual comfort.
- System approach: Choose from IC Air-Tight new-construction or remodel housings to match job needs.
Key Features
- 1000 lm at 14W (Iolite LED package)
- 90+ CRI with 2700K–5000K options in the series (this model 3000K)
- Field-changeable optics included (spot / narrow flood / flood)
- Die-cast aluminum construction with threaded heat sink interface
- White / White (WW) reflector & flange finish
- ENERGY STAR®, Title 24 JA8-2022, cULus Damp; 5-Year Warranty
Specifications
Technical Specs
| Series / Type | NIO-4RC – 4" Iolite Round Adjustable Cone (Regressed) |
| Lumens / Wattage | 1000 lm / 14W (LED) |
| CCT / CRI | 3000K / 90+ CRI |
| Optics | Spot, Narrow Flood, Flood – field-changeable (included) |
| Dimming / Voltage | Specified by housing (Triac/ELV/0–10V and 120–277V available with LE4 housings) |
| Lifetime | L70 50,000 hours |
| Operating Temp | Specified by housing |
Performance Specs
| Adjustability (800–1000 lm) | New Construction: 45° tilt; Remodel: 35° tilt |
| Accessories | Accepts (1) hex louver and (1) translucent collar or opaque snoot (no holder required); optional flush-mount mud ring for NC housings |
Physical Specs
| Construction | Heat-dissipating die-cast aluminum trim with threaded LED heat sink |
| Finish | WW — White reflector / White flange |

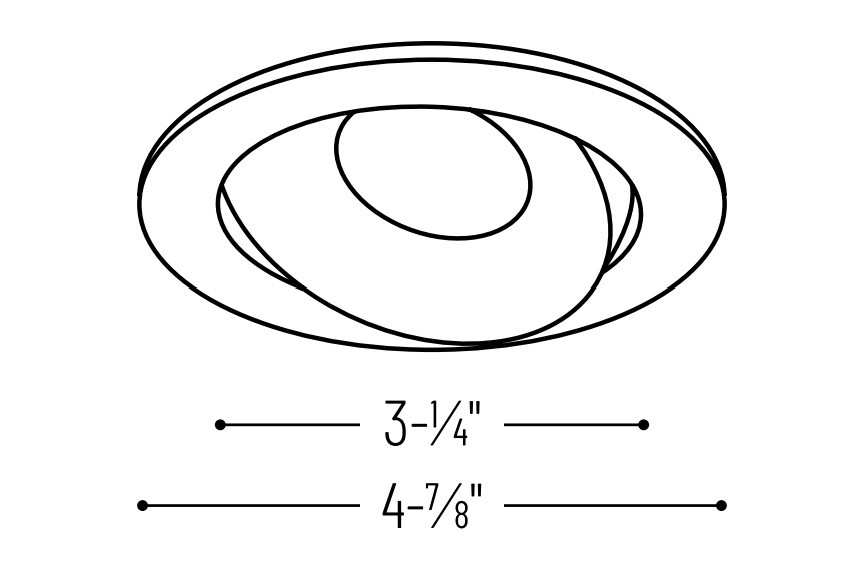

| Dimensions (approx.) | Trim O.D. 4-7/8"; Aperture 3-1/4" |
| Mounting | Friction blades secure reflector to Iolite housing |
Compliance & Safety
| Listings | cULus Damp Location; ENERGY STAR; RoHS |
| Title 24 | Certified to JA8-2022 high-efficacy requirements |
| Warranty | 5-Year Limited |
Compatible 4" Iolite Housings (Required)
| NHIOICD-48 | IC Air-Tight New Construction, 800–1000 lm / 14W |
| NHIOICDCP-48 | Chicago Plenum New Construction, 800–1000 lm / 14W |
| NHRIOIC-48 | IC Air-Tight Remodel, 800–1000 lm / 14W |
Application Examples
- Residential kitchens, living areas, and hallways needing adjustable accent/ambient light
- Retail and hospitality spaces requiring clean cut-off and field-tunable beam spreads
- Projects targeting ENERGY STAR and Title 24 JA8 compliance
Installation Tips
- Select the housing first: Choose new-construction (NHIOICD-48) for up to 45° tilt or remodel (NHRIOIC-48) for up to 35° tilt.
- Set your beam: Start with the included flood optic; swap to narrow-flood or spot as needed.
- Dimming & voltage: Follow the housing’s driver specs (Triac/ELV/0–10V; 120–277V on LE4 versions).
- Accessories: Add hex louver or decorative collars to tailor aperture brightness and appearance.
Frequently Asked Questions
Does this include the housing or LED module?
No. The reflector is part of the Iolite system and requires a dedicated 4" Iolite housing (see compatible models) that provides power and dimming control.
What beam options are included?
Three optics—spot, narrow flood, and flood—are included and can be changed in the field.
How much can I aim the fixture?
With 800–1000 lm models, new-construction housings allow up to 45° tilt, while remodel housings allow up to 35° tilt.
Is it dimmable?
Yes—dimming is determined by the housing (Triac/ELV/0–10V options available; 0–10V at 277V on LE4 drivers).
What finish is NIO-4RC30XWW/10?
WW denotes White reflector / White flange.
Is it Title 24 compliant?
Yes. Iolite luminaires are certified to JA8-2022 and are ENERGY STAR certified.
Do lumens vary with color temperature?
Yes. Output varies slightly by CCT; series multipliers show 3000K is typically a bit lower than 4000K nominal.
