Product Description

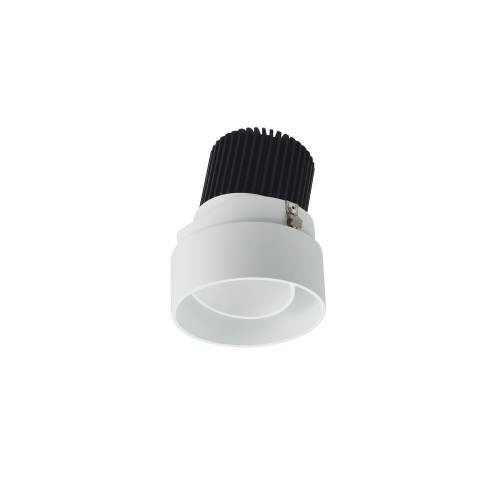

NIO-2RTLA35XMPW/10 2" Iolite LED Round Trimless Adjustable 1000LM / 14W 3500K Matte Powder White delivers a refined, trimless ceiling design with precision adjustability and excellent color performance. This 2" Iolite fixture provides 1000 lumens at 3500K with a high 90+ CRI for accurate color rendering, ideal for both architectural and accent lighting applications.
Product Summary
- Series: Iolite 2" Round Trimless Adjustable
- Lumen Output: 1000 lm
- Wattage: 14W
- Color Temperature: 3500K
- CRI: 90+
- Optics: Spot, Narrow Flood, and Flood (included)
- Adjustability: Up to 15°
- Finish: MPW – Matte Powder White
- Lifetime: 50,000 hours (L70)
- Dimming: Determined by housing (Triac, ELV, 0-10V, or EcoSystem)
- Listing: cULus Damp, ENERGY STAR, Title 24 JA8-2022, RoHS
- Warranty: 5-year limited
Free shipping on orders over $250
Product Benefits
- Modern trimless design: Provides a sleek, knife-edge appearance for seamless ceilings.
- High lumen output: 1000 lumens delivers bright, consistent illumination with only 14W of power.
- Versatile optics: Spot, narrow flood, and flood lenses included for precise lighting control.
- Superior color accuracy: 90+ CRI at 3500K ensures crisp, natural color tones ideal for commercial or residential settings.
Key Features
- Field-changeable optics: Easily swap between beam spreads (spot, narrow flood, flood).
- Adjustable design: Up to 15° tilt for precise aiming on accent elements.
- Trimless installation: Use with NIO-TLMR-2RA mud ring for clean, drywall-flush finish.
- Die-cast construction: Rigid and thermally efficient aluminum body.
- Compliant and efficient: ENERGY STAR certified, Title 24 JA8-2022 compliant, RoHS rated.
Specifications
Technical Specs
| Manufacturer | Nora Lighting |
| Model | NIO-2RTLA35XMPW/10 |
| Series | 2" Iolite Round Trimless Adjustable |
| Lumen Output | 1000 lumens |
| Wattage | 14W |
| Color Temperature | 3500K |
| CRI | 90+ |
| Optics | Spot, Narrow Flood, Flood (field changeable) |
Physical Specs
| Construction | Die-cast aluminum trim and heat sink |
| Adjustability | Up to 15° tilt adjustment |
| Finish | Matte Powder White (MPW) |
Performance & Electrical
| Voltage | Dependent on housing (120V / 277V) |
| Operating Temperature | Specified by housing |
| Lifetime | 50,000 hours (L70) |
Compliance & Safety
| Certifications | cULus Damp Listed, ENERGY STAR, RoHS, Title 24 JA8-2022 |
| Warranty | 5-Year Limited |
Compatible Systems & Accessories
| Compatible Housings | NHIOICD-28 (ICAT New Construction) • NHIOICDCP-28 (Chicago Plenum) |
| Required Trimless Mud Ring | NIO-TLMR-2RA – 2" Round Trimless Mud Ring |
| Optional Accessories | NIO-HC Hex Louver, NIO-AS14/19/26 translucent collars (AM, BLU, FR, R), opaque snoot (MPW/WH), NIO-TLSUCTION suction cup tool |
Application Examples
- Commercial environments such as retail displays and offices
- Residential accent or task lighting with a contemporary trimless look
- Hospitality interiors requiring warm neutral tone illumination
- Architectural spaces emphasizing clean ceiling finishes
Installation Tips
- Use NIO-TLMR-2RA mud ring; drywall finisher must float to achieve seamless ceiling transition.
- Select appropriate housing for the dimming control system in use.
- Field-changeable optics allow flexible lighting adjustment after installation.
- Verify compatibility of accessories such as louvers or snoots before installation.
FAQ
Q: What is the color temperature of this model?
A: The NIO-2RTLA35XMPW/10 delivers a 3500K neutral white output, ideal for balanced lighting in offices or retail environments.
Q: Can I replace the optics in the field?
A: Yes, the fixture includes spot, narrow flood, and flood optics that are field-changeable.
Q: Does this fixture include a trim ring?
A: No, this is a trimless design and requires the NIO-TLMR-2RA mud ring for installation.
Q: Is it dimmable?
A: Yes, depending on housing choice—supports Triac, ELV, 0-10V, or Lutron EcoSystem dimming.
Q: What housings are compatible?
A: NHIOICD-28 ICAT or NHIOICDCP-28 Chicago Plenum housings are recommended.
Q: Can I use Comfort Dim warm dimming with this model?
A: Comfort Dim is only available on 800lm versions, not 1000lm.
Q: Is this suitable for damp locations?
A: Yes, it is cULus Damp Listed.
