Product Description

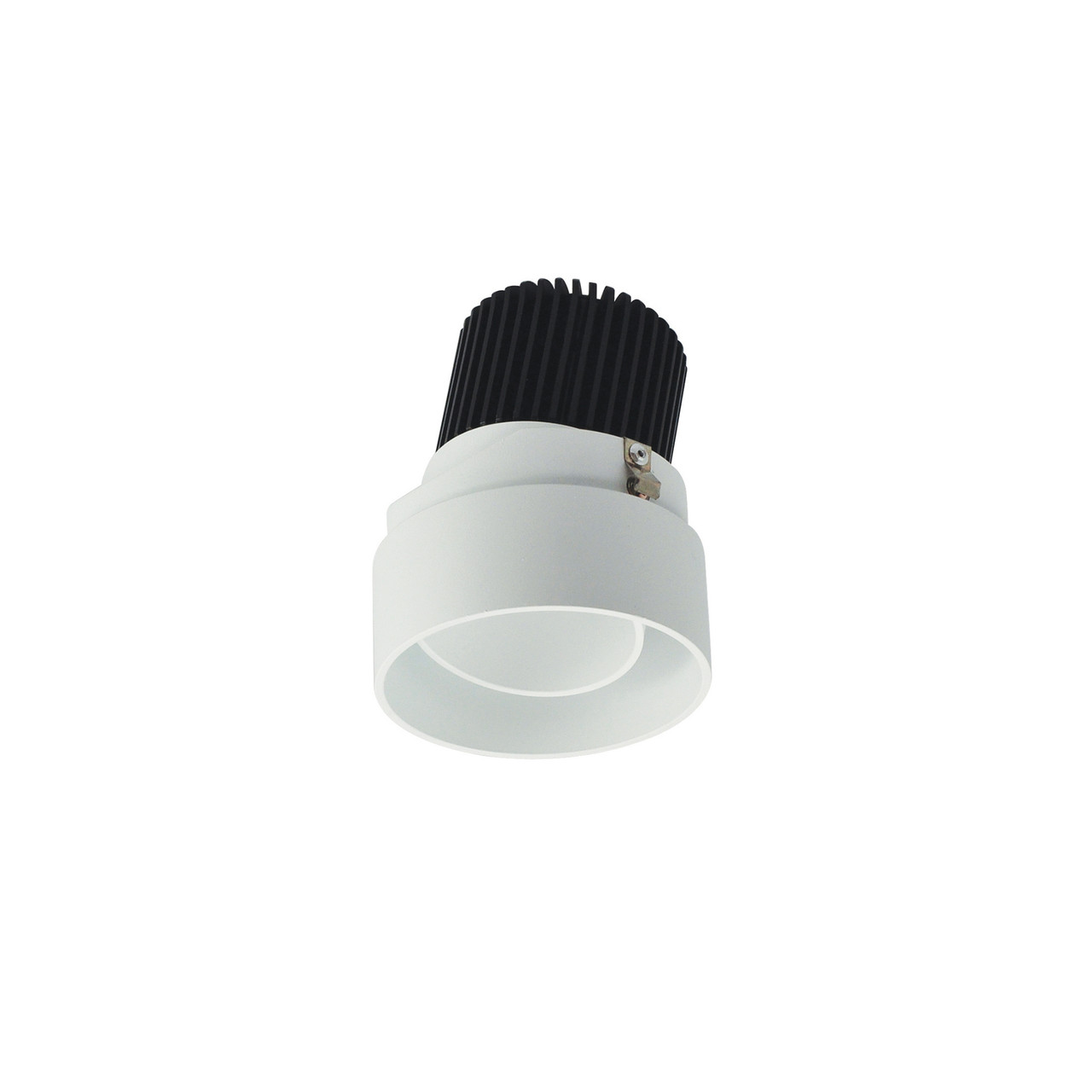

NIO-2RTLA27XMPW/10 2" Iolite LED Round Trimless Adjustable 1000LM / 14W 2700K Matte Powder White provides a premium trimless design with a flush, knife-edge ceiling appearance. Designed for high-end residential and commercial lighting, this adjustable 2" Iolite downlight features field-changeable optics and delivers 1000 lumens at 2700K, 90+ CRI with exceptional visual comfort and flexibility.
Product Summary
- Series: Iolite 2" Round Trimless Adjustable
- Lumen Output: 1000 lm
- Wattage: 14W
- Color Temperature: 2700K
- CRI: 90+
- Beam Options: Spot, Narrow Flood, Flood (field-changeable)
- Adjustability: Up to 15°
- Finish: MPW – Matte Powder White
- Lifetime: 50,000 hours (L70)
- Dimming: Determined by housing (Triac / ELV / 0-10V / EcoSystem)
- Listing: cULus Damp, ENERGY STAR, Title 24 JA8-2022, RoHS
- Warranty: 5-year limited
Free shipping on orders over $250
Product Benefits
- Seamless trimless design: Creates a modern knife-edge ceiling finish without visible flanges.
- High output in compact form: 1000 lumens from a 2" aperture ideal for accent and task lighting.
- Flexible aiming: 15° adjustability to highlight artwork or architectural features.
- High color accuracy: 90+ CRI at 2700K provides warm, true color rendering.
Key Features
- Field-changeable optics: Includes spot, narrow flood, and flood lenses.
- Trimless installation: Requires NIO-TLMR-2RA mud ring for a clean, ceiling-flush appearance.
- Die-cast aluminum build: Provides superior heat dissipation and durability.
- Multiple finishes available: Wide selection of reflector and adjustable finishes to match any design.
- Title 24 JA8-2022 compliant: Meets California energy and efficacy requirements.
Specifications
Technical Specs
| Brand | Nora Lighting |
| Model Number | NIO-2RTLA27XMPW/10 |
| Series | 2" Iolite Round Trimless Adjustable |
| Lumen Output | 1000 lumens |
| Wattage | 14W |
| Color Temperature | 2700K |
| CRI | 90+ |
| Optics | Spot, Narrow Flood, Flood (field changeable) |
Physical Specs
| Construction | Die-cast aluminum trim and LED heat sink |
| Adjustability | Up to 15° tilt |
| Finish | Matte Powder White (MPW) |
Performance & Electrical
| Voltage | Dependent on housing (120V / 277V) |
| Operating Temperature | Specified by housing |
| Rated Life | 50,000 hours (L70) |
Compliance & Safety
| Certifications | cULus Damp Listed, ENERGY STAR, RoHS, Title 24 JA8-2022 |
| Warranty | 5-Year Limited |
Compatible Systems & Accessories
| Compatible Housings | NHIOICD-28 (ICAT New Construction) • NHIOICDCP-28 (Chicago Plenum) |
| Required Trimless Mud Ring | NIO-TLMR-2RA – 2" Round Trimless Mud Ring |
| Optional Accessories | NIO-HC Hex Louver, NIO-AS14/19/26 translucent collars (AM, BLU, FR, R), opaque snoot (MPW/WH), NIO-TLSUCTION suction cup tool |
Application Examples
- Luxury residential spaces requiring high-quality accent lighting
- Hospitality settings such as hotel lobbies, lounges, and bars
- Retail and gallery spaces highlighting products or artwork
- Commercial interiors needing precise beam control and minimal glare
Installation Tips
- Install with NIO-TLMR-2RA mud ring for trimless integration.
- Ensure housing type matches dimming protocol (Triac/ELV/0-10V/EcoSystem).
- Optics can be swapped in the field by removing the LED module from the trim.
- Allow a professional drywall finisher to float and blend the mud ring edge.
- Adjust beam direction up to 15° to fine-tune illumination focus.
FAQ
Q: What’s the difference between 800lm and 1000lm versions?
A: The 1000lm version (this model) offers higher output using the same 14W power draw for brighter applications.
Q: Are optics included?
A: Yes, spot, narrow flood, and flood lenses come standard and can be changed in the field.
Q: Is this fixture dimmable?
A: Yes, dimming depends on the compatible housing — available in Triac, ELV, 0-10V, or EcoSystem.
Q: What is required for a trimless installation?
A: Use the NIO-TLMR-2RA mud ring and float the ceiling to achieve a seamless finish.
Q: Can I use this with Comfort Dim warm dimming?
A: Comfort Dim is only available on 800lm models, not 1000lm versions.
Q: What accessories are available?
A: Optional hex louver, colored collars, opaque snoots, and suction cups for trim removal.
Q: What certifications apply?
A: cULus, ENERGY STAR, RoHS, and Title 24 JA8-2022 for high efficacy compliance.
