Product Description

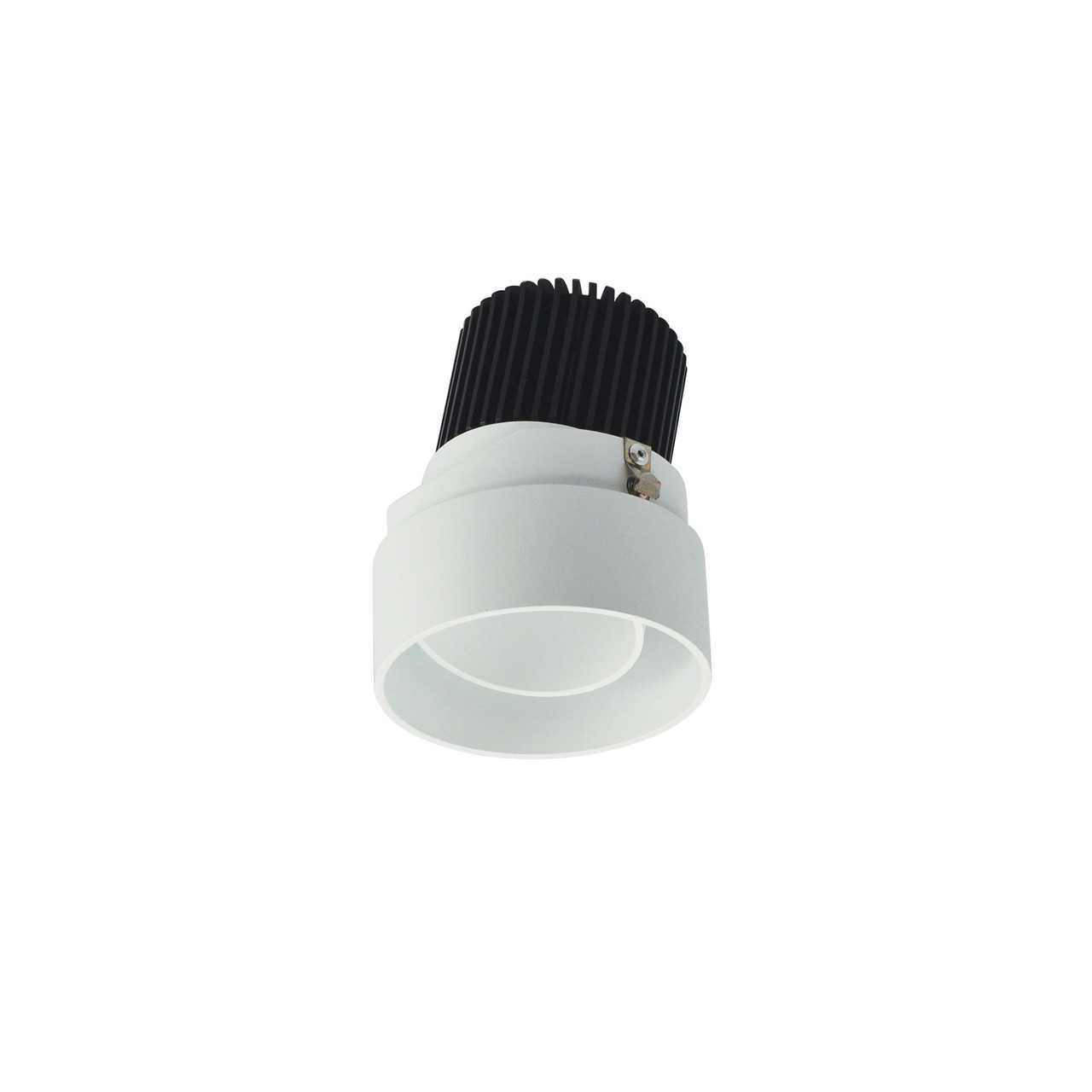

NIO-2RTLA27QMPW 2" Iolite LED Round Trimless Adjustable 10° Optic 800LM from Nora Lighting delivers a minimalist trimless look with a tight 10° TIR optic for precise accent lighting. This 2" Iolite module uses only 12W to deliver 800 lumens at 2700K (90+ CRI) and adjusts up to 15° to aim light exactly where you need it.
Product Summary
- Series: Iolite 2" Round Trimless Adjustable
- Light Output: 800 lm (nominal)
- Wattage: 12W
- CCT: 2700K
- CRI: 90+
- Optic: 10° TIR (factory installed)
- Aiming: Adjustable up to 15°
- Finish: MPW – Matte Powder White (adjustable & reflector)
- Lifetime: 50,000 hours (L70)
- Dimming: Specified by housing (Triac/ELV/0-10V or Lutron EcoSystem)
- Listings: cULus Damp, ENERGY STAR, RoHS, Title 24 JA8-2022
- Warranty: 5-year limited
Free shipping on orders over $250
Product Benefits
- Clean, trimless aesthetic: Knife-edge appearance sits flush with the ceiling for a modern, minimal look.
- Precision beam control: Factory 10° TIR optic concentrates light for artwork, niches, or focal accents.
- High color quality: 90+ CRI at warm 2700K enhances materials and finishes.
- Field-friendly system: Compatible Iolite housings and accessories simplify specification and installation.
Key Features
- 800 lm at 12W: Efficient output suitable for accent and punchy spot applications.
- Adjusts to 15°: Aiming capability makes final focus easy after install.
- Die-cast construction: Heat-dissipating, die-cast aluminum trim and heat sink for longevity.
- Trimless mud ring required: Seamless ceiling integration with NIO-TLMR-2RA.
- System options: Works with multi-voltage Iolite IC housings including Triac/ELV/0-10V or Lutron EcoSystem.
Specifications
Technical Specs
| Brand | Nora Lighting |
| Model | NIO-2RTLA27QMPW |
| Series / Type | 2" Iolite Round Trimless Adjustable |
| Lumen Output | 800 lm (nominal) |
| Wattage | 12W |
| CCT / CRI | 2700K / 90+ CRI |
| Optic | 10° TIR (factory-installed; not field-changeable on this model) |
| Aiming | Up to 15° adjustment |
| Lifetime | 50,000 hours (L70) |
| Dimming | By housing (Triac / ELV / 0-10V or Lutron EcoSystem) |
Physical Specs
| Construction | Die-cast aluminum trim and heat sink |
| Finish | MPW – Matte Powder White (adjustable & reflector) |
| Form Factor | 2" round trimless; requires separate mud ring |
Performance Specs
| CBCP | Up to 8,389 cd (varies by CCT/finish) |
| Operating Temp | Specified by housing |
| Compliance & Safety | cULus Damp, ENERGY STAR, RoHS, Title 24 JA8-2022 |
Compatible Systems & Components
| Required Mud Ring | NIO-TLMR-2RA (2" Round Trimless Mud Ring) |
| Compatible Housings | NHIOICD-28LE4 (ICAT; Triac/ELV/0-10V, 120-277V) • NHIOICD-28LUPEQ (ICAT; Lutron EcoSystem, 120/277V) • NHIOICDCP-28LE4 (Chicago Plenum; Triac/ELV/0-10V) • NHIOICDCP-28LUPEQ (Chicago Plenum; Lutron EcoSystem) |
| Optional Accessories | Hex louver (NIO-HC), translucent decorative collars (NIO-AS14/19/26 in AM/BLU/FR/R), opaque snoot (NIO-AS14/19/26 in MPW/WH), suction cup (NIO-TLSUCTION) |
Application Examples
- Gallery and retail accenting of art, merchandise, and architectural details
- Residential niches, alcoves, and feature walls requiring tight beams
- Hospitality focal lighting for receptions, bars, and backdrops
- High-ceiling highlight tasks where strong center-beam intensity is needed
Installation Tips
- Use NIO-TLMR-2RA mud ring; finishers should float the ceiling for a flush, knife-edge appearance.
- Select the appropriate Iolite new-construction housing to match your control method (Triac/ELV/0-10V or EcoSystem).
- Plan beam placement carefully—10° optic is factory-set and not field-changeable on this model.
- Complete aiming after energizing; adjust up to 15° for final focus.
- Confirm dimmer compatibility with the chosen housing to ensure smooth low-level performance.
FAQ
Q: Does this fixture require a special housing?
A: Yes. Use the compatible Iolite IC or Chicago Plenum housings listed above; dimming type is determined by the housing.
Q: Is the 10° optic field-changeable?
A: This model ships with a 10° TIR optic that is not field-changeable. (Other Iolite versions support field-changeable optics.)
Q: What mud ring do I need for a trimless install?
A: Specify NIO-TLMR-2RA for 2" round trimless applications.
Q: What is the CRI and color temperature?
A: 90+ CRI at 2700K for this part number.
Q: Can I use accessories to manage brightness or décor?
A: Yes—add a hex louver, translucent colored collars, or an opaque snoot without an accessory holder.
Q: Is it suitable for damp locations?
A: Yes, it is cULus Listed for Damp Locations.
Q: What is the warranty?
A: The downlight carries a 5-year limited warranty.
Q: How tight is the beam and how intense?
A: The factory 10° optic produces a very tight spot with high center-beam candlepower (up to 8,389 cd, depending on CCT/finish).
