Product Description
Nora NHRIOIC-48LE4 4" Iolite IC Air-Tight Remodel Housing is a dedicated, insulated-ceiling remodel can engineered for energy-efficient, air-tight installations and broad dimming/voltage flexibility. Pair it with any 4" Nora Iolite (NIO-4) trim/engine to achieve 800–1000 lumen packages while keeping installs fast and code-friendly.

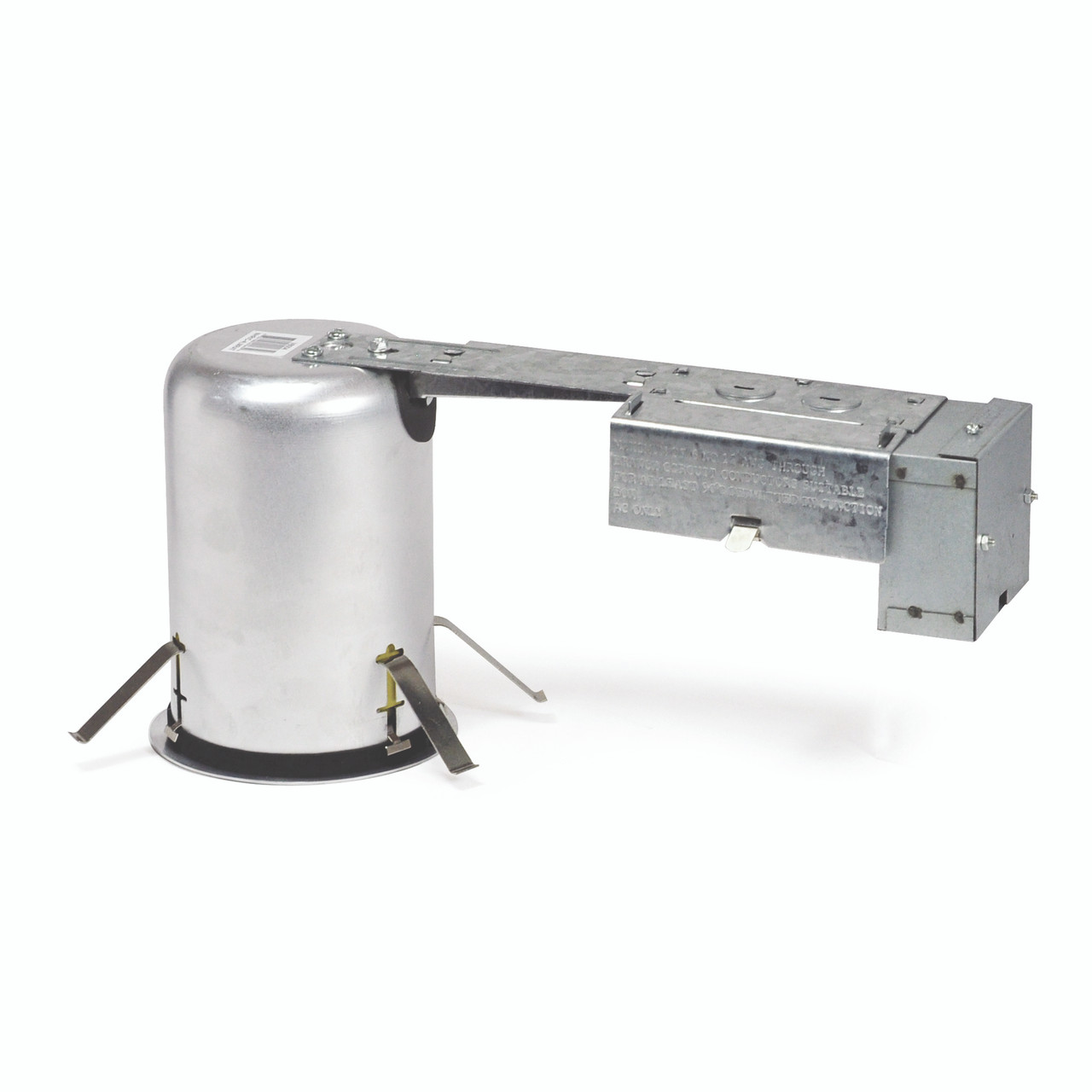

NHRIOIC-48LE4 – 4" Iolite LED Dedicated IC Air-Tight Remodel Housing
IC-rated, air-tight 4" remodel housing for insulated ceilings; 120–277V input with Triac/ELV/0–10V dimming (0–10V at 277V); pairs with NIO-4 trims/engines for 800–1000 lm output.
- Voltage / Dimming: 120–277V; Triac / ELV / 0–10V (277V = 0–10V)
- Input Power (LE4): 12W (Source: 14W LED)
- Air-Tight: <2 CFM per ASTM-E283
- IC Rated: Direct contact with insulation (not for spray foam contact)
- Ceiling Cutout: 4-1/4"
- Dimensions: 13" L × 6-1/4" H can
Free shipping on orders over $250
Benefits
- Code-ready install: IC and air-tight construction helps meet energy codes and reduce ceiling air leakage.
- Remodel made easy: High-tension springs lock into 1/4"–5/8" drywall for fast, no-frame retrofits.
- System flexibility: Works with a wide range of 4" NIO-4 trim styles, including wet-location options.
- Jobsite compatible: 120–277V input and multi-protocol dimming adapt to residential and commercial projects.
Key Features
- Steel remodel housing with integrated structural arm and junction/driver compartment
- Air-tight gaskets limit airflow to <2 CFM per ASTM-E283
- IC rated for direct contact with insulation (not for direct spray-foam contact)
- 120–277V input, Triac / ELV / 0–10V dimming (277V uses 0–10V)
- Pre-wired 25 in³ junction box with (6) 1/2" KOs, (4) Romex® pry-outs, quick connectors
- Four spring clips secure to 1/4"–5/8" ceilings; hole template included
- cULus Damp (Wet with compatible trim), ENERGY STAR, RoHS, FCC; 5-Year Warranty
Specifications
Technical Specs
| Model | NHRIOIC-48LE4 (driver LE4) |
| Input Voltage | 120–277V, 50/60 Hz |
| Input Power | 12W (LE4 driver); Source rated 14W LED |
| Power Factor | ≥ 0.90 |
| Dimming | 120V: Triac / ELV / 0–10V; 277V: 0–10V |
| Operating Temp | 25 °C max ambient |
Physical Specs
| Housing | 0.030" steel can; 0.040" structural arm with driver/J-box |
| Junction Box | 25 in³ galvanized steel; (6) 1/2" KOs; (4) Romex® pry-outs; snap-on covers; #18 AWG leads; max (6) #12 AWG 90 °C conductors |
| Mounting | (4) high-tension springs for 1/4"–5/8" ceilings; cutout template included |
| Dimensions | Length 13"; Height 6-1/4"; Ceiling cut-out 4-1/4" |
Performance & Compliance
| Air-Tight | <2 CFM per ASTM-E283 |
| IC Rating | Direct contact with insulation (no direct spray-foam contact) |
| Listings | cULus Damp (Wet with compatible trim), ENERGY STAR, RoHS, FCC |
| Warranty | 5-Year Limited |
Compatible 4" Iolite Trims (Selection)
| NIO-4RC / 4SC | Round / Square Adjustable Cone Regress |
| NIO-4RG / 4SG | Round / Square Adjustable Surface Gimbal |
| NIO-4RD / 4SD | Round / Square Adjustable Deep Regress |
| NIO-4RNDC WET / 4SNDC WET | Round / Square Deep Reflector (Wet Location) |
| NIO-4RPH WET | Round Pinhole (Wet) |
| NIO-4RPHA / 4RSL | Round Adjustable Pinhole / Slot Aperture |
Application Examples
- Remodel projects needing IC, air-tight 4" downlights in insulated ceilings
- Multi-voltage commercial renovations (120–277V) with mixed dimming protocols
- Bathrooms, porches, and eaves using wet-location NIO-4 trims
Installation Tips
- Cutout: Use the supplied template for a clean 4-1/4" opening.
- Ceiling thickness: Springs accommodate 1/4"–5/8" drywall; verify secure engagement.
- Wiring: Up to (6) #12 AWG 90 °C conductors permitted in the 25 in³ J-box; use listed connectors.
- Dimming @277V: Use 0–10V only. At 120V, Triac/ELV/0–10V are supported.
- Insulation: IC rated, but do not install in direct contact with spray-foam insulation.
Frequently Asked Questions
Is the light engine included with this housing?
No. This is the housing only. Pair with any 4" NIO-4 Iolite trim/engine to complete the luminaire.
What’s the difference between LE3A and LE4 versions?
LE3A is 120V only with Triac/ELV dimming. LE4 accepts 120–277V and supports Triac/ELV/0–10V (277V = 0–10V).
How “air-tight” is the housing?
It’s factory-gasketed and tested to restrict airflow to <2 CFM per ASTM-E283.
What ceiling thickness does it support?
1/4" to 5/8" drywall using the integral high-tension spring clips.
What are the dimensions?
Approximately 13" long with a can height of 6-1/4" and a ceiling cutout of 4-1/4".
Is it suitable for wet locations?
The housing is cULus Damp listed; it becomes Wet Location when used with specified wet-rated NIO-4 trims.
