Product Description
NHRIC-17QAT 6" Line Voltage IC AT Remodel Housing by Nora Lighting is a high-performance recessed lighting solution designed for energy efficiency, safe installation in insulated ceilings, and full compatibility with Nora 6" line voltage trims and LED retrofits. Ideal for remodel applications, it meets stringent air-tight and safety requirements while ensuring quick and secure installation.
Brand: Nora Lighting
Model: NHRIC-17QAT
Voltage: 120V
Socket Type: Medium Base
Wattage: 90W Max. (varies by trim)
Certifications: cULus Listed, ASTM-283, NYC Approved
Application: Remodel - Insulated Ceilings
Free shipping on orders over $250
Benefits of the NHRIC-17QAT Remodel Housing
- Enables energy savings with Air-Tight IC construction, minimizing air leakage
- Easy to install in existing sheet rock ceilings with high-tension spring mounting
- Rated for direct contact with insulation, ensuring code compliance
- Compatible with LED retrofits and Nora 6" trims, offering versatility in lighting design
Key Features
- Air-Tight Housing: Reduces airflow to <2CFM in accordance with ASTM-283
- Quick Connect: UL-approved connectors for tool-free wiring
- Thermal Protector: UL-rated for 90°C, preventing overheating
- Junction Box: Prewired 15 cu. in. steel box with multiple knockouts and Romex® pryouts
- Adjustable Socket Bracket: Optimizes light output and supports field conversion
Specifications
Technical Specs
| Input Voltage | 120V |
| Socket | Medium base |
| Wattage | 90W max. (varies by trim) |

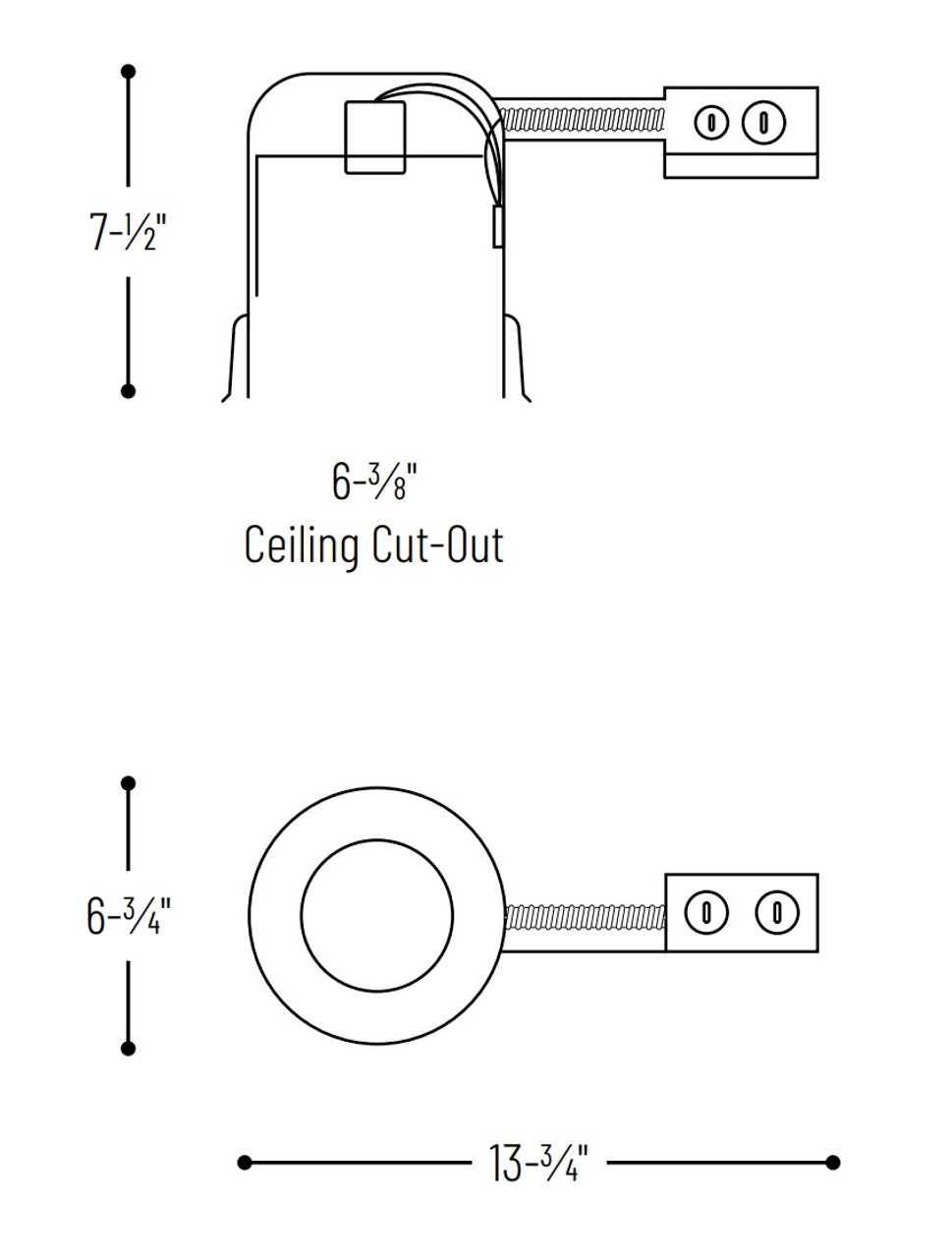

Physical Specs
| Ceiling Cut-Out | 6-3/8" |
| Height | 7-1/2" |
| Length | 13-3/4" |
| Width | 6-3/4" |
| Max. Ceiling Thickness | 1-3/8" |
Performance & Compliance
| Air Tight Rating | Yes – Meets ASTM-283 |
| Approvals | cULus, NYC Approved (Calendar #43895) |
| Usage Location | Damp Location / Wet Location with designated trims |
Ideal Applications
- Residential remodels and upgrades
- Commercial ceiling retrofits
- IC-rated ceiling installations with insulation
- Lighting projects requiring air-tight energy compliance
Installation Tips
- Secure housing using high-tension springs into existing sheet rock ceilings
- Ensure ceiling thickness does not exceed 1-3/8” for proper fit
- Use quick connect wiring for fast, secure electrical connections
- Verify thermal protector is in place and functional before energizing circuit
Frequently Asked Questions
Q: What trim options are compatible with the NHRIC-17QAT housing?
A: It supports all Nora 6" line voltage trims and LED retrofit trims.
Q: Can this remodel housing be installed in a ceiling with insulation?
A: Yes, it is IC-rated for direct contact with insulation, excluding spray foam.
Q: Is this housing suitable for wet locations?
A: Only when paired with designated wet-rated trims. Otherwise, it is rated for damp locations.
Q: What is the purpose of the air-tight gasket?
A: It reduces air leakage through the ceiling to improve energy efficiency and meet building codes.
Q: Does it include a junction box?
A: Yes, a 15 cubic inch prewired steel junction box is included with multiple knockouts and Romex® pryouts.
Q: What is the maximum wattage supported?
A: Up to 90W, depending on the installed trim type.
Q: Can I adjust the socket position?
A: Yes, it includes an adjustable socket bracket for optimal performance.
