Product Description

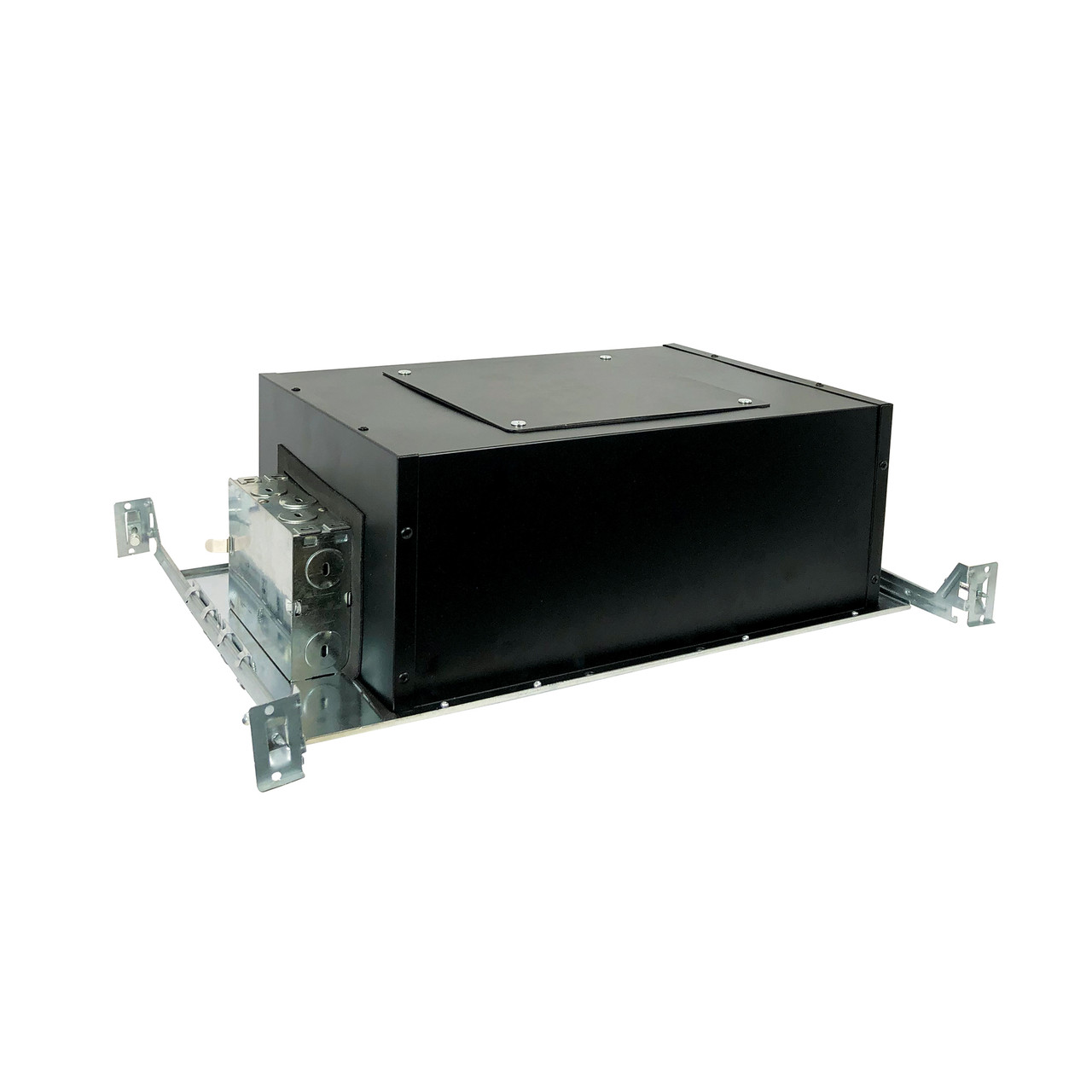

NHIOICDCP-4PS25LE4 4" Iolite Plus LED Dedicated Chicago Plenum New Construction Housing by Nora Lighting is designed for use with Square PLUS trimless installations. This housing is air-tight for energy efficiency, rated for insulated ceilings, and meets Chicago Plenum requirements. Its patented driver removal design simplifies maintenance while ensuring reliable performance.
Key Features
- Compatible with Square PLUS trimless only.
- Chicago Plenum rated for commercial applications.
- IC-rated for direct contact with insulation.
- Air-tight construction meets ASTM-283 standards.
- 28W power consumption with 120V-277V input.
- Supports TRIAC, ELV, and 0-10V dimming.
- Patented design allows tool-less driver removal.
Specifications
- Wattage: 28W
- Voltage: 120V-277V
- Dimmable: Yes (TRIAC / ELV / 0-10V)
- Construction: 0.040" aluminum, suitable for up to 1/2" ceiling thickness
- Air Flow Restriction: Meets ASTM-283 (<2CFM)
- Compliance: cULus Listed, ENERGY STAR, RoHS compliant
- Warranty: 5-Year Limited
Installation Tips
- Ensure compatibility with Square PLUS trimless only.
- Install in insulated ceilings with direct contact.
- Adjust bar hangers to fit joists or suspended ceilings.
- Do not use with emergency battery connections, as they are incompatible with Chicago Plenum models.
Frequently Asked Questions
Q: What type of ceilings is this housing compatible with?
A: It is compatible with insulated ceilings and can be in direct contact with insulation.
Q: What dimming options are supported?
A: TRIAC, ELV, and 0-10V dimming are supported.
Q: Does this housing meet energy efficiency standards?
A: Yes, it is ENERGY STAR certified and features air-tight construction to reduce energy loss.
Q: Is this housing Chicago Plenum rated?
A: Yes, it meets Chicago Plenum requirements for commercial installations.
Q: What is the warranty for this product?
A: It comes with a 5-Year Limited Warranty.
Q: Is it compatible with round trimless installations?
A: No, it is designed specifically for Square PLUS trimless installations.
