Product Description

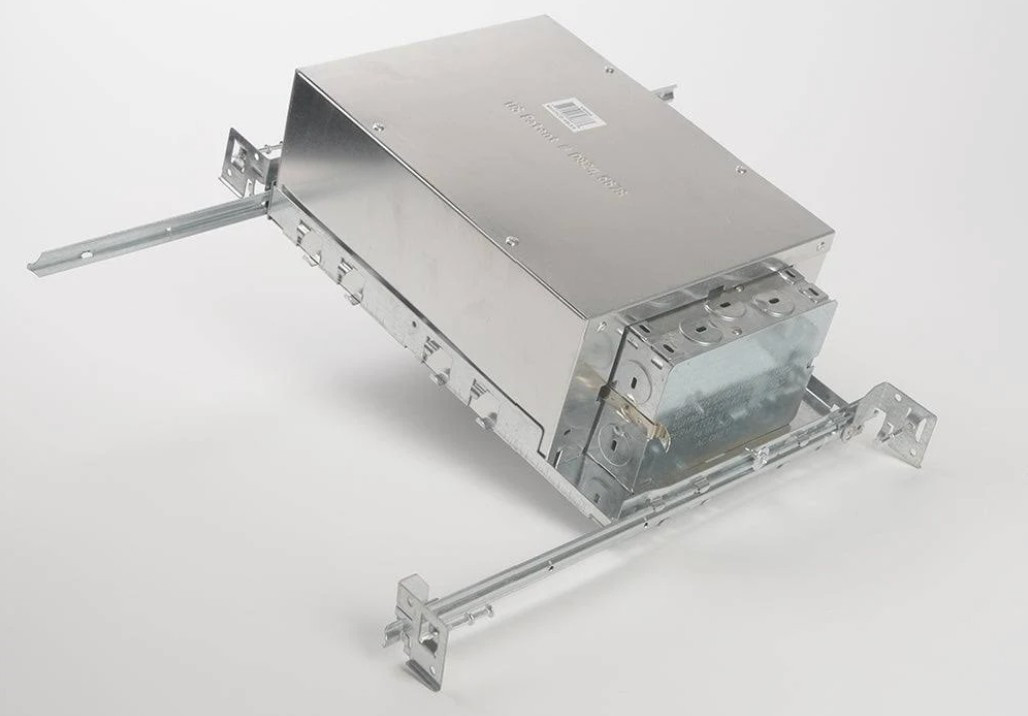

The NHIOICD-48LE4 4" Iolite LED Dedicated IC Air-Tight New Construction Housing by Nora Lighting is an energy-efficient housing designed for use in insulated ceilings. With its 120-277V input compatibility and airtight design, this housing is ideal for both residential and commercial new construction projects.
Key Features:
- Wide Voltage Range: Accepts 120-277V input for versatile applications
- Airtight & IC Rated: Minimizes air leakage and is safe for direct insulation contact
- Dimming Flexibility: Compatible with Triac, ELV, and 0-10V dimming systems
- Patented Driver Assembly: Allows for tool-less driver removal
- Durable Construction: Made with 0.040" aluminum housing
Specifications:
- Wattage: 13W
- Voltage: 120-277V
- Lumens: Up to 800 lumens
- Housing Type: IC Air-Tight
- Dimming Options: Triac/ELV/0-10V dimming
- Dimensions: 12" W x 4" H x 7.63" D
- Compliance: cULus Listed for Damp Locations, ENERGY STAR certified, RoHS compliant
- Warranty: 5-Year Limited Warranty
Applications:
Perfect for new construction in both residential and commercial settings where energy efficiency and airtight insulation are required.
Frequently Asked Questions:
Q: Can it be used with any dimmer?
A: Yes, it is compatible with Triac, ELV, and 0-10V dimming systems.
Q: Is this housing suitable for wet locations?
A: It is damp location rated and wet location compatible when used with appropriate trims.
Q: What type of projects is this housing best for?
A: It is designed for new construction, especially in settings requiring energy efficiency and airtight insulation.
Q: What trims are compatible with this housing?
A: It is compatible with Nora Iolite 4" LED trims such as adjustable cones, deep reflectors, and wall wash trims.
