Product Description
Product Overview

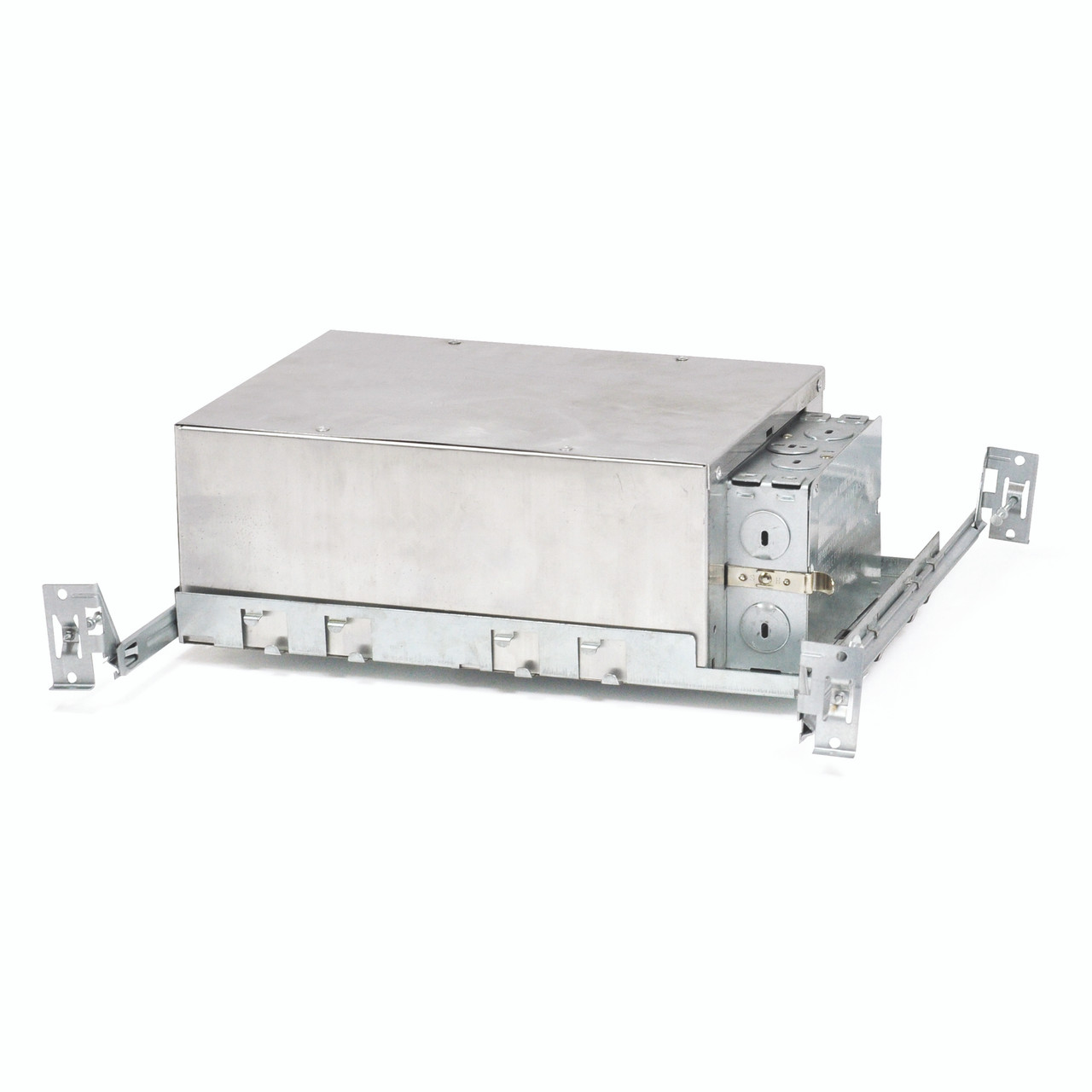

The NORA NHIOICD-28LE4 is a high-performance 2-inch Iolite IC Air-Tight New Construction Housing. Designed for both residential and commercial projects, this housing provides energy efficiency and safety. It is IC-rated for direct contact with insulation and includes an air-tight construction to reduce air leakage, meeting ASTM-283 standards. Its patented tool-less driver removal system ensures convenience and reliability, making it ideal for sustainable and modern lighting applications.
Key Features
IC and Air-Tight Design: Meets ASTM-283 standards, reducing energy loss and supporting energy-efficient installations.
Patented Driver Assembly: Allows for tool-less driver removal from the room side.
Dimming Compatibility: Supports Triac, ELV, and 0-10V dimming; compatible with Lutron EcoSystem for advanced dimming control.
Durable Aluminum Housing: 0.040" aluminum construction supports up to 1/2" ceiling thickness; optional extension collar (NIO-2EXTC2) accommodates ceilings up to 2".
Adjustable Bar Hangers: 13-3/4" to 24-1/2" adjustable bar hangers with "L"-shaped feet for precise installation.
Junction Box: 25 cubic inch pre-wired galvanized steel with multiple knockouts and Romex® pryouts.
Emergency Battery Ready: Pre-wired for remote emergency battery installations (NEPK-07LEDUNV).
Specifications
Input Voltage: 120V or 120-277V
Input Power: 12W-13W
Lumen Output: 800-1,000 lumens
Power Factor: ≥0.90
Operating Temperature: Up to 40°C
Certifications: ENERGY STAR, RoHS compliant, cULus Listed (Damp and Wet Locations with compatible trims)
Applications
The NHIOICD-28LE4 is ideal for:
Residential and commercial projects requiring energy-efficient and reliable lighting solutions.
New constructions prioritizing air-tight installations to meet energy standards.
Versatile lighting setups using adjustable and dimmable configurations.
Compatible Trims
The housing is compatible with a wide range of 2-inch trims, including:
NIOB-2RC: Round Adjustable Cone Regress
NIOB-2RG: Round Adjustable Surface Gimbal
NIOB-2RNDC: Round Reflector
Frequently Asked Questions (FAQs)
Q: Is the NHIOICD-28LE4 suitable for direct contact with insulation?
A: Yes, it is IC-rated and safe for direct contact with insulation.
Q: What dimming options are available?
A: Compatible with Triac, ELV, 0-10V, and Lutron EcoSystem dimming.
Q: Can this housing support emergency battery installations?
A: Yes, it is pre-wired for remote emergency battery installations (battery sold separately).
Q: What is the maximum ceiling thickness it supports?
A: Standard support is for 1/2" thick ceilings, extendable to 2" with the NIO-2EXTC2 extension collar.
