Product Description
NHICCB-615LE4 6" Cobalt High Lumen Dedicated IC AT New Construction Housing is a Nora Lighting IC-rated, air-tight housing designed for insulated ceilings and purpose-built for the Cobalt High Lumen 6" reflector family. It supports 120/277V input with Triac, ELV, or 0–10V dimming and delivers fast, professional installs with adjustable bar hangers and a screwless snap-in trim interface.
Quick Summary
- Model: NHICCB-615LE4
- Type: 6" Dedicated IC Air-Tight new construction housing
- Voltage: 120/277V, 50/60Hz
- Dimming: Triac / ELV / 0–10V
- Output pairings: 1500lm (22W) or 2000lm (28W) with Cobalt High Lumen reflectors
- Listings: cULus Wet Location (with designated trims), Title 24 JA8-2019, Air-Tight per ASTM-283
- Free shipping on orders over $250
Product Benefits
- IC Air-Tight construction reduces ceiling air leakage and supports energy code compliance.
- High-lumen platform pairs with 6" Cobalt reflectors for 1500–2000 lumen applications.
- Flexible dimming (Triac, ELV, 0–10V) simplifies compatibility across job sites.
- Contractor-friendly install with 13-3/4"–24-1/2" adjustable bar hangers and captive nails.
Key Features
- Dedicated housing: labeled for use with Cobalt High Lumen 6" reflectors only.
- IC-rated & Air-Tight: direct contact with insulation; factory gaskets restrict airflow to <2 CFM.
- Multi-voltage driver: 120/277V input; Triac / ELV / 0–10V dimming.
- Bar hangers: 13-3/4" to 24-1/2" adjustment, parallel or 90° to J-box; “L” foot for joist alignment; T-bar notch for grid.
- Pre-wired J-box: 25 cu in galvanized steel with multiple knockouts and quick connectors.
- Emergency-ready option: order /PEM for pre-wiring; use NEPK-07LEDUNV (remote battery) with test switch.
Specifications
| Technical Specs | Details |
|---|---|
| Input Voltage | 120/277V, 50/60Hz |
| Dimming | Triac, ELV, or 0–10V |
| Supported Outputs | 1500lm / 22W or 2000lm / 28W (with Cobalt HL reflectors) |
| Compatibility | NLCB2-651 (Open), NLCB2-652 (Baffle), NLCB2-653 (Sq. w/Round Aperture), NLCB2-656 (Sq. w/Sq. Aperture; 1500lm / 22W only) |

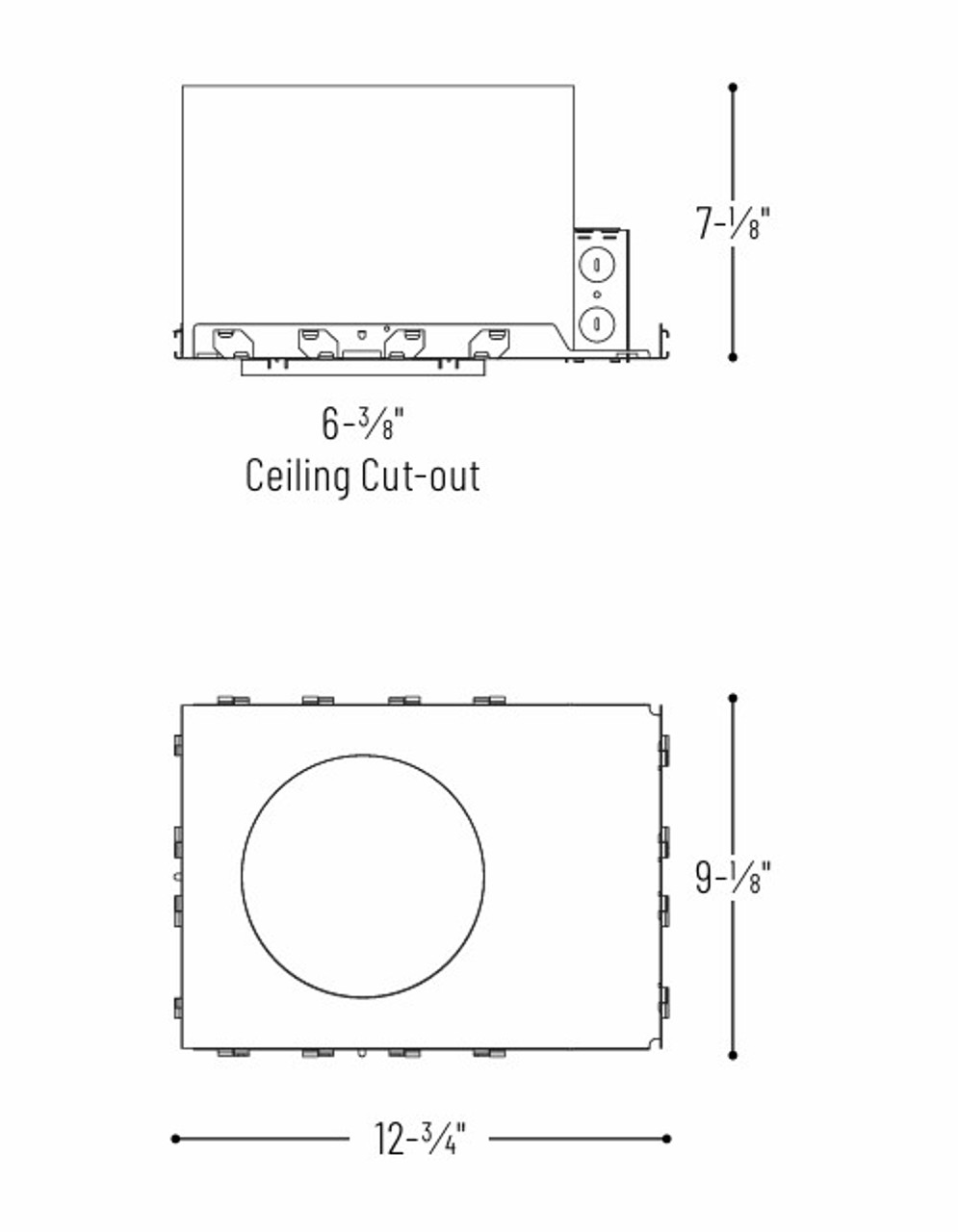

| Physical Specs | Details |
|---|---|
| Ceiling Cut-out | 6-3/8" |
| Overall Length | 12-3/4" |
| Height | 7-1/8" |
| Material | 0.04" aluminum housing; 0.04" steel plaster frame |
| Junction Box | 25 cu in; (5) 1/2" & (2) 3/4" knockouts; (4) Romex pry-outs; quick connectors |
| Compliance & Safety | Details |
|---|---|
| Listings | cULus Wet Location (with designated reflectors); Title 24 JA8-2019 |
| Air-Tight | <2 CFM per ASTM-283 |
| Warranty | 5-Year Limited |
| IC Rating | Direct contact with insulation; not for direct contact with spray foam |
| Assembled | USA |
Application Examples
- Commercial corridors and lobbies requiring high-lumen output and Title 24 compliance.
- Residential great rooms and kitchens needing IC Air-Tight recessed lighting.
- Hospitals, schools, and offices standardizing on 0–10V dimming control.
Installation Tips
- Verify ceiling cut-out at 6-3/8"; ensure joists allow bar hanger adjustment.
- Set bar hangers parallel or rotate 90° to the J-box as needed; use the “L” foot to align to joist bottom.
- Choose the correct Cobalt HL reflector (1500lm 22W or 2000lm 28W); note NLCB2-656 is 22W only.
- For emergency egress, order housing /PEM and pair with NEPK-07LEDUNV remote battery kit.
- Maintain wet-location compliance by using designated reflectors and following gasket instructions.
Frequently Asked Questions
Q: Is NHICCB-615LE4 IC-rated and Air-Tight?
A: Yes. It’s IC for direct contact with insulation and factory-gasketed for Air-Tight (<2 CFM) performance.
Q: What voltages and dimming methods are supported?
A: 120/277V with Triac, ELV, or 0–10V dimming for broad control compatibility.
Q: Which reflectors are compatible?
A: Cobalt High Lumen 6" series: NLCB2-651, -652, -653, and -656 (note: -656 is 1500lm/22W only).
Q: Can I use this in wet locations?
A: Yes, when paired with designated reflectors that carry the wet-location listing.
Q: Does this include an emergency battery?
A: No. Order the housing with /PEM pre-wire and add NEPK-07LEDUNV remote battery separately.
Q: What are the key cut-out and housing dimensions?
A: 6-3/8" ceiling cut-out; approx. 12-3/4" length and 7-1/8" height.
Q: Are there restrictions with spray foam insulation?
A: Yes. IC housings are not for direct contact with spray foam insulation.
Q: How many knockouts are on the J-box?
A: Five 1/2" and two 3/4" knockouts, plus four Romex pry-outs with snap-on covers.
