Product Description

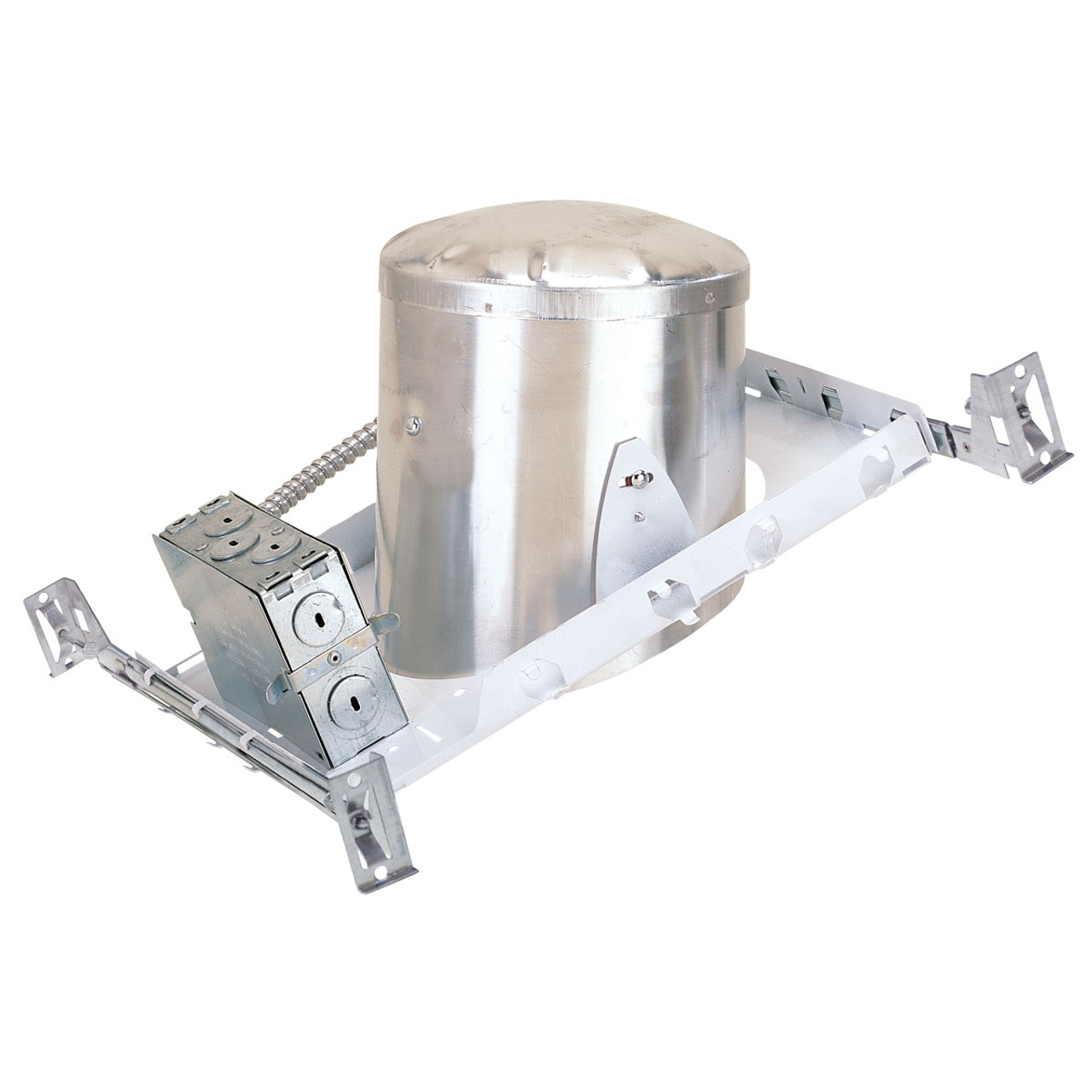

NHIC-926QAT is a 6" sloped ceiling new construction housing by Nora Lighting, engineered for insulated ceilings with a pitch range from 1/12 to 6/12. This IC-rated, air-tight housing is ideal for energy-efficient applications and is compatible with multiple Nora trims and LED retrofit modules. Its shallow profile, integrated quick connectors, and adjustable bar hangers make it easy to install in sloped ceiling layouts.
Brand: Nora Lighting
Model: NHIC-926QAT
Application: Sloped Ceiling New Construction
Voltage: 120V
Socket: Medium Base
Max Wattage: 75W (dependent on trim selection)
Air-Tight: Factory sealed, ≤2CFM per ASTM-283
IC Rating: Direct contact with insulation (non-spray foam)
Free shipping on orders over $250
Product Benefits
- Compatible with ceiling slopes from 1/12 to 6/12 pitch
- IC rated and air-tight to prevent thermal loss and energy waste
- Designed for use with A19 lamp types and multiple 6" Nora trims
- Quick connect system and large junction box for easy wiring
Key Features
- Construction: 0.035" steel housing with die-cut frame and dome cap design
- Socket Plate: Galvanized steel, angle-adjustable for ceiling slope
- Mounting: 24-1/2" adjustable bar hangers with captive nails and alignment foot
- Junction Box: 25 cu in capacity with knockouts and Romex® pryouts
- Thermal Protector: Built-in, rated for 90°C
Specifications
Technical Specs
| Input Voltage | 120V |
| Max Wattage | 75W |
| Socket Type | Medium Base |
| Ceiling Cutout | 6-1/2" x 7" |

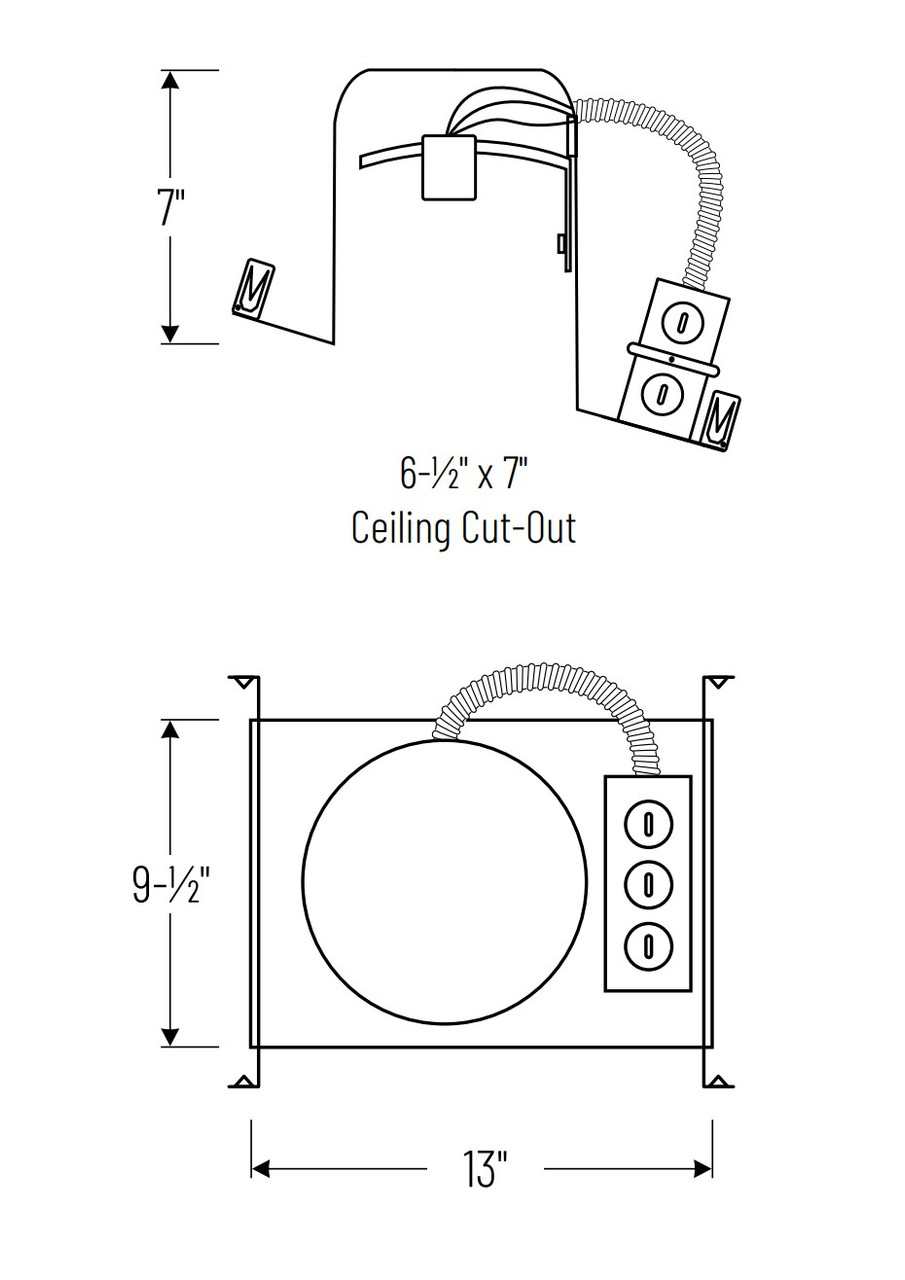

Dimensions
| Height | 7" |
| Length | 13" |
| Width | 9-1/2" |
Compatible Trims
- NP-22 WET / NP-322 WET – Plastic trims with albalite lens
- NT-22 WET / NT-23 WET – Metal trims with Fresnel lens
- NP-24 / NT-24 – Trims with drop opal lens
- NT-25 – Half moon wall wash
- NT-28 / NTM-52 / NTM-53 – Eyeball and gimbal trims
- NTM-615 / NTP-614 / NTS-615 – Sloped trims
- NRMC-6S11 / NRMC-6S12 – LED retrofit trims (reflector/baffle)
Application Examples
- Residential sloped ceilings and vaulted spaces
- Commercial ceiling applications with insulation
- Lighting designs requiring angled recessed placement
- New construction in energy-conscious environments
Installation Tips
- Use included bar hangers with alignment foot and T-bar notch
- Reposition hangers perpendicular or parallel to junction box as needed
- Match ceiling pitch between 1/12 and 6/12
- Not for use in contact with spray foam insulation
Frequently Asked Questions
Q: What ceiling slope is compatible with the NHIC-926QAT?
A: This housing supports ceiling pitches from 1/12 to 6/12. For steeper slopes (7/12–12/12), use a super slope housing:contentReference[oaicite:0]{index=0}.
Q: Is this housing air-tight?
A: Yes, it includes factory-installed gaskets and is certified to restrict airflow to less than 2CFM under ASTM-283:contentReference[oaicite:1]{index=1}.
Q: Can this be used with LED retrofit trims?
A: Yes, it is compatible with multiple LED retrofit trims such as NRMC-6S11 and NRMC-6S12:contentReference[oaicite:2]{index=2}.
Q: Is this fixture rated for damp or wet locations?
A: It is cULus listed for damp locations and can be used in wet locations with designated trims:contentReference[oaicite:3]{index=3}.
Q: What lamp types are supported?
A: This housing uses a medium base socket and supports A19, BR30, PAR30, or LED retrofits depending on the selected trim:contentReference[oaicite:4]{index=4}.
