Product Description

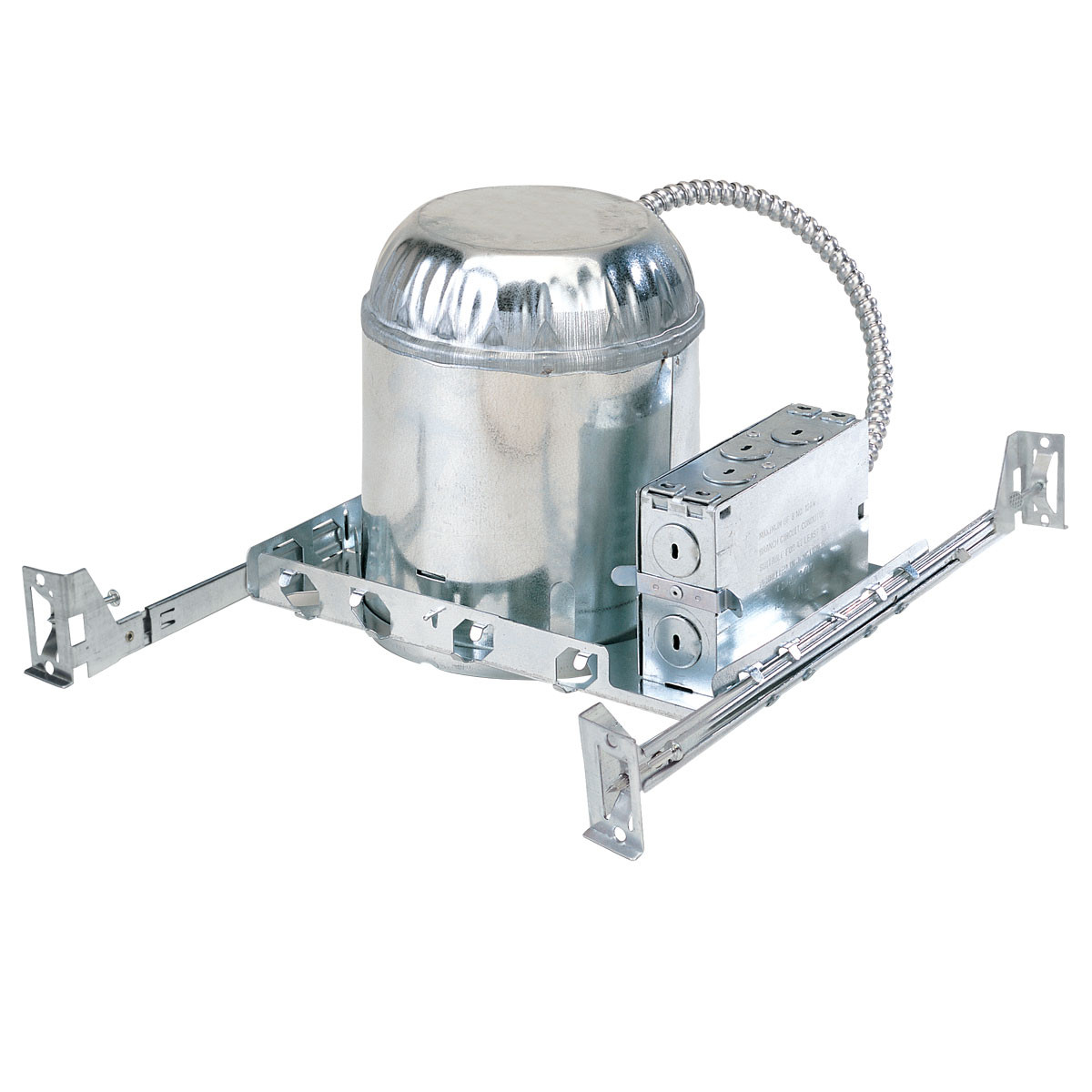

NHIC-6G24ATFL 6" CFL IC AT New Construction Housing by Nora Lighting offers an efficient and versatile solution for new construction applications in insulated ceilings. This GU24-based housing supports CFL lamps up to 26W and meets energy-efficiency and air-tight standards for code-compliant projects.
Brand: Nora Lighting
Model: NHIC-6G24ATFL
Voltage: 120V
Lamp Type: Compact Fluorescent GU24 Base
Wattage Range: 13W to 26W Max (varies by trim and lamp)
Certifications: cULus, Energy Star, ASTM-283 Air-Tight, Washington State Approved
Application: New Construction - Insulated Ceilings
Free shipping on orders over $250
Benefits of the NHIC-6G24ATFL Housing
- Energy efficient GU24 socket supports CFL lamps up to 26W
- Air-tight IC-rated housing suitable for direct contact with insulation
- Compatible with spiral and R30 CFLs or Nora LED Retrofit trims
- Adjustable bar hangers for easy joist and T-Bar ceiling alignment
Key Features
- Plaster Frame: One-piece 0.040" die-cut steel for durability
- Housing Material: 0.040" aluminum with riveted cap for ceiling thickness up to 1-5/8"
- Air-Tight Design: Factory gasketed to meet ASTM-283 standards
- Socket: Convertible GU24 twist & lock socket—floating or fixed
- Junction Box: 25 cu. in. galvanized steel with knockouts and Romex® pryouts
- Bar Hangers: 13-3/4" to 24-1/2", adjustable with alignment foot and T-Bar notch
Specifications
Technical Specs
| Input Voltage | 120V |
| Lamp Type | GU24 CFL Spiral / R30 (ordered separately) |
| Wattage | 13W to 26W Max |
| LED Retrofit Option | 12W (ordered separately, dimmable) |
Physical Specs
| Ceiling Cut-Out | 6-3/8" |
| Inside Diameter | 6" |
| Length | 10-1/8" |
| Width | 7" |
| Height | 7-1/2" |
Certifications
| Safety Listing | cULus for Dry Location |
| Wet Location (with Trims) | Yes |
| Energy Star Qualified | Yes |
| Air-Tight Compliance | Meets ASTM-283 |
Ideal Applications
- New residential construction requiring CFL or LED options
- Multifamily projects with IC insulation contact rating
- Commercial developments seeking Energy Star compliant housings
- Projects retrofitting to GU24 base requirements
Installation Tips
- Use bar hangers to attach securely between joists or T-Bar ceilings
- Confirm housing is in contact with insulation for IC-rated applications
- Convert socket to floating if desired—no tools needed
- Avoid dimming unless using compatible dimmable LED retrofit lamp
Frequently Asked Questions
Q: What type of lamps are compatible with this housing?
A: It supports 13W–26W GU24 base CFL spiral or R30 lamps, as well as Nora LED retrofits (ordered separately).
Q: Is this fixture safe for use in insulated ceilings?
A: Yes, it is IC-rated for direct contact with thermal insulation.
Q: Can this fixture be used in wet locations?
A: Only when installed with designated wet-rated trims.
Q: Can I use a dimmer with this housing?
A: Dimming is not recommended for self-ballasted CFLs. However, Nora’s LED retrofits are dimmable.
Q: Does this product meet air-tight regulations?
A: Yes, it meets or exceeds ASTM-283 Air-Tight requirements.
Q: What is the maximum ceiling thickness supported?
A: The housing supports ceiling materials up to 1-5/8" thick.
