Product Description

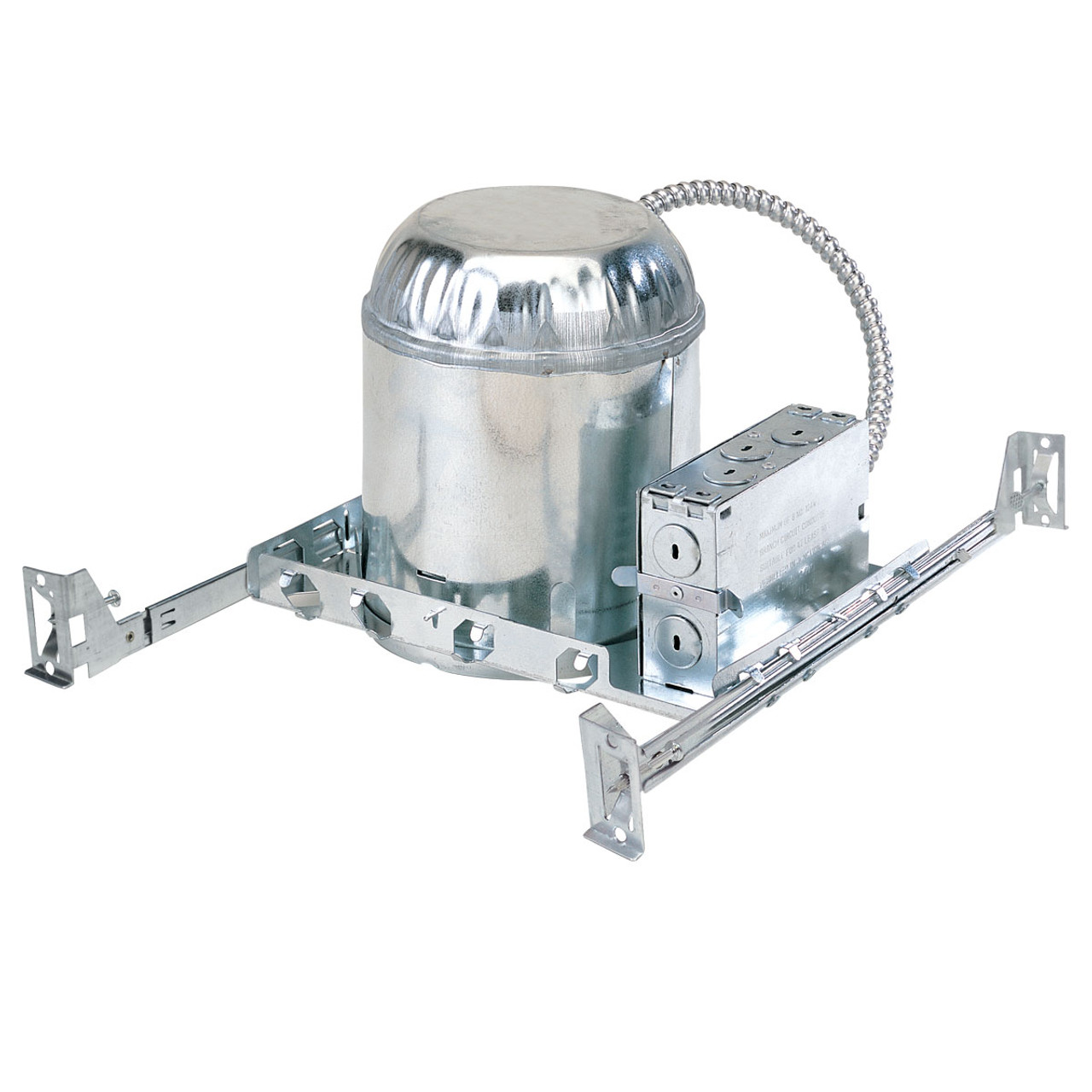

NHIC-17QNBAT by Nora Lighting is a 6" IC-rated new construction housing with air-tight design, ideal for insulated ceilings. This model features a floating medium base socket for compatibility with gimbal rings, eyeballs, and trims equipped with integrated socket brackets, making it perfect for directional and specialty lighting applications.
- Type: 6" IC Air-Tight New Construction Housing
- Socket: Floating Medium Base (No Bracket)
- Voltage: 120V
- Wattage: Up to 90W (trim dependent)
- Air-Tight: Yes, meets ASTM-283
- Free shipping on orders over $250
Why Choose NHIC-17QNBAT?
- Floating Socket Design: Ideal for gimbal, eyeball, and other trims with socket brackets
- IC Rated: Suitable for direct contact with insulation (excluding spray foam)
- Energy Savings: Factory-installed gaskets ensure <2CFM airflow restriction
- Quick Install: Pre-wired junction box with quick connects and captive nail hangers
Key Features
- Socket: Floating medium base, installs directly to trim bracket
- Housing: 0.036" galvanized steel with riveted cap
- Junction Box: 25 cu. in. with 7 knockouts and 4 Romex pryouts
- Bar Hangers: Adjustable from 13-3/4" to 24-1/2" with captive nails

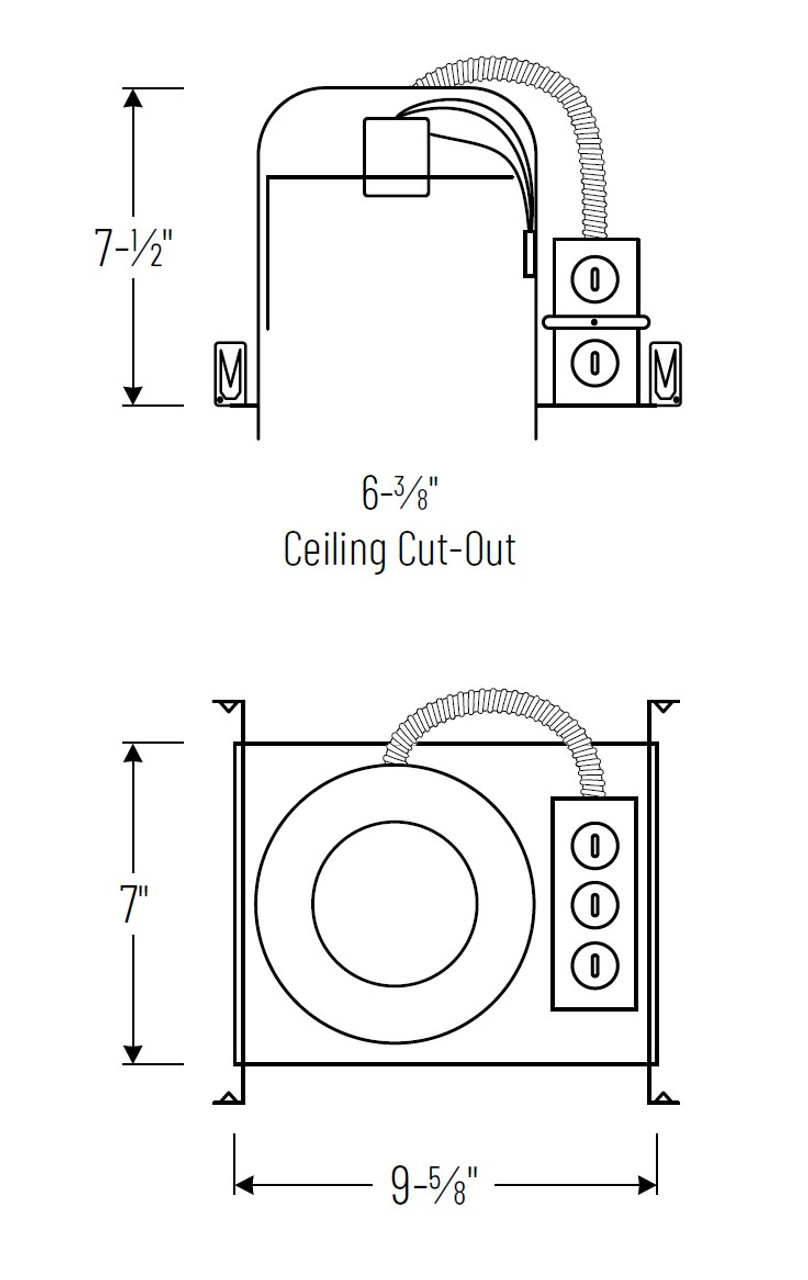

- Ceiling Thickness: Accommodates 5/8" to 1-1/4"
- Thermal Protection: UL-listed 90°C thermal cutoff
Specifications
Technical Specs
| Voltage | 120V |
| Socket Type | Medium Base (Floating) |
| Wattage | 90W Max (varies by trim) |
| Ceiling Compatibility | Insulated ceilings (IC Rated) |
| Ceiling Thickness | 5/8" to 1-1/4" |
Construction & Compliance
| Material | Galvanized steel housing, steel die-cut frame |
| Air-Tight Rating | ASTM-283 compliant (<2CFM) |
| Approvals | cULus or cETLus Listed, Washington State Approved, NYC Calendar #43895 |
| Junction Box | 25 cu. in. with 7 knockouts, pre-wired with quick connects |
Application Examples
- New construction in residential or light commercial ceilings
- IC-rated plenum installations
- Gimbal or adjustable lighting configurations
- Showers, bathrooms (with designated trims)
Installation Tips
- Install with 13-3/4" to 24-1/2" adjustable bar hangers using captive nails
- Ensure floating socket is securely attached to trim bracket before mounting
- Use quick connects in the junction box for faster wiring
- Not rated for direct contact with spray foam insulation
Frequently Asked Questions
Q: What trims is the NHIC-17QNBAT compatible with?
A: It is ideal for use with gimbal, eyeball, and trims that include integrated socket brackets.
Q: Is this housing suitable for direct insulation contact?
A: Yes, it is IC-rated for direct contact with standard insulation (not spray foam).
Q: Can I use this in damp or wet locations?
A: Yes, it is listed for damp locations and can be used in wet areas with appropriate trims.
Q: What is the maximum wattage supported?
A: It supports up to 90 watts, though wattage may vary depending on the trim installed.
Q: How does the floating socket differ from bracketed models?
A: The floating socket attaches directly to trims, allowing greater flexibility in directional lighting setups.
Q: Is it air-tight certified?
A: Yes, it is factory sealed with gaskets to meet ASTM-283 Air-Tight standards.
