NFBIC-5LMRATA 5" Fire Box IC AT Hsg Ded LED

Product Description

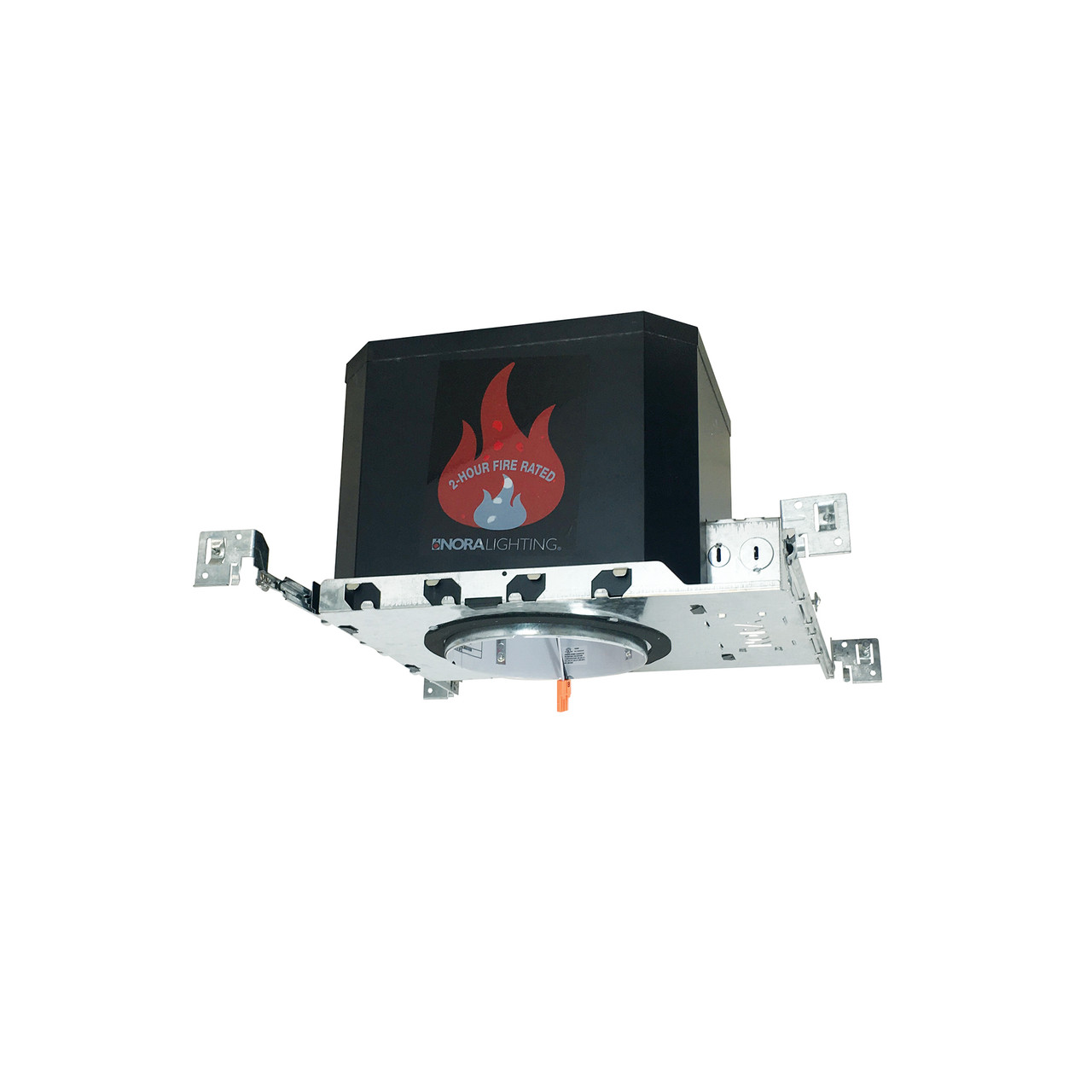

NFBIC-5LMRATA 5" Fire Box IC Air-Tight Housing (Dedicated LED) by Nora Lighting is a specification-grade, two-hour fire-rated new-construction housing. Its double-wall design with non-combustible fiber insulation helps prevent flame and smoke passage while dampening sound between floors—ideal for multifamily, hospitality, and commercial projects seeking code-compliant protection and reliable LED performance.

Product Benefits

• Code-compliant protection: two-hour fire rating helps maintain floor/ceiling assembly integrity.
• Energy-efficient envelope: Air-Tight gaskets reduce conditioned-air leakage.
• Sound dampening: non-combustible fiber fill minimizes noise transfer between levels.
• Fast, flexible installs: wide-spanning bar hangers, through-branch circuit wiring, and quick connectors.

Key Features

• Double-wall steel construction with non-combustible insulation
• Pre-wired junction box with multiple knockouts and snap-on covers
• Quick-connect terminals for power, neutral, and ground
• Listed wet location (with compatible trims/reflectors)
• Thermal protection rated 110 °C

Specifications

Technical Specs

Input Voltage	120V
IC Rating	IC – direct contact with insulation
Air-Tight	<2 CFM per ASTM E283
Thermal Protection	UL thermal protector, 110 °C
Wiring	Through branch circuit (4-in/4-out)

Physical Specs

Bar Hangers	Adjustable 13-3/4" to 24-1/2" with captive nails & alignment feet
Ceiling Thickness	Up to 1-3/4"
Housing Material	22-gauge galvanized steel; double-wall with fiber insulation
Junction Box	Multiple knockouts; quick-connect terminals

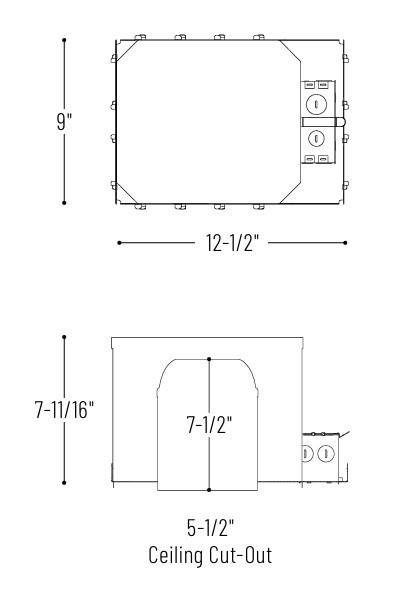

Overall Length	12-1/2" (nom.)
Width	9" (nom.)
Height	7-1/2" (nom.)
Ceiling Cut-Out	5-1/2" (nom.)

Compliance & Safety

Fire Rating	Two-hour (UL L500 Series floor-ceiling assemblies)
Wet Location	cULus Listed (with compatible reflectors)
Standards	ANSI/UL 263; ANSI/UL 1598
Air-Tight	Meets/exceeds ASTM E283

Application Examples

• Apartment corridors, unit entries, and living spaces requiring a two-hour fire barrier
• Hotels and dormitories where sound attenuation is important
• Mixed-use shells and offices needing IC Air-Tight housings
• Retail and education projects with through-branch wiring requirements

Installation Tips

• Follow UL L500 Series assembly details; maintain manufacturer spacing: max 1 fixture / 25 sq ft and min 3 ft between fixtures.
• Use the included T-bar notch for suspended ceilings or align bar-hanger feet to joists for wood construction.
• Land conductors in the pre-wired junction box and use quick-connect terminals for line, neutral, and ground.
• Verify wet-location listing with the selected reflector/trim and seal ceiling interface as required.
• Always comply with local code and the project’s fire-resistance design.

Frequently Asked Questions

What makes this a “fire box” housing?
A double-wall, fiber-insulated construction provides a two-hour fire rating to help maintain the floor/ceiling assembly’s integrity.

Is this housing IC and Air-Tight?
Yes. It is IC rated for direct contact with insulation and has factory gaskets tested to <2 CFM per ASTM E283.

Can I use it in wet locations?
Yes, when paired with compatible reflectors/trims the housing is listed for wet locations.

How far apart should fixtures be spaced?
Follow the UL classification: no more than one fixture per 25 sq ft and maintain at least 3 ft between fixtures.

What ceiling types are supported?
Bar hangers adjust from 13-3/4" to 24-1/2" and include alignment feet for joists or T-bar grids; the housing fits ceilings up to 1-3/4" thick.

Does it support through-branch wiring?
Yes. The pre-wired junction box is rated for through-branch circuit connections.

Which LED modules or trims are compatible?
Use compatible Nora 5" reflectors/LED trims per project requirements (contact us if you want a curated list for your application).
