Product Description

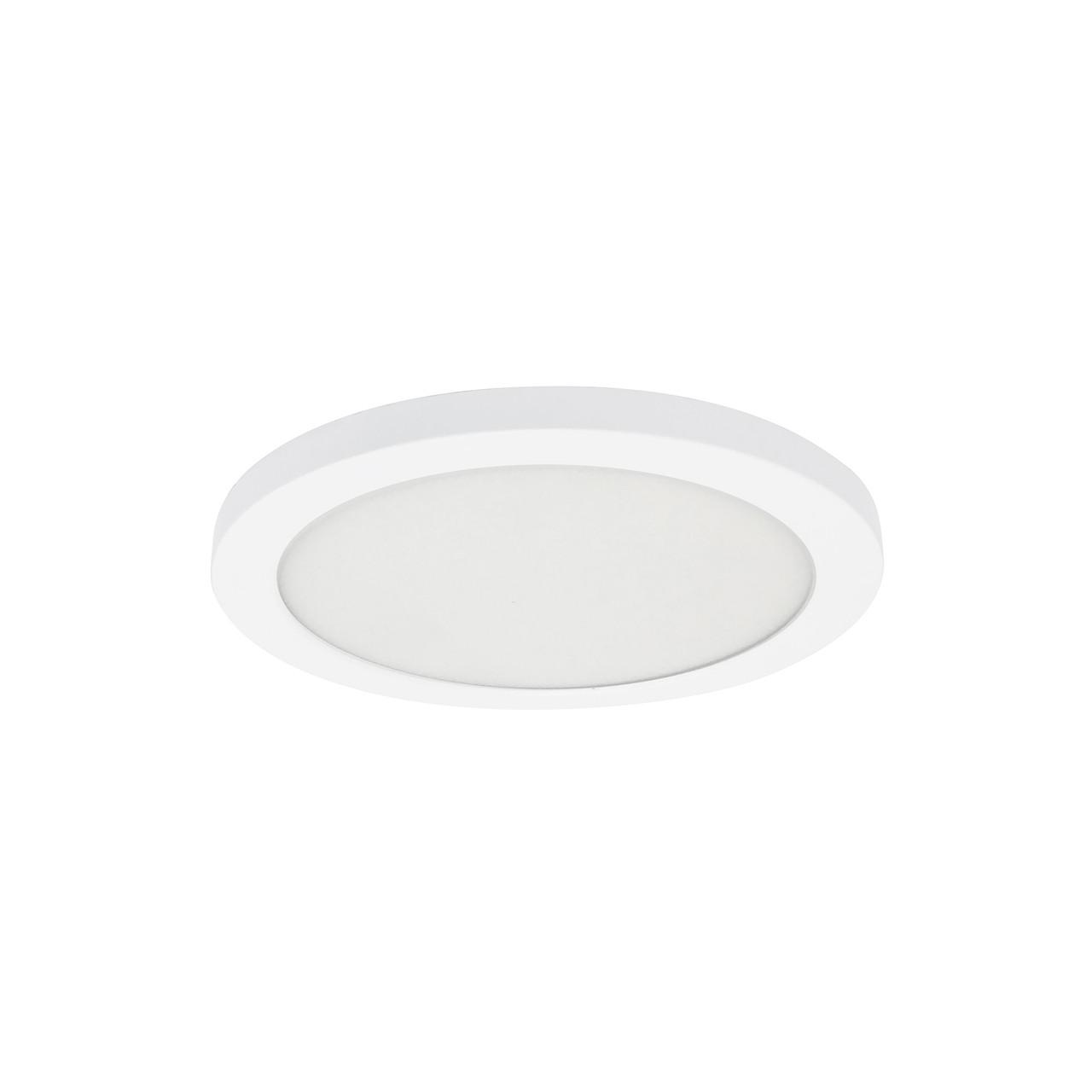

NELOCAC-6RP935W 6" ELO+ Surface Mounted LED 700LM / 12W 3500K 90+ CRI 120V TRIAC/ELV offers a sleek, ultra-thin 1/2" profile designed for surface mounting or retrofit applications. Delivering high-quality illumination with 90+ CRI and a warm 3500K color temperature, this ELO+ fixture is ENERGY STAR certified and Title 24 JA8-2019 compliant, making it ideal for residential or commercial projects requiring efficiency and performance.
- Lumen Output: 700 lumens
- Wattage: 12W
- Color Temperature: 3500K
- CRI: 90+
- Mounting: Surface mount or retrofit
- Dimming: Triac / ELV
- Certification: ENERGY STAR, Title 24 JA8-2019
- Shipping: Free shipping on orders over $250
Product Benefits

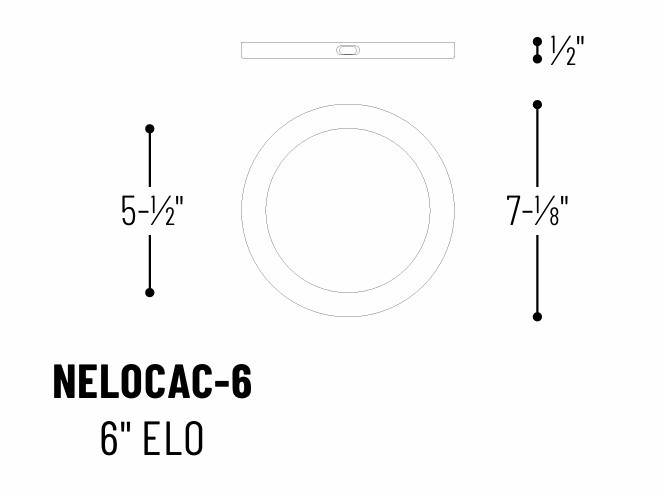

- Sleek, ultra-thin profile with only 1/2" depth for a modern, unobtrusive look.
- Flexible installation for new or retrofit applications using the included kit.
- Superior color rendering with 90+ CRI for true-to-life illumination.
- Energy efficiency with low 12W power usage and ENERGY STAR certification.
Key Features
- Construction: Surface mounted luminaire with integral driver.
- Mounting: Installs over junction boxes or retrofits into 5" or 6" housings with torsion spring kit.
- Lens: Diffused lens for uniform light distribution.
- Optional Accessories: Interchangeable magnetic decorative rings (Black, Brushed Nickel, Chrome, Matte Powder White).
- Listings: cETLus listed, FCC certified, Title 24 JA8-2019 compliant.
Specifications
| Performance Specs | |
|---|---|
| Catalog Number | NELOCAC-6RP935W |
| Lumen Output | 700 lm |
| Wattage | 12W |
| Color Temperature | 3500K |
| CRI | 90+ |
| Input Voltage | 120V |
| Dimming | Triac / ELV |
| Mounting | Surface mount or retrofit |
| Operating Temperature | 0°C to 45°C |
| Certifications | ENERGY STAR, Title 24 JA8-2019, cETLus, FCC |
| Warranty | 5-Year Limited |
Application Examples
- Residential ceiling lighting with a modern, flush-mount design.
- Commercial corridors or lobbies requiring efficient and sleek fixtures.
- Closet and utility spaces compliant with NEC 410.16 requirements.
- Retrofit projects replacing recessed housings with surface-mount solutions.
Installation Tips
- Mount directly over a junction box for surface installation.
- Use included retrofit kit for 5" or 6" recessed housing applications.
- Consider decorative magnetic trim rings for alternate finish options.
- Ensure compatibility with Triac or ELV dimmers from approved list.
FAQ
Q: What is the lumen output of this 6" ELO+ model?
A: It delivers 700 lumens at 12W.
Q: Can this fixture be used in damp locations?
A: Yes, it is cETLus listed for damp locations.
Q: Does it support dimming?
A: Yes, it is dimmable with Triac or ELV dimmers.
Q: Are decorative rings included?
A: No, decorative magnetic rings are optional and sold separately.
Q: Is this fixture Title 24 compliant?
A: Yes, the ELO+ version meets Title 24 JA8-2019 high efficacy requirements.
Q: Can it be retrofitted into existing recessed housings?
A: Yes, it includes a retrofit kit with a medium base socket adapter and torsion springs for 5" or 6" housings.
