Product Description

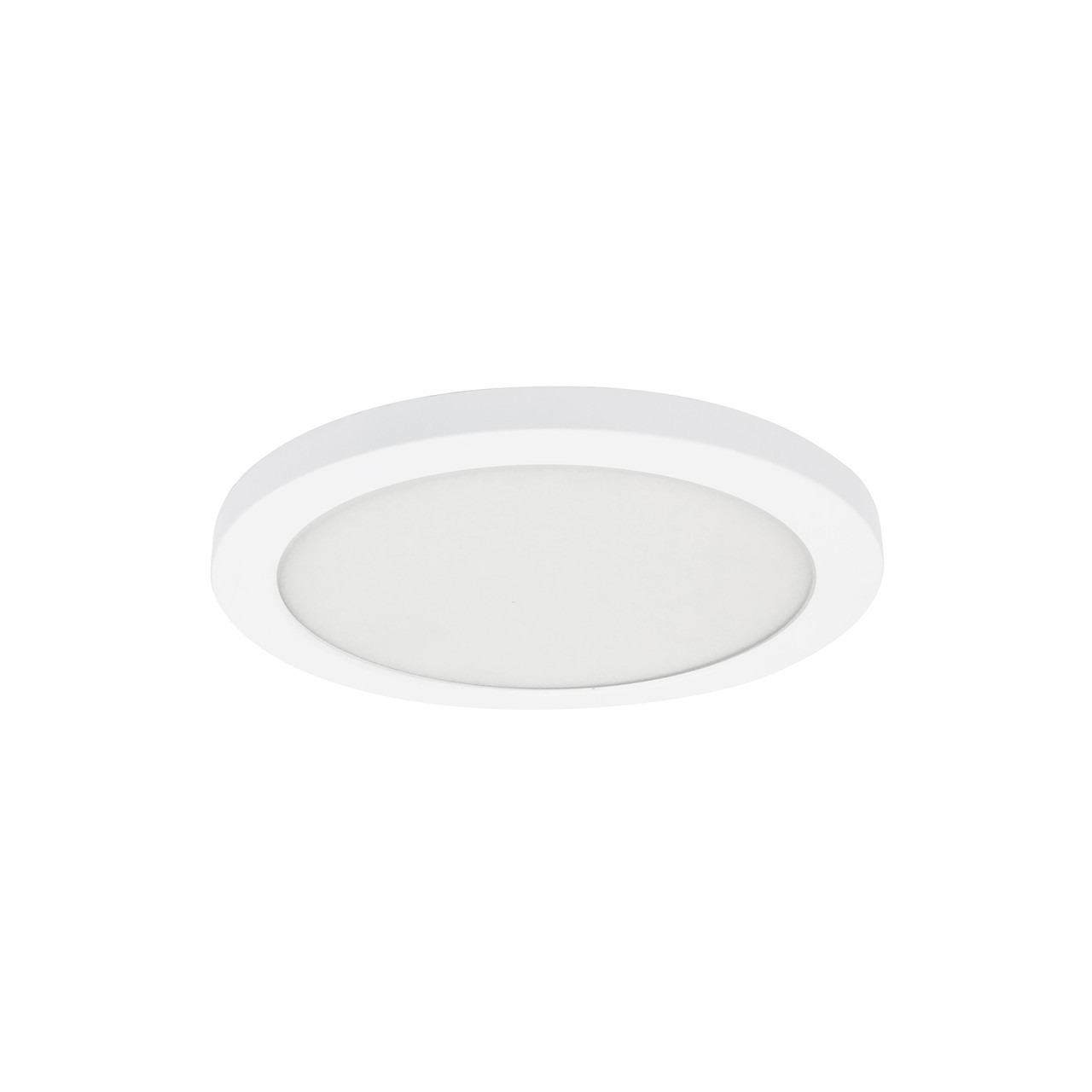

NELOCAC-6RL130W 6" ELO HL Surface Mounted LED 3000K White by Nora Lighting is a low-profile, high-efficiency LED luminaire designed for easy surface mounting or retrofit installation. Delivering 1080 lumens at 3000K and 80 CRI, this energy-efficient fixture provides bright, even illumination in a thin ½-inch design. Perfect for residential or commercial applications, it offers a modern appearance and reliable performance backed by ENERGY STAR® certification and a 5-year limited warranty.
Brand: Nora Lighting
Model: NELOCAC-6RL130W
Series: ELO Surface Mount LED
Size: 6 Inches
Lumen Output: 1084 Lumens
Wattage: 13.96W
Color Temperature: 3000K
CRI: 80+
Voltage: 120V
Finish: White
Free shipping on orders over $250
Product Benefits
- Ultra-thin ½" design provides a modern, flush appearance ideal for any ceiling surface.
- Energy-efficient LED technology with 1084 lumens output and 78 lumens per watt efficacy.
- Compatible with Triac or ELV dimmers for smooth dimming performance.
- Can retrofit into 5" or 6" recessed housings with included torsion spring kit and socket adapter.
Key Features
- Mounting Flexibility: Easily mounts to standard or fire-rated junction boxes or retrofits into existing housings.
- Integrated Driver: Simplifies installation with no external power supply required.
- High Efficiency: Produces 1084 lumens while consuming only 13.96 watts.
- Damp Location Rated: Suitable for bathrooms, kitchens, and covered outdoor spaces.
- Certified Performance: ENERGY STAR®, FCC, and cETLus listed for reliability and efficiency.
Technical Specifications
| Technical Specs | |
|---|---|
| Model Number | NELOCAC-6RL130W |
| Voltage | 120V |
| Wattage | 13.96W |
| Lumen Output | 1084 lm |
| Efficacy | 78 lm/W |
| Color Temperature | 3000K |
| CRI | 80+ |
| Beam Spread | 114° Flood |
| Spacing Criteria | 1.3 (0°-180°) / 1.3 (90°-270°) |
| Dimming | Triac (Leading Edge) or ELV (Trailing Edge) |
| Operating Temp | 0°C to 45°C |
Physical Specs
| Physical Specs | |
|---|---|

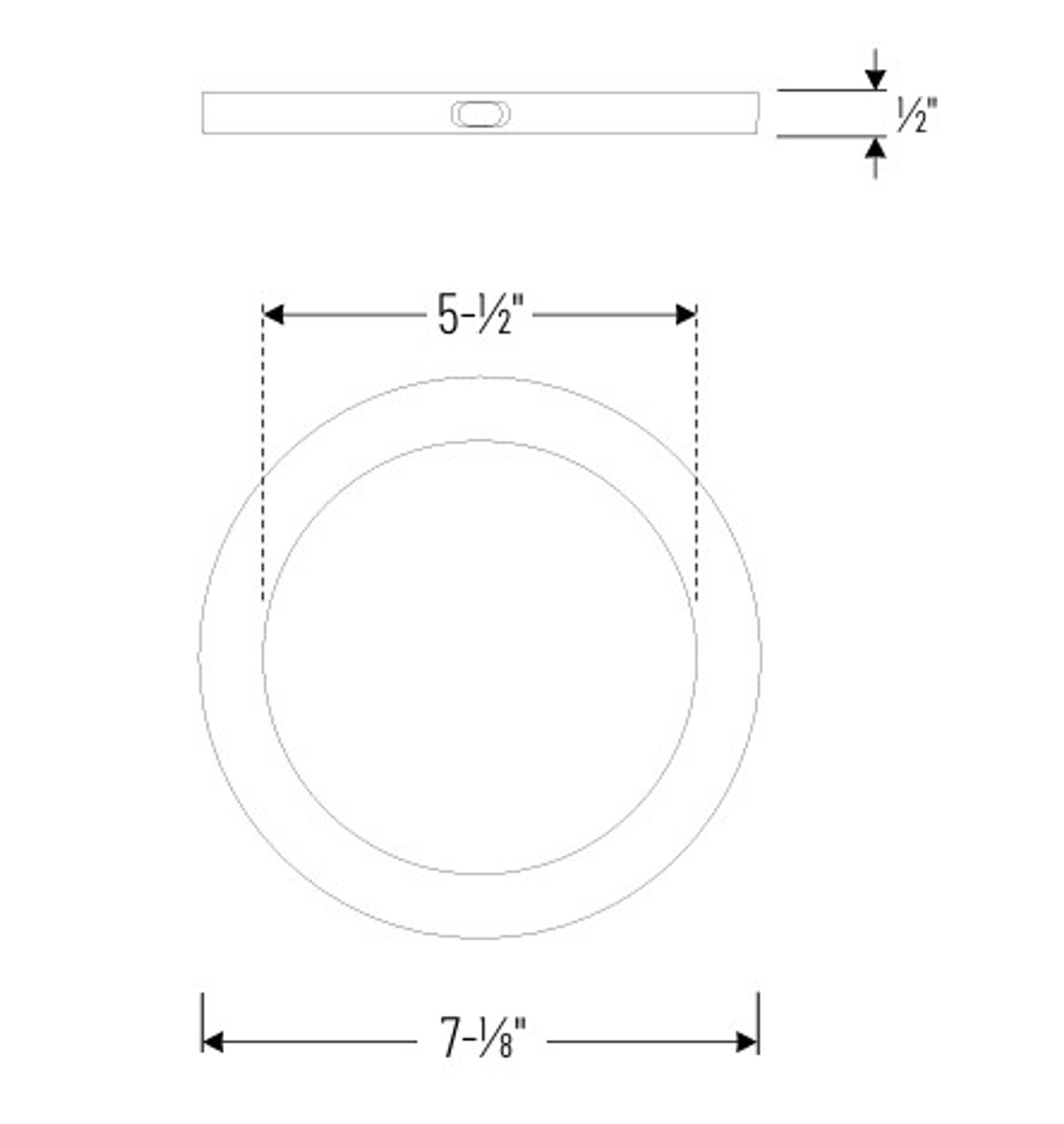

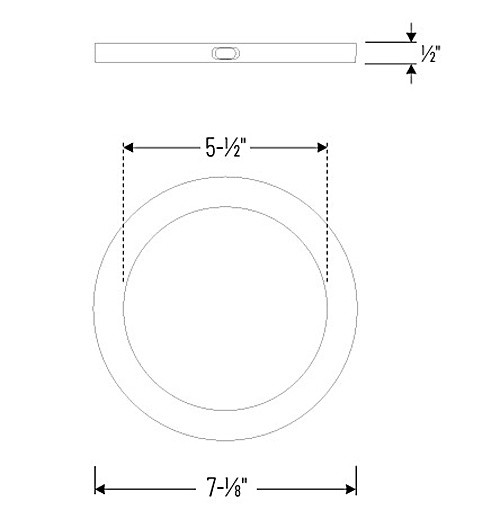

| Fixture Depth | ½ inch |
| Diameter | 7-1/8 inches |
| Mounting Bracket Diameter | 5-1/2 inches |
| Housing Type | Surface Mount or Retrofit with Torsion Springs |
| Finish | Matte White |
Performance Specs
| Performance | |
|---|---|
| Photometric Test No. | NTS134R1 |
| Lumens | 1084 |
| Efficacy | 78 lpw |
| Beam Spread | 114° Flood |
| Max Footcandles (at 4 ft) | 22.9 fc |
| Listings | cETLus, ENERGY STAR®, FCC |
| Warranty | 5-Year Limited |
Application Examples
- Residential living rooms, kitchens, and hallways
- Multi-unit housing and apartments
- Hospitality applications such as hotels or lounges
- Commercial spaces requiring uniform general illumination
- Closet lighting per NEC Section 410.16(A)(1) and (C)(1)
Installation Tips
- Mount directly to a standard or fire-rated junction box using the included steel bracket.
- For retrofit applications, use the included torsion spring kit and medium base socket adapter.
- Compatible with Triac or ELV dimmers; verify compatibility on Nora Lighting’s “Resources” page.
- Ensure secure ceiling attachment for vibration-prone installations.
Frequently Asked Questions
Q: Can this fixture be installed in damp locations?
A: Yes, the NELOCAC-6RL130W is cETLus listed for damp locations.
Q: Is the ELO fixture dimmable?
A: Yes, it supports both Triac and ELV dimming systems.
Q: Can it retrofit into existing recessed housings?
A: Yes, it includes a retrofit kit and torsion springs for 5" or 6" housings.
Q: What is the expected light color for 3000K?
A: A warm white tone, ideal for residential and hospitality spaces.
Q: What certifications does this product have?
A: ENERGY STAR®, FCC, and cETLus listed, ensuring safety and efficiency.
Q: Does this model support decorative rings?
A: Decorative rings are available for the ELO+ series only; the ELO model is supplied in white.
