Product Description
NELOCAC-11R30W 11" ELO LED Surface Mount from Nora Lighting provides a sleek, ultra-low-profile solution for residential and commercial ceiling lighting. Emitting 1700 lumens at a warm 3000K color temperature, this 1/2" thin luminaire installs easily over standard junction boxes and is ideal for both new construction and retrofit applications.
- Brand: Nora Lighting
- Model: NELOCAC-11R30W
- Light Output: 1700 lumens
- Wattage: 24W
- Color Temperature: 3000K (Warm White)
- CRI: 80+
- Voltage: 120V
- Dimming: Triac or ELV compatible
- Free shipping on orders over $250
Benefits of the NELOCAC-11R30W ELO Surface Mount
- Ultra-thin 1/2” profile offers modern style and minimal intrusion
- High lumen output delivers bright, efficient lighting for general use
- Easy installation over junction boxes or into recessed housings (retrofit kit sold separately)
- ENERGY STAR certified for quality and energy efficiency
Key Features
- Beam Spread: 115° wide flood
- Color Temperature: Dedicated 3000K for warm ambiance
- Mounting: Surface or retrofit with optional torsion springs
- Material: Durable housing with integral driver
- Certifications: ENERGY STAR, cETLus, FCC, JA8-2019 (for ELO+), 5-Year Warranty
Specifications
Technical Specs
| Voltage | 120V |
| Wattage | 24W |
| Lumens | 1700lm |
| CRI | 80+ |
| CCT | 3000K |
| Beam Angle | 115° Flood |
| Dimming | Triac / ELV compatible |

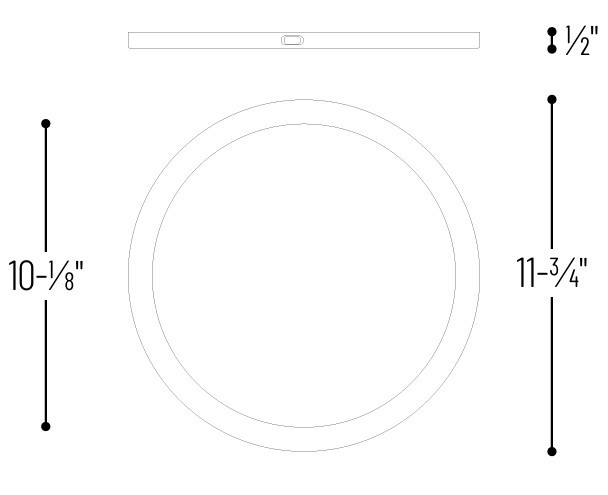

Physical Specs
| Trim Diameter | 11-3/4" |
| Fixture Height | 1/2" |
| Cut-Out Size | 10-1/8" |
| Finish | White |
Ideal Applications
- Residential kitchens, hallways, bedrooms
- Commercial offices and retail stores
- Multi-family housing and apartments
- Closets and utility spaces (NEC compliant)
Installation Tips
- Turn off power at breaker before beginning installation
- Mount directly to junction box using included steel bracket
- For recessed applications, use retrofit kit with torsion spring and E26 socket adapter
- Ensure even contact with ceiling for flush finish
Frequently Asked Questions
Q: What is the difference between ELO and ELO+?
A: ELO uses 80+ CRI and fixed trim; ELO+ offers 90+ CRI with magnetic decorative trim options (sold separately):contentReference[oaicite:0]{index=0}.
Q: Can this be installed in a standard 4" junction box?
A: Yes, this model mounts directly to standard or fire-rated junction boxes:contentReference[oaicite:1]{index=1}.
Q: Is it suitable for use in damp locations?
A: Yes, the fixture is cETLus listed for damp locations:contentReference[oaicite:2]{index=2}.
Q: Does the product support dimming?
A: Yes, compatible with Triac or ELV dimmers. Refer to Nora Lighting's dimmer compatibility list online.
Q: Can this be installed in closets?
A: Yes, it is rated for use in closets per NEC 410.16(A)(1) and (C)(1):contentReference[oaicite:3]{index=3}.
Q: What accessories are available?
A: Decorative rings (for ELO+ only) in black, brushed nickel, chrome, and matte white are available separately.
