Product Description

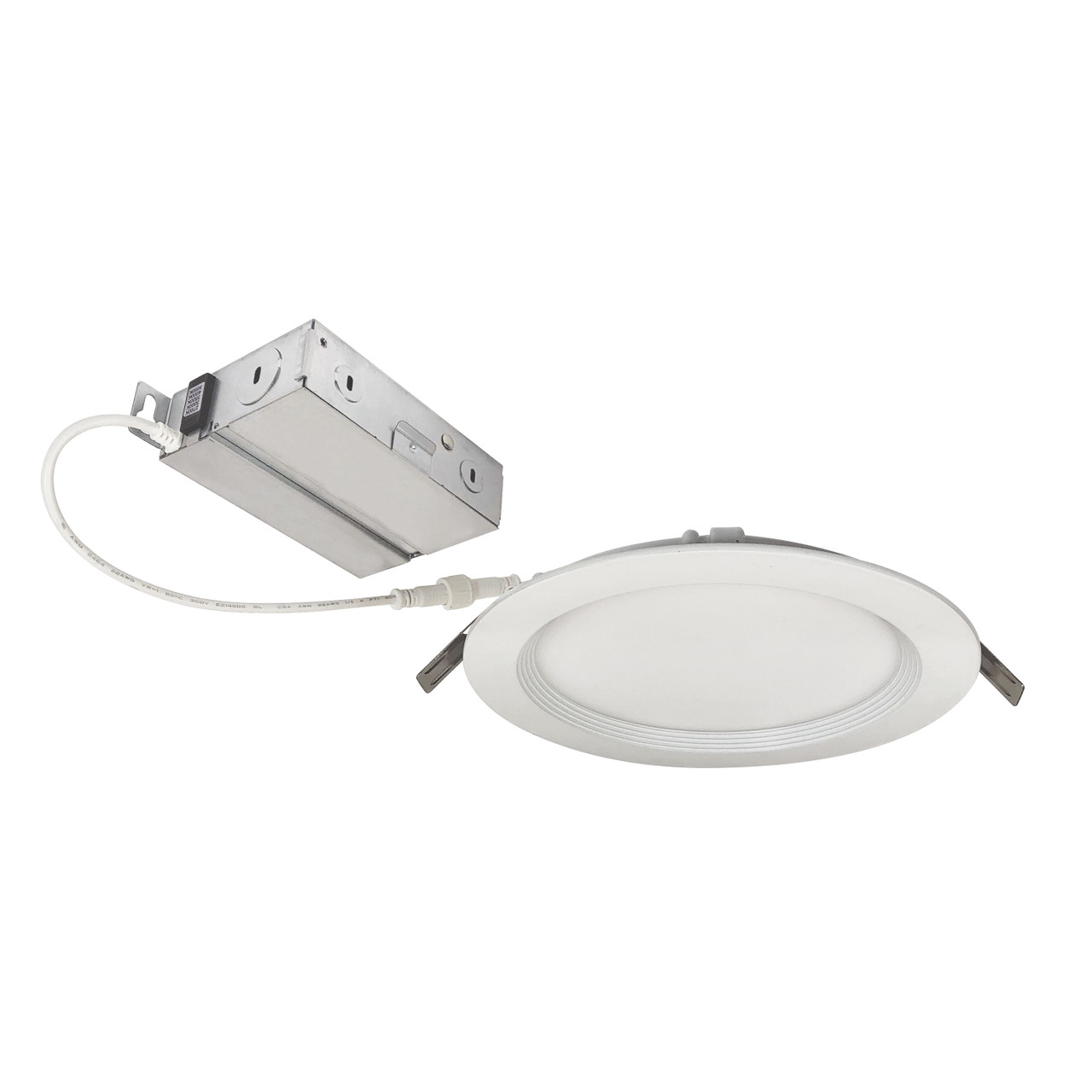

NEFLINTW-R6MPWLE4 6" E-Series FLIN Round LED Downlight by Nora Lighting offers sleek, low-profile performance with selectable color temperatures for maximum design flexibility. Designed for quick installation without a housing, this recessed fixture features a junction box with integrated CCT switch and wide flood beam, making it ideal for new construction and retrofit projects alike.
- Brand: Nora Lighting
- Model: NEFLINTW-R6MPWLE4
- Lumens: Up to 1323lm
- Wattage: 13.5W
- Color Temperature: Selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- Voltage: 120-277V
- Certification: ENERGY STAR, Title 24 JA8-2022, cETLus Wet Location
- Free shipping on orders over $250
Benefits of the NEFLINTW-R6MPWLE4 Downlight
- Selectable CCT offers five color temperatures with a sliding switch on the junction box
- No housing required for quick installs and reduced labor costs
- Energy-efficient with up to 1323 lumens at just 13.5W
- Rated for wet locations, suitable for bathrooms and covered exteriors
Key Features
- Selectable Color Temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
- Beam Spread: 115° Wide Flood
- CRI: 90+ for accurate color rendering
- Junction Box: Includes quick-connect and Kelvin switch
- Air-Tight: Meets ASTM E283 standards
- Installation: Spring clips secure fixture in ceiling; accepts 3/8" to 15/16" ceiling thickness
Specifications
Technical Specs
| Input Voltage | 120-277V |
| Wattage | 13.5W |
| Lumens | Up to 1323lm |
| Efficacy | Up to 97 lm/W |
| Dimming | Triac or ELV, down to 10% |
| Beam Angle | 115° Wide Flood |
Performance Specs (Selectable CCT)
| 2700K | 1199 lm |
| 3000K | 1220 lm |
| 3500K | 1289 lm |
| 4000K | 1306 lm |
| 5000K | 1323 lm |

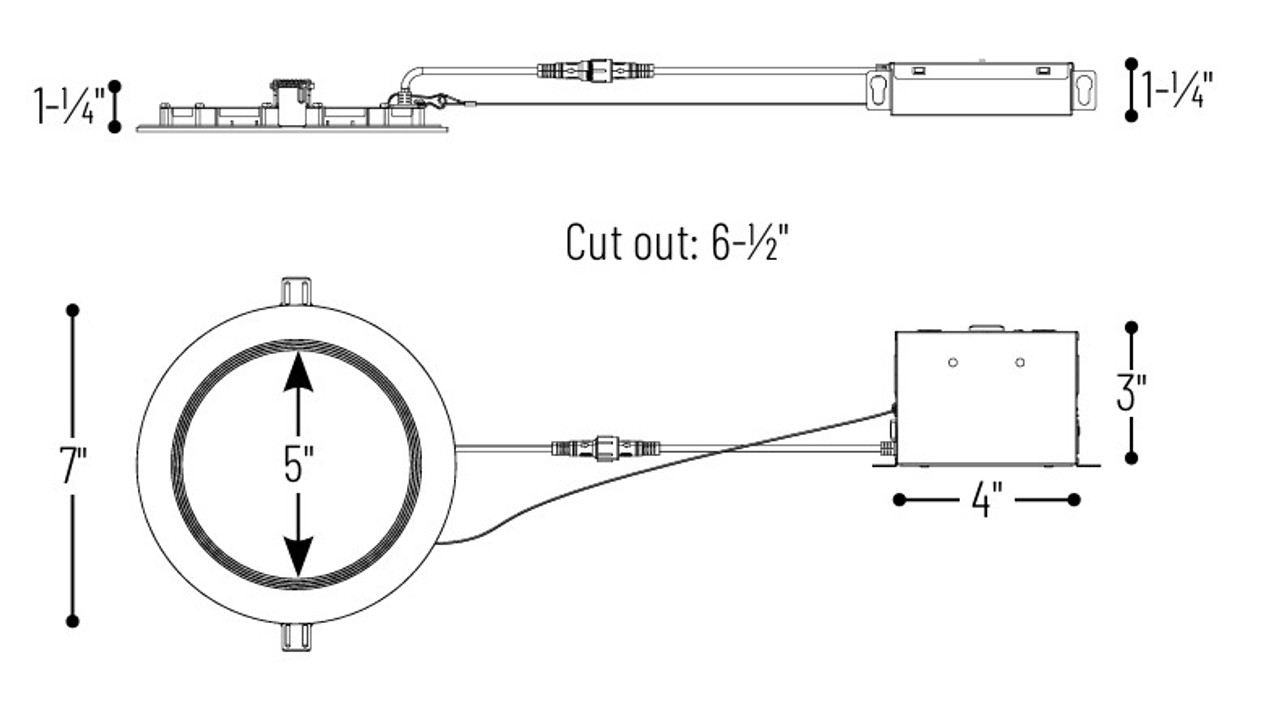

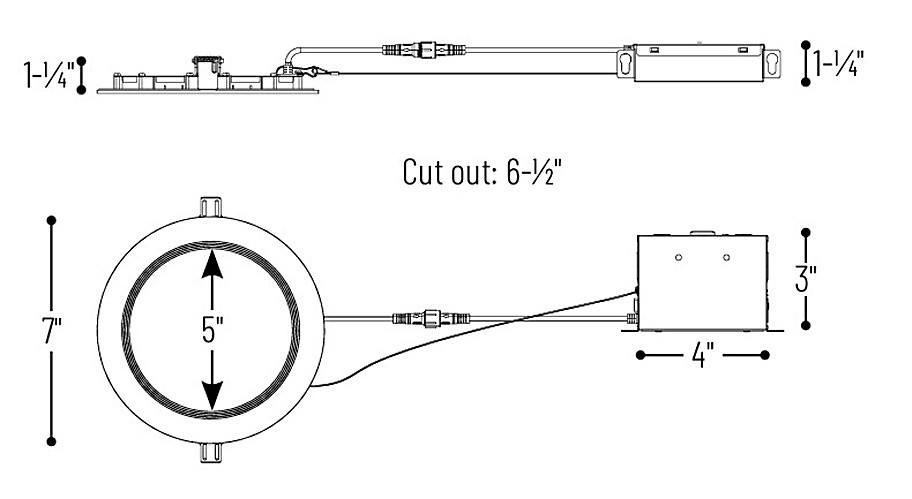

Physical Specs
| Ceiling Cut-Out | 6-1/2" |
| Housing Depth | 1-1/4" |
| Finish | Matte Powder White |
| Housing Material | Die-cast aluminum |
Ideal Applications
- Residential kitchens, living areas, and bathrooms
- Commercial retail and office ceilings
- Multi-unit housing developments
- Hospitality and healthcare environments
- Covered exterior soffits
Installation Tips
- Turn off power before installation
- Use included spring clips to secure fixture to ceiling
- Select desired CCT using sliding switch on junction box
- No recessed housing required – install directly into drywall
- Use optional frame-in kits for new construction
Frequently Asked Questions
Q: How many color temperatures can I choose from?
A: The fixture includes a 5-position switch for selecting 2700K, 3000K, 3500K, 4000K, or 5000K color temperature:contentReference[oaicite:0]{index=0}.
Q: Is this fixture IC rated?
A: Yes, it's air-tight rated and suitable for direct contact with insulation without clearance:contentReference[oaicite:1]{index=1}.
Q: Does this require a recessed housing?
A: No housing is needed, making it ideal for remodel or shallow plenum ceilings:contentReference[oaicite:2]{index=2}.
Q: Is the light dimmable?
A: Yes, it can be dimmed to 10% with Triac or ELV dimmers.
Q: Is it suitable for wet locations?
A: Yes, the NEFLINTW-R6MPWLE4 is cETLus listed for wet locations, perfect for bathrooms and covered exteriors:contentReference[oaicite:3]{index=3}.
Q: Can I use this fixture in commercial buildings?
A: Yes, the 120-277V input makes it compatible with both residential and commercial electrical systems.
