Product Description

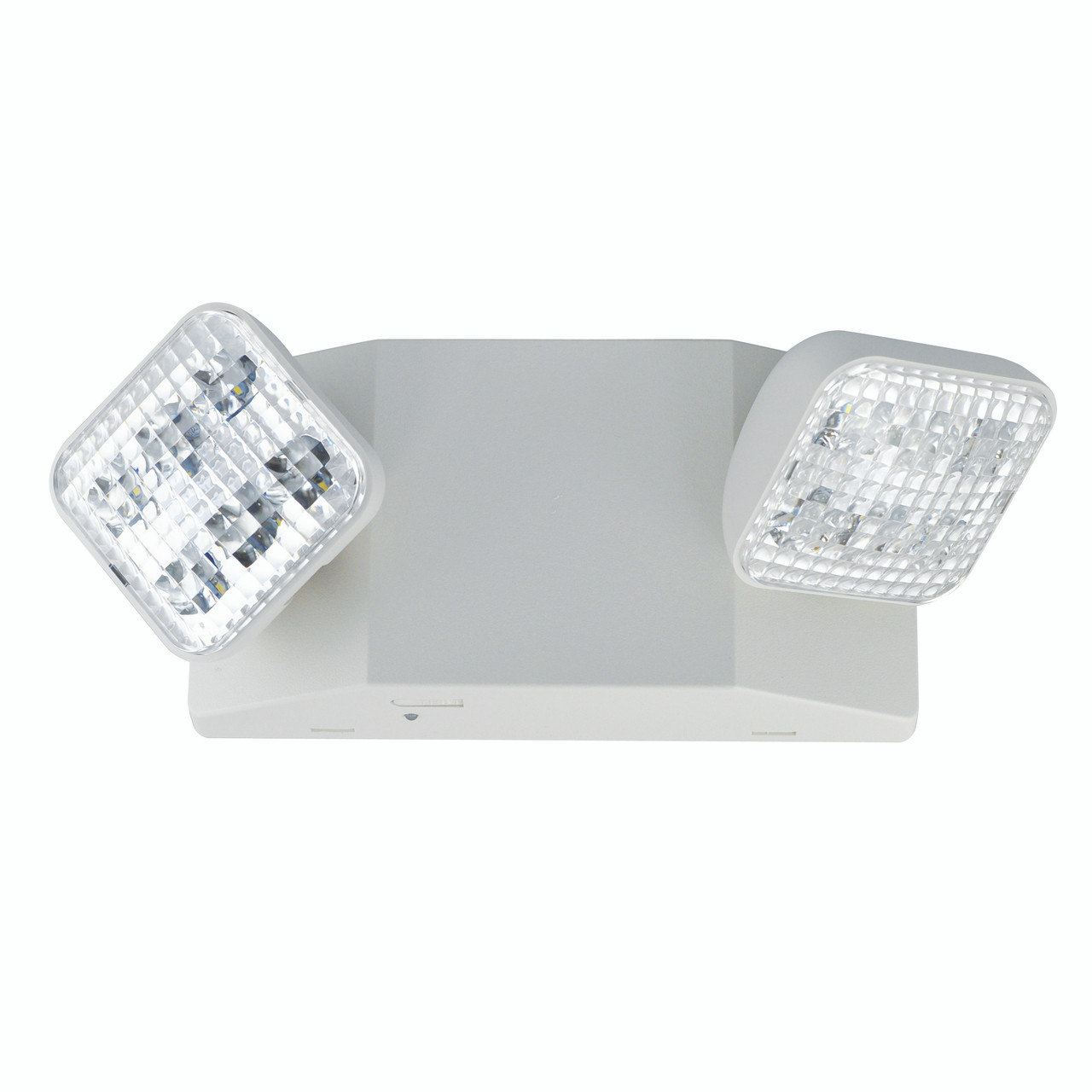

The NE-700LEDRCW Emergency LED Light With Remote Capability - White is a compact and reliable solution for emergency lighting. Featuring dual adjustable LED heads and self-diagnostics, this luminaire provides 90 minutes of illumination in the event of a power failure. Its remote capability allows connection to additional emergency lights, ensuring enhanced safety in residential, commercial, and institutional settings.
Key Features
- Dual adjustable LED heads providing 100 lumens each for clear egress lighting.
- Remote capability with an additional 3.6V/3W battery for connecting extra emergency lights.
- Self-diagnostic and self-testing functionality for hassle-free maintenance.
- Snap-together thermoplastic ABS housing with 5VA flame retardant for durability.
- Test switch and charge rate indicator for easy operation.
- Maintenance-free, rechargeable Ni-Cad batteries ensuring long-term reliability.
- Operates for a minimum of 90 minutes during power outages.
- Ceiling or wall-mountable design with top and side knockouts for conduit applications.
Specifications
- Lumen Output: 2 x 100 lumens
- Wattage: 1W
- Voltage: 120-277V
- Color Temperature: 6000K
- Battery Type: Two Ni-Cad 3.6V 3W batteries
- Operating Temperature: 10°C to 40°C (50°F to 104°F)
- Dimensions: 12-1/4” x 10” x 5-1/8”
- Certifications: cULus Listed, NFPA 70, NFPA 101 compliant, damp location rated
Installation Tips
- Mount securely on a ceiling or wall using the included knockouts for conduit connections.
- Ensure proper placement for optimal egress illumination along pathways.
- Test regularly using the built-in test switch to confirm functionality.
- Allow 24 hours for the batteries to fully recharge after installation or discharge.
Frequently Asked Questions
Q: How long does the emergency light operate during a power failure?
A: The light operates for a minimum of 90 minutes when fully charged.
Q: What is the lumen output of each LED head?
A: Each head provides 100 lumens for effective path illumination.
Q: Can I connect additional remote emergency lights to this unit?
A: Yes, it includes an additional 3.6V/3W battery for powering remote emergency lights.
Q: Is the housing durable and flame-retardant?
A: Yes, the housing is made from thermoplastic ABS with 5VA flame retardant.
Q: What is the operating temperature range?
A: The unit operates effectively between 10°C and 40°C (50°F and 104°F).
Q: Is this emergency light suitable for damp locations?
A: Yes, it is cULus listed for damp locations.
