Product Description

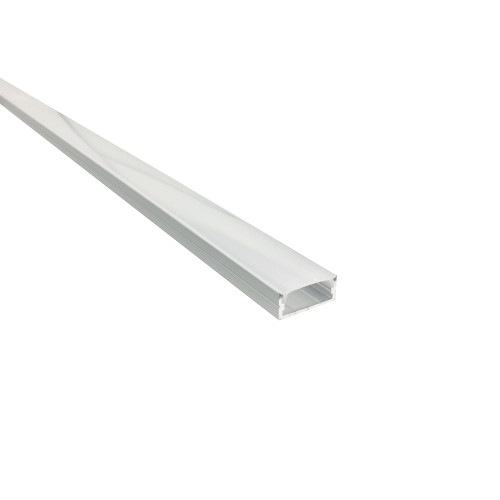

The NORA NATL-C24A 4' Shallow Channel is an elegant and practical mounting solution for low voltage LED tape lighting. Made from lightweight aluminum, this channel includes a diffused lens and end caps for a finished appearance and optimal light diffusion. Its low-profile design makes it ideal for under-cabinet, cove, or accent lighting where a clean and streamlined look is desired.
- Length: 4 feet (field cuttable)
- Material: Aluminum
- Finish: Aluminum
- Includes: Diffused lens and end caps
- Mounting: Surface mount
- Free shipping on orders over $250
Product Benefits
- Low-profile design for sleek LED tape light installations
- Field cuttable to custom lengths on-site
- Enhanced diffusion via included frosted lens
- Supports a wide range of 24V LED tape light models
Key Features
- Extrusion Type: Shallow linear profile
- Lens: Diffused polymer lens included
- End Caps: Included for both ends
- Finish Options: NATL-C24A (Aluminum), NATL-C24B (Black), NATL-C24W (White)
- Mounting Accessory: NATL-CMC (15-pack mounting clips, sold separately)
Technical Specifications
| Channel Details | |
|---|---|
| Model Number | NATL-C24A |
| Material | Aluminum |
| Length | 4 feet (field cuttable) |
| Lens | Diffused lens included |
| End Caps | Included |
| Channel Height | 0.5" |
| Channel Width | 0.93" |
| Mounting Method | Surface mount (clips optional) |
Ideal Applications
- Under-cabinet kitchen lighting
- Retail shelf edge illumination
- Cove lighting or architectural accents
- Display case integration for clean light dispersion
Installation Tips
- Use optional NATL-CMC mounting clips (15-pack) for easy surface installation
- Ensure tape light is securely adhered within the channel before placing lens
- Channels and lenses can be trimmed to custom lengths with standard tools
- Use appropriate connectors to route wiring and preserve a clean look
Frequently Asked Questions
Q: Does this channel come with the lens?
A: Yes, a diffused lens is included along with end caps for both ends of the channel.
Q: Can the channel be cut to a shorter length?
A: Yes, the NATL-C24A is field cuttable using basic cutting tools.
Q: Is this compatible with RGB or color-tuning tape lights?
A: Yes, it supports various Nora 24V tape lights including RGBW and CCT models.
Q: What are the dimensions of the channel?
A: The channel measures 0.93" wide by 0.5" high.
Q: What finish does the NATL-C24A have?
A: NATL-C24A comes in a clean aluminum finish. Black (NATL-C24B) and white (NATL-C24W) finishes are also available.
