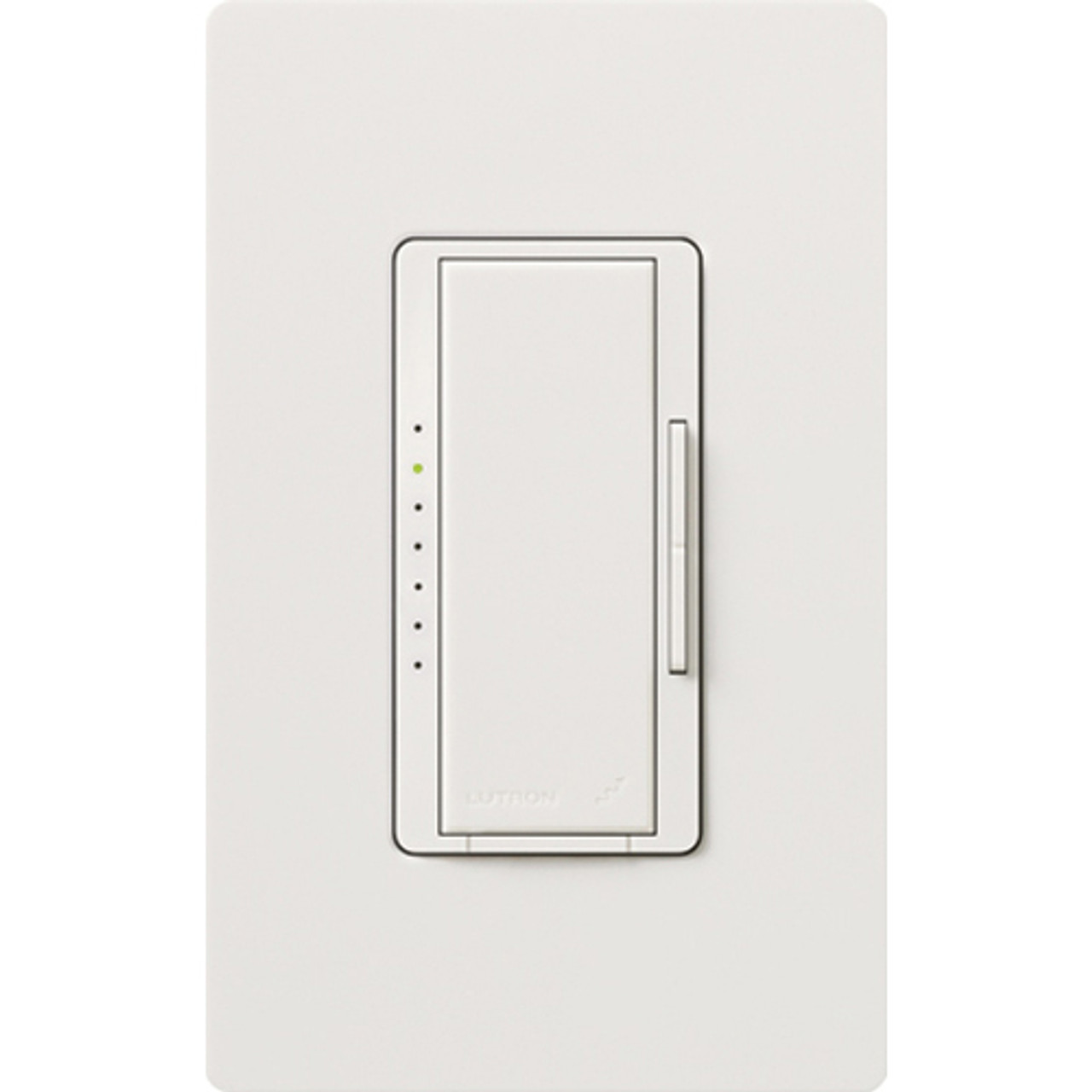

MRF2S-6CL-WH Maestro C.l Multi-location Dimmer 150W Cfl/led Or 600W Inc/hal

Product Description

Lutron MRF2S-6CL-WH Maestro C•L Multi-Location Dimmer combines advanced RF communication, smooth dimming performance, and elegant design in one intuitive wall control. Designed for CFL, LED, halogen, and incandescent lighting loads, this 120V dimmer offers seamless adjustment up to 150W CFL/LED or 600W incandescent/halogen lighting. With Lutron’s Clear Connect® RF Technology, it integrates easily into Vive wireless systems or operates as a standalone control, delivering flexibility for residential and commercial applications.

Benefits

• Universal dimming capability supports modern LED/CFL lamps and traditional incandescent/halogen loads.
• Wireless integration with Vive, Caséta, and other Clear Connect-enabled systems for advanced control and automation.
• Multi-location flexibility allows up to nine companion dimmers for multi-point operation.
• Power failure memory restores lights to their previous level after an outage.
• Soft fade-on/fade-off ensures smooth lighting transitions for user comfort.

Key Features

• Clear Connect RF Technology: Reliable, interference-free communication through walls and floors.
• Adaptive dimming: Automatically detects load type for optimized performance with LEDs, CFLs, halogens, and incandescents.
• Front Accessible Service Switch (FASS): Safely disconnects power for bulb replacement or maintenance.
• Fade control: Single-tap for preset levels, double-tap for full brightness, press-and-hold for fine dimming adjustment.
• Compatibility: Works with Pico® remotes, Radio Powr Savr® sensors, and Vive Hub systems.
• High-end trim: Adjustable maximum output (requires Vive Hub configuration).

Specifications

Electrical Specs

Voltage	120V~ 50/60Hz
Load Rating	150W CFL/LED or 600W Incandescent/Halogen
Neutral Connection	Not required
RF Frequency	Clear Connect 431–437 MHz
Control Range	Up to 60 ft line-of-sight, 30 ft through walls

Construction & Environmental Specs

Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	0%–90% non-condensing

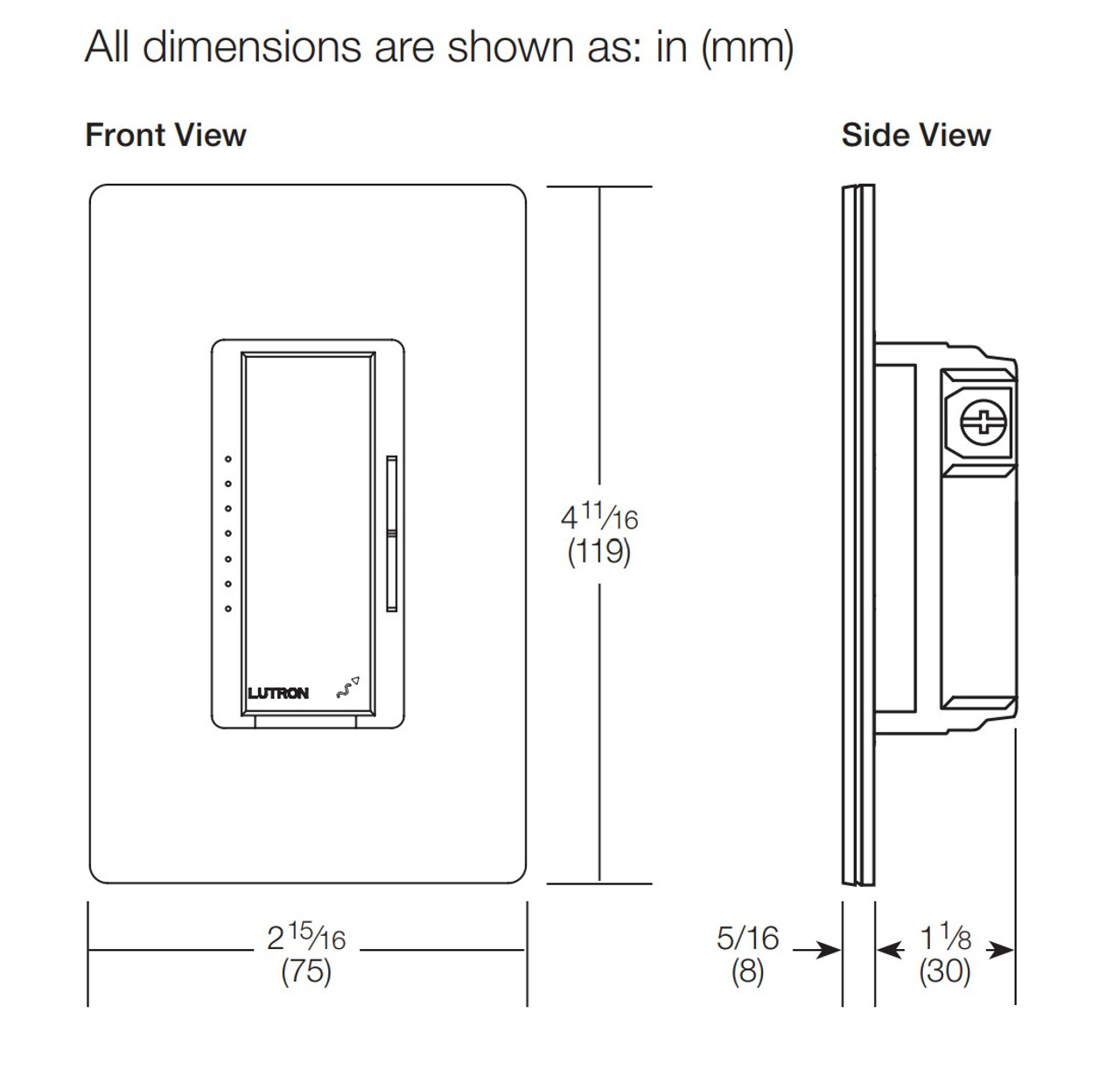

Mounting	Standard 1-gang wallbox (2¼" depth minimum)
Finish	Gloss White (WH)

Certifications & Compliance

Certifications	UL Listed, cUL, FCC, Industry Canada
Warranty	1-Year Limited Warranty

Application Examples

• Commercial offices requiring wireless dimming flexibility with Vive integration.
• Residential lighting for living rooms, kitchens, and bedrooms with LED or CFL bulbs.
• Retrofit installations using existing two-wire systems without a neutral.
• Hospitality spaces requiring quiet, flicker-free dimming and customizable presets.

Installation Tips

• Power off the circuit before installation and verify line/load connections.
• Use standard 120V line wiring; no neutral required for the MRF2S-6CL model.
• For multi-location setups, connect up to nine companion dimmers (MA-R or MSC-AD).
• Maintain RF range: 30 ft through walls or 60 ft line-of-sight to sensors/remotes.
• Pair easily with Vive hub or Radio Powr Savr sensors for wireless control.

Frequently Asked Questions

Q: What load types can the MRF2S-6CL control?
A: It supports dimmable CFL, LED, incandescent, and halogen bulbs up to 150W (LED/CFL) or 600W (incandescent/halogen).

Q: Does it require a neutral wire?
A: No, this model operates without a neutral connection.

Q: Can it work with a Vive system?
A: Yes, it fully integrates with Lutron Vive wireless systems using Clear Connect RF communication.

Q: How many companion dimmers can I connect?
A: Up to nine companion dimmers can be used for multi-location control.

Q: What is the FASS switch?
A: The Front Accessible Service Switch disconnects power to safely replace bulbs or service the circuit.

Q: Can this dimmer handle mixed lamp types?
A: Yes, it can control a mix of LED/CFL and incandescent/halogen loads, with derating as specified in the documentation.
