Product Description

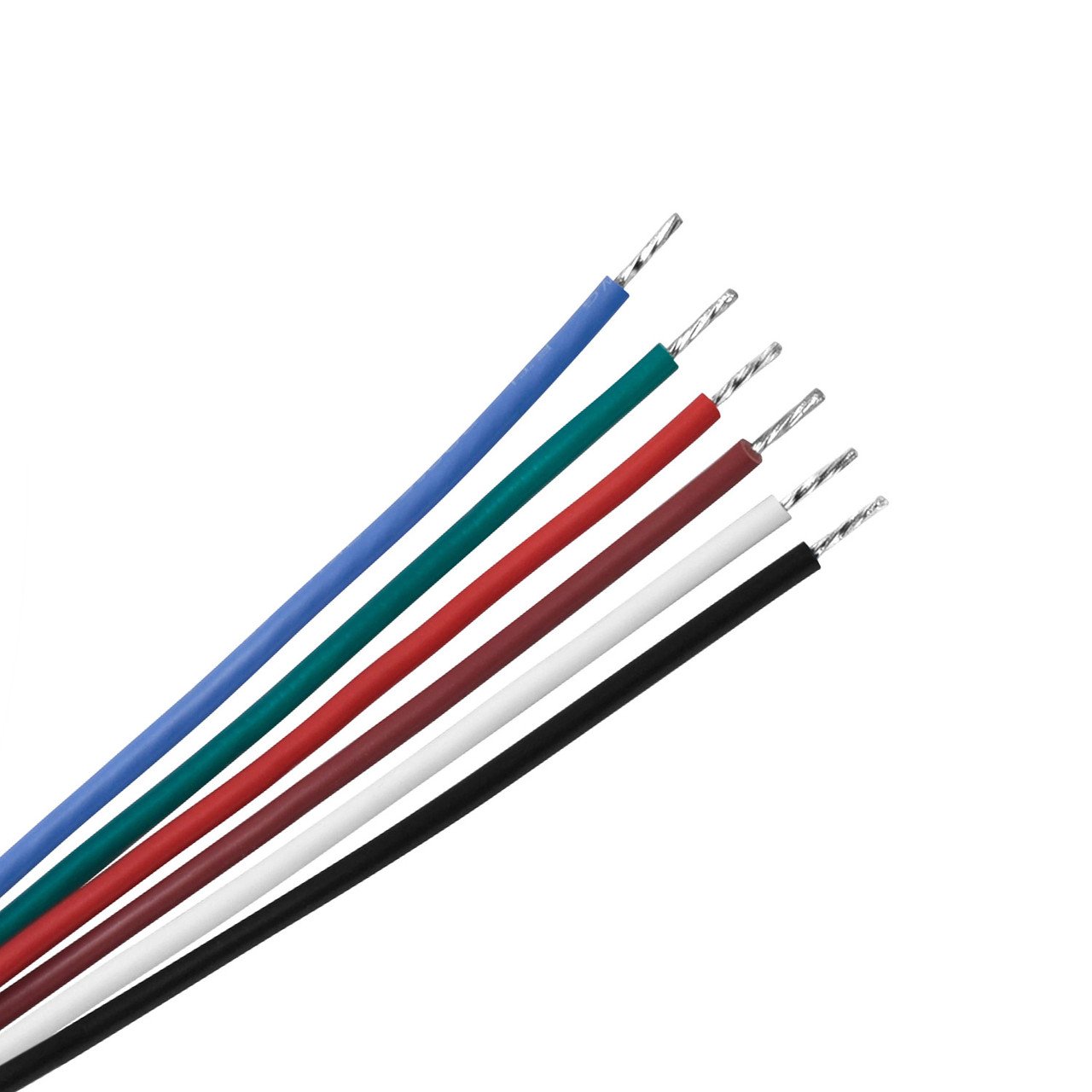

6-Conductor, 22AWG Wire for Lumaris RGB + Tunable White LED Tape Light, 50ft, LU-WK1-6W
- Includes 50ft of 6-conductor 22AWG cable for Lumaris RGB + tunable white tape light (LED Tape Light reel and accessories sold separately)
- Maximum amount of cable allowed on the output of wireless controller is 10 ft (3.0 m); The cable can be added to the beginning or can be used to break up runs of LED strip light
- One Multi-Channel Wireless controller supports up to 32.8 ft (10m) in Lumaris RGB + tunable white tape (LU-T05-RT-IN or LU-T30-RT-IN); Tape must be split into parallel runs, each no more than 16.4 ft (5 m)
- For runs that use 7 or more wire-to-tape connectors on the output of a wireless controller, the maximum length of cable allowed is reduced by 6 in (152.4 mm)
- Multi-channel Wireless Controller input: 24V, output: 24V, 96W max (power and controller sold separately)
- Lumaris RGB + tunable white tape light is indoor damp/dry location rated; Output short-circuit and overload-protection
