Product Description

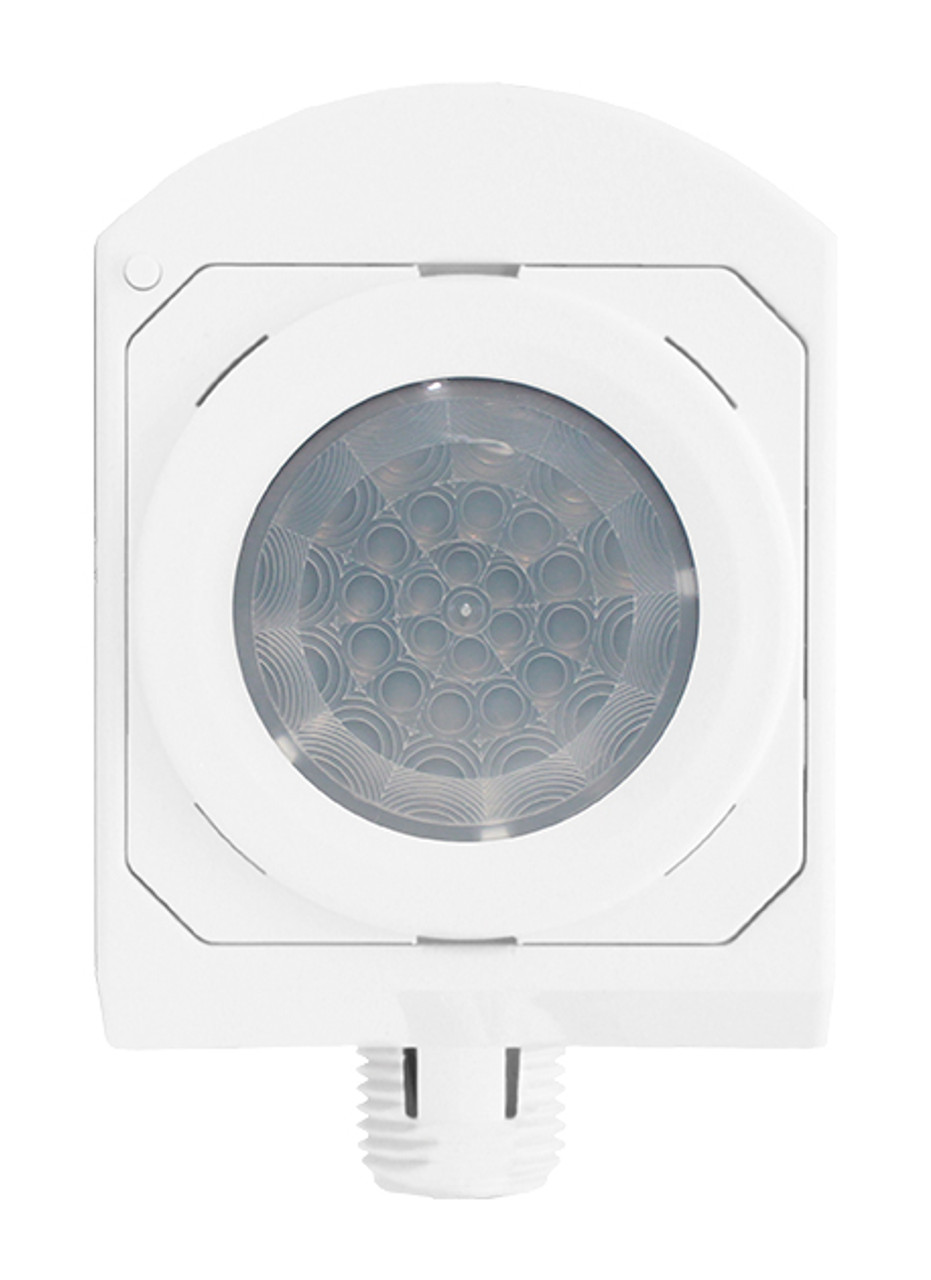

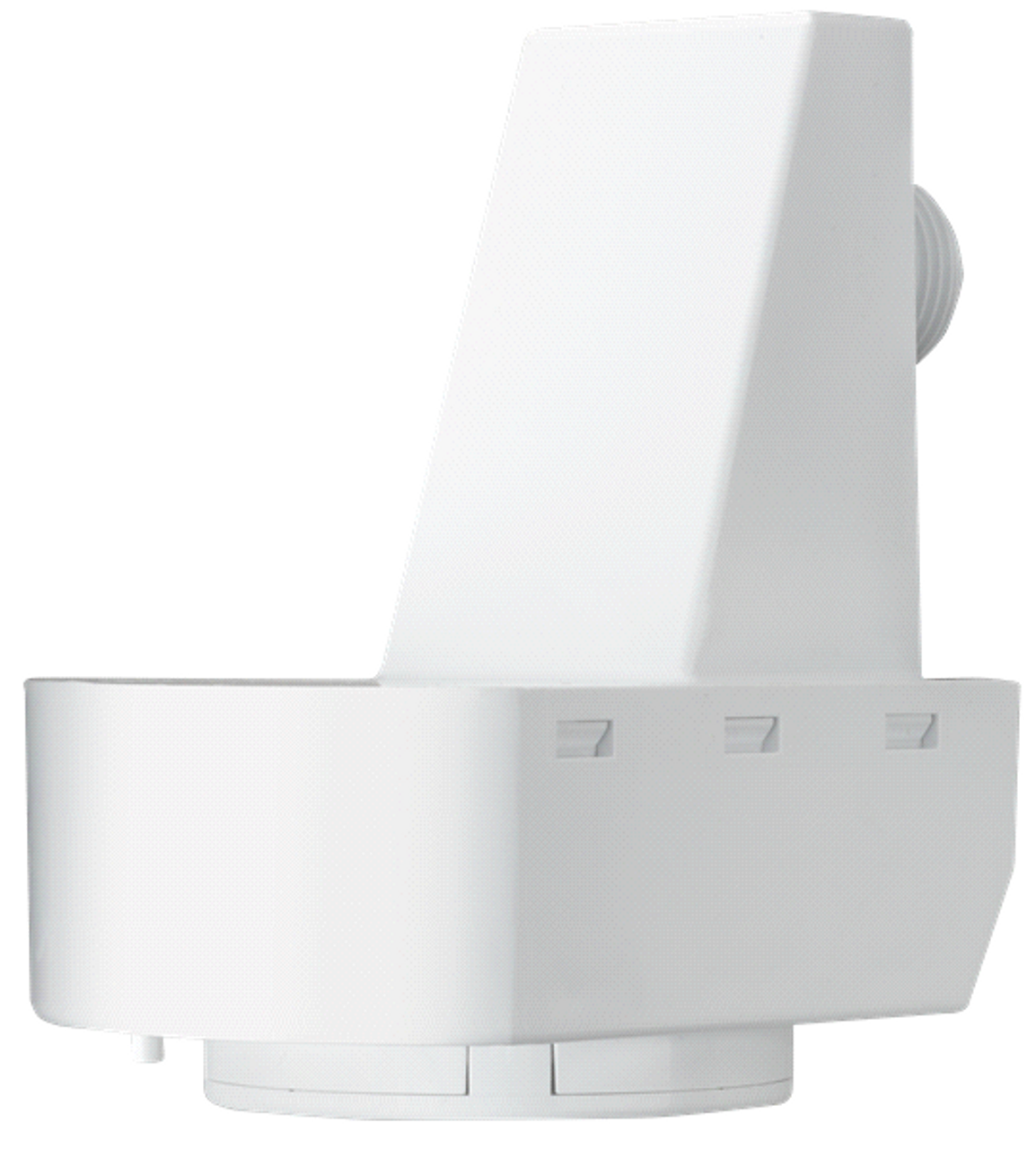

LSXR-6-42L Fixture Mount Interchangeable Lens Sensor from SensorSwitch (Acuity Brands) is a robust, PIR-based fixture-mount occupancy sensor pre-configured with the High Mount 360° (#6) lens and 42" leads for quick wiring to high-bay luminaires in warehouses, industrial spaces, and gymnasiums. Interchangeable lenses, 0–10V dimming capability (family option), and push-button programming make it a versatile control solution for energy savings and code compliance.
At-a-Glance: PIR fixture-mount sensor with #6 High Mount 360° lens, 42" leads, interchangeable optics, push-button programming, and 0–10V dimming output (family option).
- Lens: #6 High Mount 360° (ideal for 15–45 ft mounting)
- Leads: 42" prewired lead length
- Voltage (family): 120–277V (MVOLT); 347–480V (HVOLT) models available
- Dimming (family): 0–10V sinking <20 mA; dim-to-off options available
- Default time delay: 10 minutes (programmable)
- Mounting: 1/2" KO (7/8" hole)
Free shipping on orders over $250
Product Benefits
- Optimize high-bay coverage: The #6 High Mount 360° lens provides reliable detection up to 45 ft mounting heights for large, open areas.
- Reduce energy costs: Occupancy sensing with optional photocell and dimming trims lighting during daylight or vacancy.
- Speed up install & setup: Integrated chase nipple, 42" leads, and push-button programming simplify commissioning.
- Adapt to aisles or open zones: Interchangeable lenses (high/low 360°, aisleway, small-motion) tailor detection to your layout.
Key Features
- Interchangeable optics: Four lens options (#6, #10, #50, #9) cover high/low mount and aisleway applications.
- Digital PIR detection: 100% digital sensor design with excellent RF immunity.
- Push-button programming: Adjust time delays, photocell set-point, trims, and use test mode without tools.
- 0–10V dimming (family): Class 1 or 2 wiring, with low/high trim settings and optional dim-to-off behavior.
- Rugged relay design: Latching relay engineered for LED and fluorescent loads.
- Compliance: UL916 Energy Management Equipment; RoHS.
Enhanced Specifications
| Technical Specs | |
|---|---|
| Sensor Type | Passive Infrared (PIR), digital detection |
| Voltage (family) | 120–277V (MVOLT); 347–480V options available |
| Relay | Latching; single or dual-relay variants available |
| Dimming Output | 0–10 VDC, sinks <20 mA; Class 1 or 2 wiring |
| Standards | UL916; RoHS |
| Physical Specs | |
|---|---|

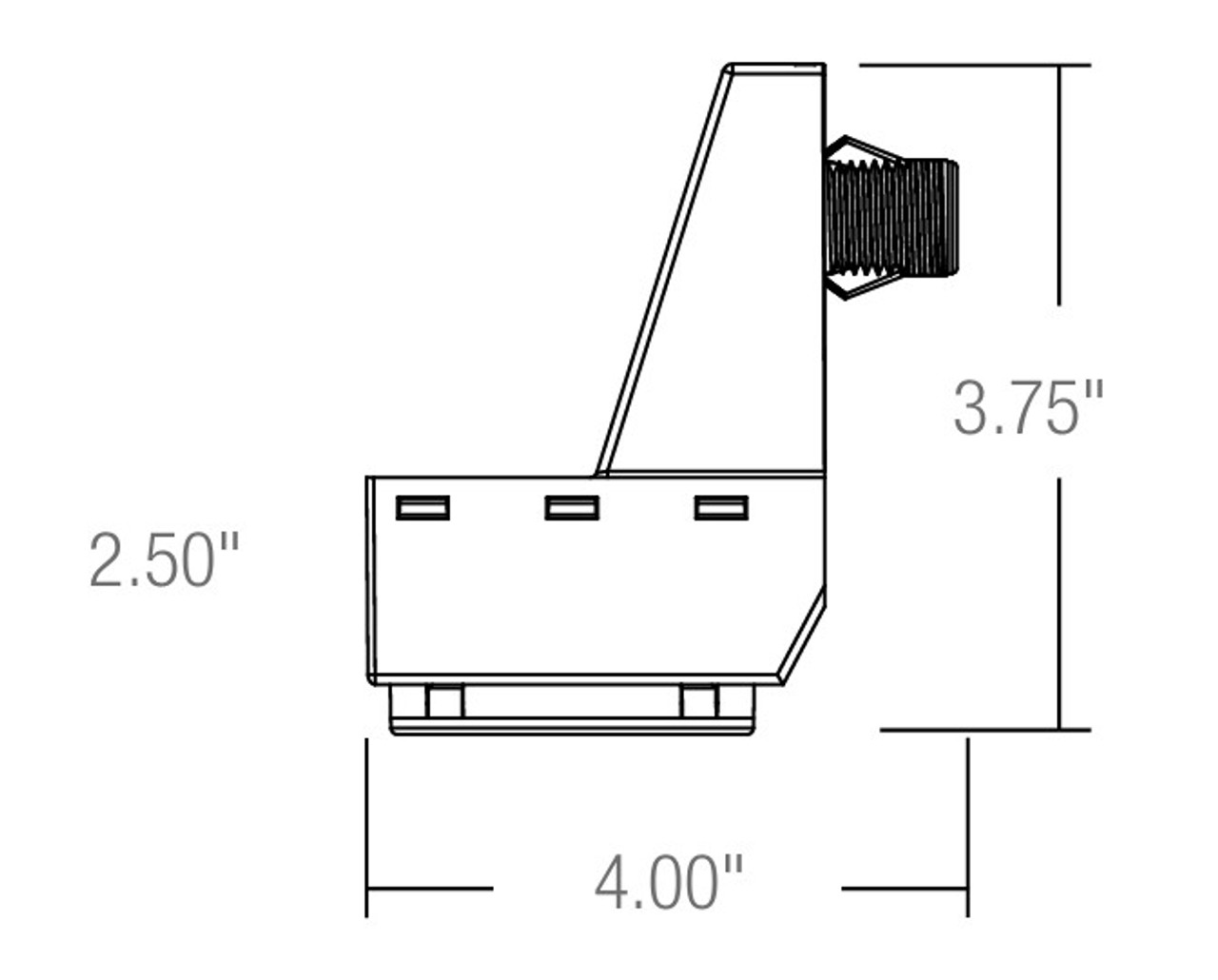

| Dimensions | Approx. 3.75" H × 2.50" W × 4.00" D |
| Mounting | 1/2" knockout (7/8" hole) with integrated chase nipple |
| Color | White |
| Lead Length | 42" leads (this LSXR-6-42L configuration) |
| Performance Specs | |
|---|---|
| Coverage & Height | #6 lens best for 15–45 ft mounting; excellent detection of walking to ~35 ft and forklifts to ~45 ft |
| Default Time Delay | 10 minutes (programmable ~30 sec–30 min) |
| Operating Temp | 14°F to 140°F (standard); -4°F to 140°F with LT option |
| Humidity | Up to 90% non-condensing |
| Programming | On-device push-button; test mode; adjustable trims; photocell set-point options |
Application Examples
- High-bay aisles and open floors in warehouses & distribution centers
- Manufacturing and industrial assembly areas
- Gymnasiums, fieldhouses, and large recreational spaces
- Big-box retail and back-of-house zones
- Retrofits where 42" leads ease wiring to the luminaire
Installation Tips

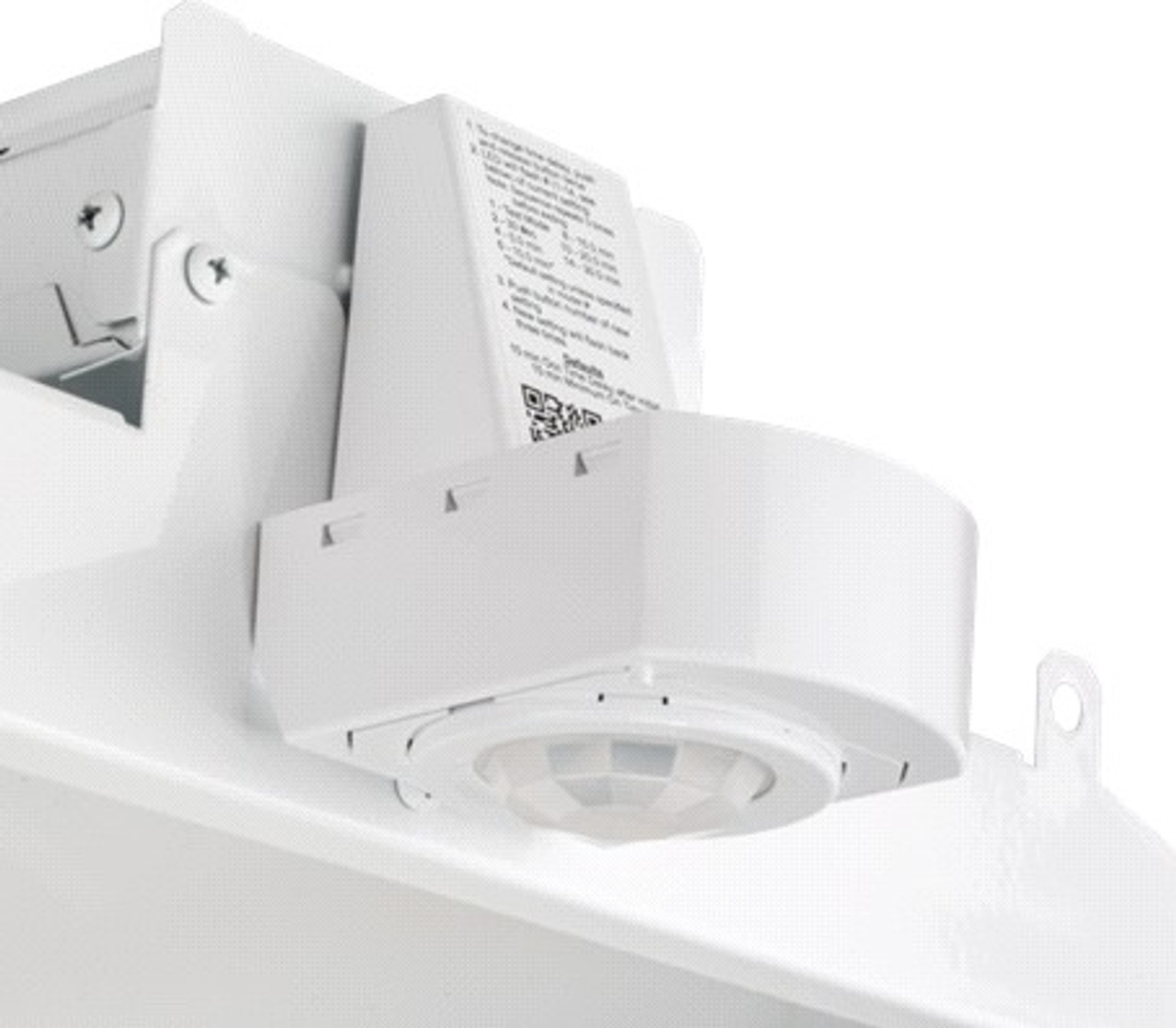

- Mount through a 1/2" KO (7/8" hole) using the integrated chase nipple; the snap-lock retains the sensor.
- Select the #6 High Mount 360° lens for 15–45 ft heights; use aisleway (#50) where racking is present.
- Wire 0–10V dimming (if used) as Class 1 or Class 2 per project standards; confirm driver violet/gray leads.
- Start with the 10-minute default delay, then adjust via push-button to meet energy and safety goals.
- Observe ambient limits: 14°F to 140°F standard, or choose LT for -4°F starts.
FAQ
Q: What mounting height is recommended for the LSXR-6 lens?
A: The #6 High Mount 360° lens is best for 15–45 ft mounting heights, providing reliable detection for walking and forklift motion.
Q: Does this model include 0–10V dimming?
A: The LSXR family offers versions with 0–10V dimming output (sinking <20 mA) and options like dim-to-off. Confirm the exact option code on your part number if dimming control is required.
Q: Can I reconfigure the lens for aisles?
A: Yes. The platform supports interchangeable lenses, including the high-mount aisleway #50 lens for racking layouts.
Q: What is the default occupancy time delay?
A: 10 minutes by default, adjustable from about 30 seconds to 30 minutes via push-button programming or test mode.
Q: How is the unit mounted and wired?
A: It installs through a 1/2" knockout with a chase nipple and snap lock, then wires to line voltage and optional 0–10V dimming leads (violet/gray).
Q: What temperatures can it withstand?
A: Standard models operate from 14°F to 140°F; the LT option extends the low end to -4°F.
Q: Are photocell and high/low behavior available?
A: Family options include switching photocell (-P), dimming & switching photocell (-ADC), and high/low operation (-HL, -ANL). Choose the option that matches your control strategy.
Q: Is the dimming wiring Class 1 or Class 2?
A: 0–10V dimming can be wired as Class 1 or Class 2, per project requirements.
