Product Description

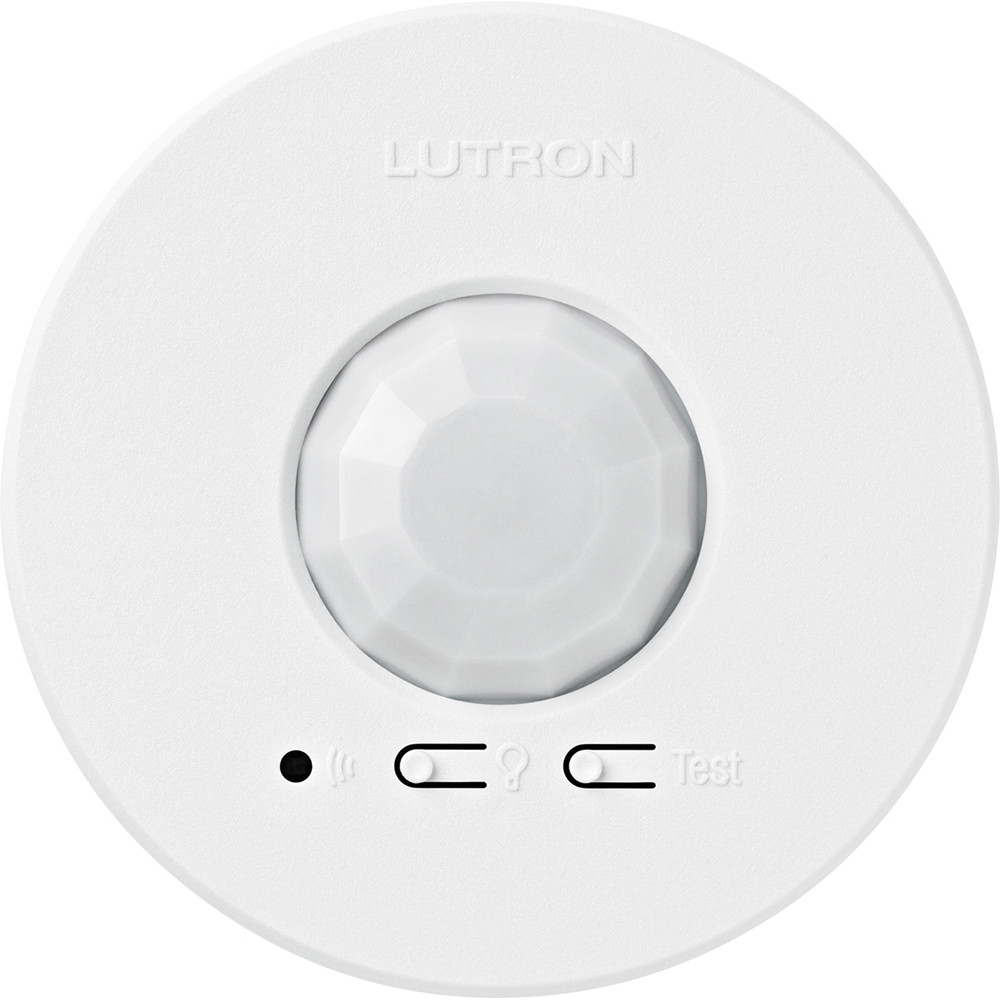

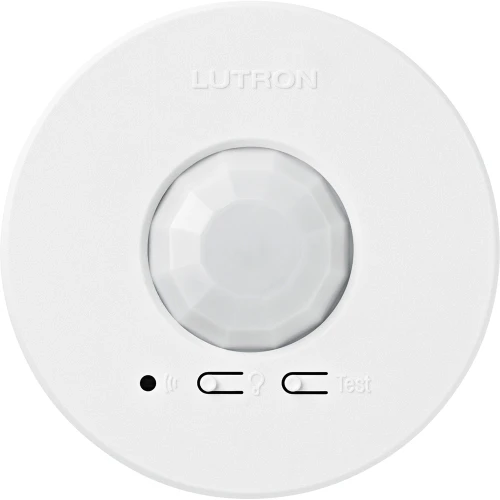

The LRF2-OCR2B-P-WH Radio Powr Savr Wireless Occupancy/Vacancy Sensor offers efficient and reliable motion sensing for automated lighting control. Designed for ceiling-mount applications, this sensor uses passive infrared (PIR) technology and integrates seamlessly with Lutron systems for optimal energy savings and convenience.
Key Features:
- Wireless occupancy/vacancy sensor with PIR motion detection.
- 360° coverage area ranging from 324 ft² to 676 ft², depending on ceiling height.
- Three operational modes: Auto-On/Auto-Off, Auto-On Low-Light/Auto-Off, and Manual-On/Auto-Off.
- Compatible with Lutron dimmers, switches, and systems using Clear Connect RF technology.
- 10-year battery life with a replaceable CR123 lithium battery.
- Front-access test buttons for easy setup and configuration.
Specifications:
- Model Number: LRF2-OCR2B-P-WH
- Frequency: 434 MHz
- Power Supply: CR123 lithium battery
- Coverage: 360° coverage; up to 676 ft² at 12 ft ceiling height
- Mounting: Ceiling-mount (solid or drop ceilings)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Installation Tips:
- Mount sensor in an unobstructed location for optimal motion detection.
- Ensure at least 4 ft of clearance from HVAC vents and heat sources.
- Use temporary mounting options to test coverage before permanent installation.
- Refer to the coverage chart to determine the correct ceiling height for your application.
- Replace the battery with a CR123 lithium type when needed to maintain functionality.
Frequently Asked Questions:
Q: What is the maximum coverage area of this sensor?
A: It provides up to 676 ft² of coverage at a ceiling height of 12 ft.
Q: Does this sensor require wiring for installation?
A: No, it is completely wireless and powered by a CR123 lithium battery.
Q: Is this sensor compatible with all Lutron systems?
A: Yes, it works with Lutron devices using Clear Connect RF technology.
Q: Can this sensor be used outdoors?
A: No, it is designed for indoor use only.
Q: How do I adjust the timeout settings?
A: Timeout settings can be adjusted using the front-access test buttons. Options include 1, 5, 15, and 30 minutes.
