Product Description

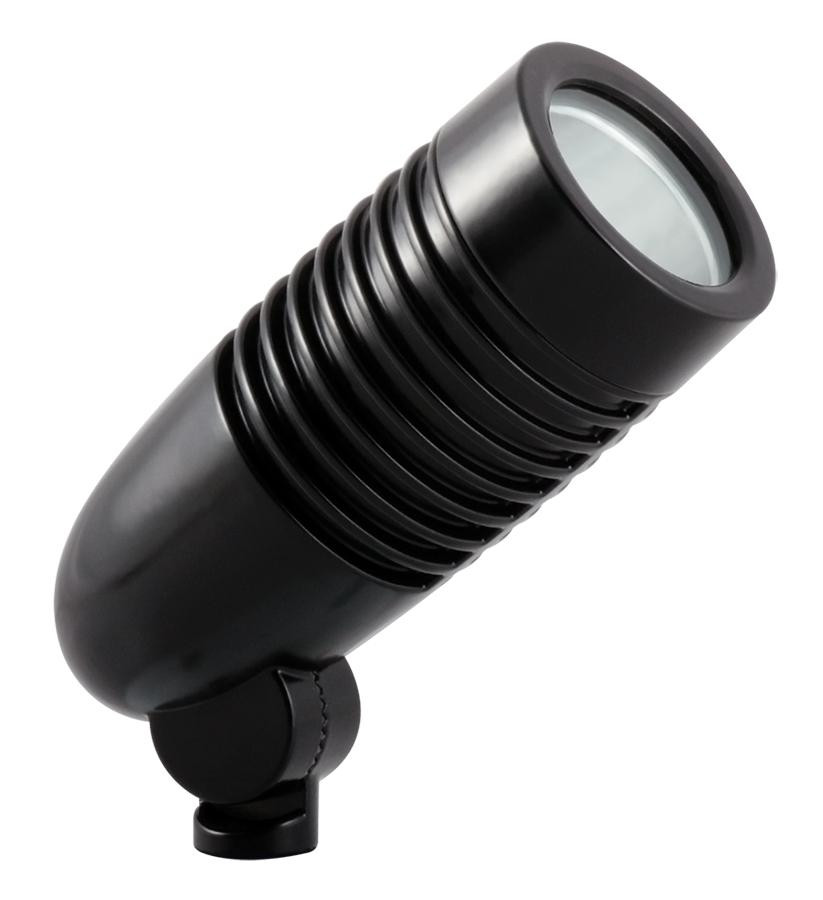

LFLED5YB Landscape 208 Lumens LFLOOD 5W Warm LED Landscape Flood Black from RAB Lighting is a compact 5 Watt LED floodlight perfectly suited for small-scale landscape lighting applications. This black landscape flood delivers 208 lm at 3000K (Warm), uses line voltage operation, and features a specialized microprismatic diffusion lens for smooth, even light distribution.
Product Summary
- Wattage: 5W
- Lumens: 208 lm
- Color Temperature: 3000K (Warm)
- Voltage: 100-240V
- Finish: Black
- Free shipping on orders over $250
Product Benefits
- Compact 5 Watt LED floodlight is well suited for small-scale landscape lighting applications.
- 85% more energy efficient than its 35 Watt MR16 equivalent.
- Microprismatic diffusion lens delivers smooth, even, and consistent light distribution.
- Suitable for wet locations and ground mounting for outdoor landscape lighting use.
Key Features
- Warm LED output: 3000K color temperature with 208 lm output.
- Efficient performance: 5W LED with 5.1W input watts.
- NEMA beam spread: NEMA Beam Spread of 4H x 4V with 44° Beam Angle.
- Long LED life: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Durable housing: Precision die-cast aluminum housing, hood and mounting arm.
- Optional spot lens: Enables a tool-less conversion to a NEMA Type 3H x 3V.
- High-temperature gaskets: High-temperature Silicone construction.
- Green technology: Mercury and UV free with RoHS-compliant components.
Specifications
Technical Specifications
| Product | LFLED5YB |
| Driver Type | Constant Current |
| Driver | Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A. |
| Line Voltage | 120V-240V |
| Input Watts | 5.1W |
| Watts | 5W |
| 120V Current | 0.1A |
| 208V Current | 0.06A |
| 240V Current | 0.05A |
| 277V Current | N/A |
Performance Specifications
| Color Temp | 3000K (Warm) |
| Color Temperature | 3000K |
| Color Accuracy | 86 CRI |
| L70 Lifespan | 100,000 Hours |
| Lumens | 208 lm |
| Efficacy | 40.8 lm/W |
| NEMA Type | NEMA Beam Spread of 4H x 4V |
| Beam Angle | 44° Beam Angle |
| Spot Lens | Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. |
| Color Consistency | 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Color Stability | LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period |
Physical Specifications
| Color | Black |
| Weight | 1.5 lbs |

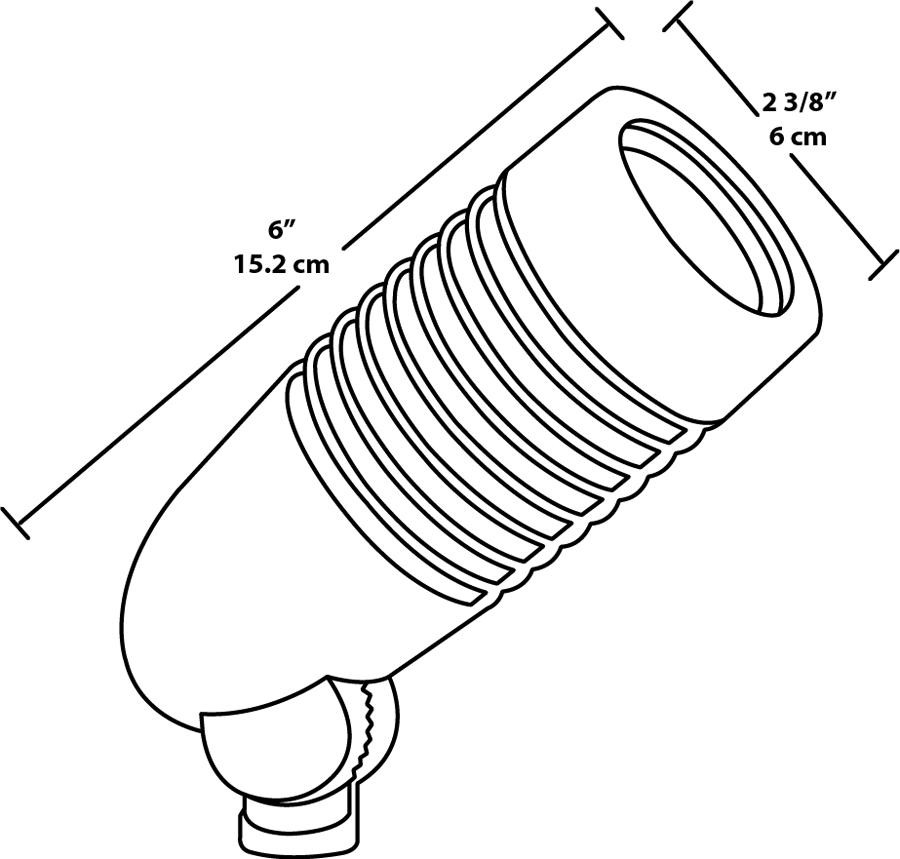

| Length | 6" / 15.2 cm |
| Diameter | 2 3/8" / 6 cm |
| Lens | Microprismatic diffusion lens for smooth and even light distribution |
| Housing | Precision die-cast aluminum housing, hood and mounting arm |
| Gaskets | High-temperature Silicone |
| Finish | Formulated for high durability and long-lasting color |
| Cold Weather Starting | The minimum starting temperature is -40°C (-40°F) |
| Maximum Ambient Temperature | Suitable for use in up to 40°C (104°F) |
Compliance & Safety
| UL Listed | Suitable for wet locations. Suitable for ground mounting. |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 |
| LED | 5 Watt high output, long-life LED |
| Green Technology | Mercury and UV free. RoHS-compliant components. |
| Patents | The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico |
| Warranty | 5-Year, No-Compromise Warranty |
Applications
- Small-scale landscape lighting applications.
- Outdoor wet location landscape flood lighting.
- Ground-mounted lighting using a Mighty Post.
- Wall-mounted lighting on a weatherproof junction box and cover plate.
- Accent lighting or grazing buildings when using the optional spot lens.
Installation Tips
- Read carefully before installing fixture and retain these instructions for future reference.
- RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes.
- Proper grounding is required for safety.
- Make certain power is OFF before installing or maintaining fixture.
- Mount to a weatherproof junction box and cover plate for wall mounting.
- To ensure weatherproof seal, apply weatherproof silicone sealant around the edge of the wall cover plate or surface box.
- Seal arm thread using Teflon tape or silicone sealant.
- For ground mounting, mount to a Mighty Post (RAB Cat# MP19).
- Aim floodlight in the direction desired and tighten locknut and Arm Screw.
- Clean glass lens & fixture with non-abrasive glass cleaning solution.
Frequently Asked Questions
What is the lumen output of the LFLED5YB?
The LFLED5YB delivers 208 lm.
What wattage is this landscape flood?
The LFLED5YB uses a 5W LED with 5.1W input watts.
What color temperature does this fixture produce?
This fixture produces 3000K (Warm) light.
What finish does the LFLED5YB have?
The LFLED5YB has a black finish.
Is this fixture suitable for wet locations?
Yes. The LFLED5YB is UL Listed as suitable for wet locations and suitable for ground mounting.
What is the beam spread?
The LFLED5YB has a NEMA Beam Spread of 4H x 4V with 44° Beam Angle.
Can this landscape flood be ground mounted?
Yes. The installation instructions show ground mounting to a Mighty Post (RAB Cat# MP19).
What is the LED lifespan?
The LFLED5YB has a 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations.
What voltage range does this fixture support?
The driver is Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A.
What warranty is included?
The LFLED5YB includes a 5-Year, No-Compromise Warranty.
