Product Description

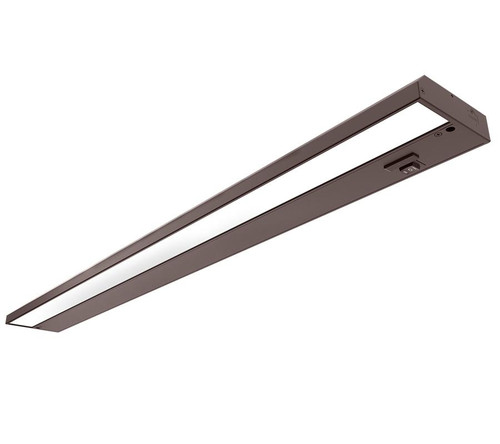

KNOOKFA32 Undercabinet Knook Field Adjustable 32 Inches 16W 2700K/3000K/3500K/4000K/5000K is a versatile and energy-efficient lighting solution from RAB Lighting. This 32-inch LED fixture provides smooth, uniform illumination across work surfaces and features selectable color temperatures and power output for customizable ambiance and performance in kitchens, offices, and task lighting environments.
Model: KNOOKFA32
Length: 32 Inches
Wattage: 16W / 8W Field Adjustable
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (Selectable)
Lumen Output: 723–1,585 lm
Voltage: 120V
Finish: Brown
Free shipping on orders over $250
Product Benefits
- Field-adjustable color and output offers tailored lighting for any environment
- Soft, even light distribution minimizes shadows on countertops and work areas
- Compact and linkable design simplifies installation under cabinets or shelves
- Energy Star certified for efficiency and utility rebate eligibility
Key Features
- Color Temp Selection: 2700K / 3000K / 3500K / 4000K / 5000K
- Power Output Selection: 100% (16W) or 50% (8W)
- CRI: 93–97 for excellent color rendering
- Mounting: Surface undercabinet installation with screw covers
- Dimming: Compatible with common ELV & TRIAC dimmers
- Finish: Durable powder-coated brown steel housing
- Certifications: UL Listed, Energy Star 2.2, RoHS-compliant
Specifications
Technical Specs
| Wattage | 16W (Selectable to 8W) |
| Voltage | 120V |
| Dimming | Compatible with ELV & TRIAC dimmers |
| Input Current | 0.15A |
| THD | 8.53% at 120V |
| Power Factor | 99.5% at 120V |
Physical Specs
| Length | 32" |
| Weight | 2.7 lbs |
| Housing | Die-formed steel with injection-molded endcaps |
| Lens | Polycarbonate |
| Mounting | Undercabinet surface mount |
Performance Specs
| Lumen Output | 723–1,585 lm (adjustable) |
| Efficacy | 77.4–102.4 lm/W |
| Rated Life | 50,000 hours (L70) |
| Color Rendering Index (CRI) | 93–97 |
Compliance & Safety
| UL Listed | Yes – Dry Locations Only |
| Energy Star | Yes – Version 2.2 Certified |
| RoHS Compliant | Yes – Mercury & UV Free |
| TAA Compliant | Yes – Product of Cambodia |
Ideal Applications
- Kitchen undercabinet lighting
- Office or breakroom task areas
- Retail displays and shelving
- Residential or hospitality accent lighting
Installation Tips
- Use supplied screws and screw hole covers for a clean look
- Use provided wire connector and push-in terminals for fast wiring
- Do not install in small enclosed spaces or outside 0–40°C temperature range
- Supports up to 15 interconnected 32" units
- Selector switches allow easy power and CCT adjustments
Frequently Asked Questions
Q: Can I change the color temperature after installation?
A: Yes, the fixture has a built-in selector switch for 2700K through 5000K adjustment even after installation.
Q: Is this dimmable?
A: Yes, it is compatible with many ELV and TRIAC dimmers.
Q: How many fixtures can I link together?
A: Up to 15 KNOOKFA32 units can be interconnected safely.
Q: What voltage is required?
A: This fixture is designed for 120V input only.
Q: What type of mounting is used?
A: The fixture is designed for surface mounting under cabinets.
Q: Does it include a power cord or accessories?
A: It includes in-line connectors; jumper cables, power feed cords, and motion sensor junction boxes are sold separately.
Q: Is it compliant with any certifications?
A: Yes, it's UL Listed, Energy Star Certified, RoHS compliant, and TAA compliant.
