Product Description

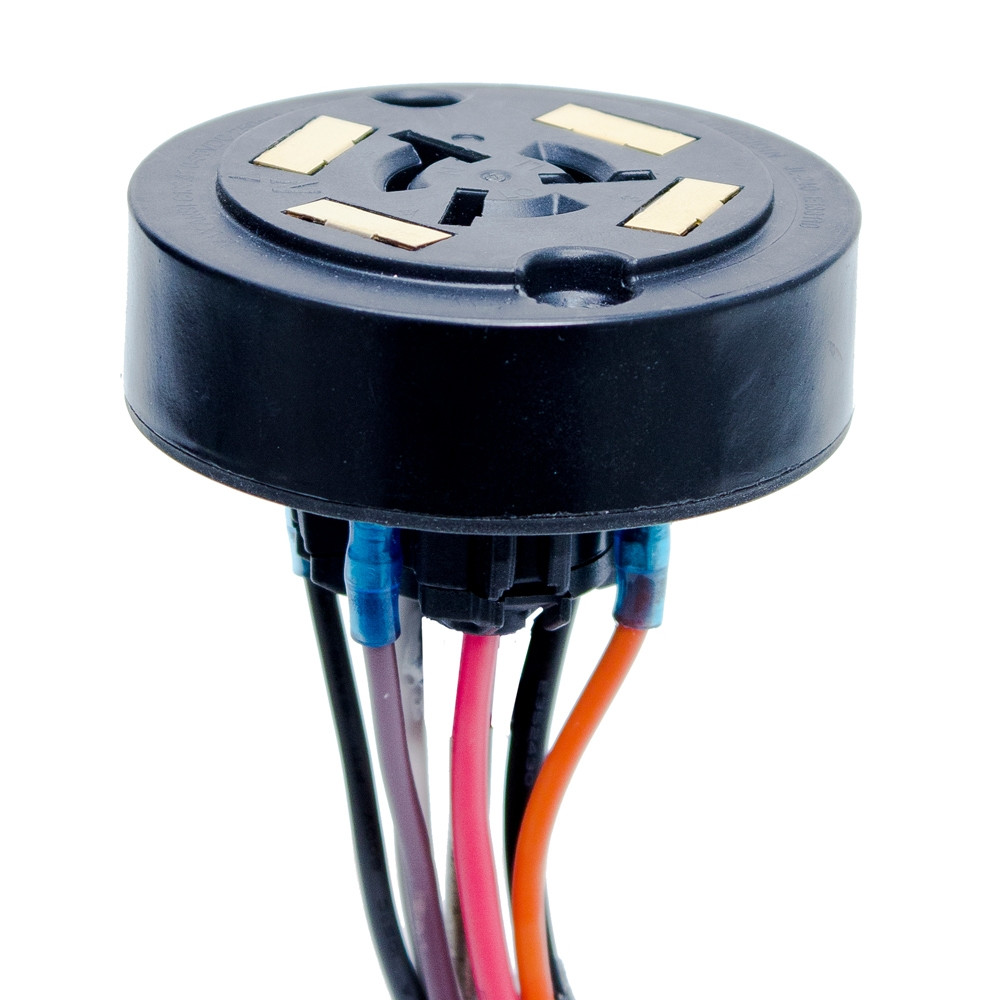

The K171H provides a receptacle for Locking Type photocontrols with dimming capabilities. The connector interface has a 3-prong power connection that is backward compatible with standard photocontrol units. Also, it offers four contact pads per ANSI C136.41 for dimming and additional control or sensor input.
SPECIFICATIONS:
- Warranty Period: 1-Year limited
- Color: Black
FEATURES:
- NEMA receptacle with 3-prong power sockets
- Two gold plated contact pads for dimming control signals
- Two gold plated contact pads for extra control or sensor input signals
- Integrated sealing gasket
- Compliant to ANSI C136.41 specifications
