Product Description

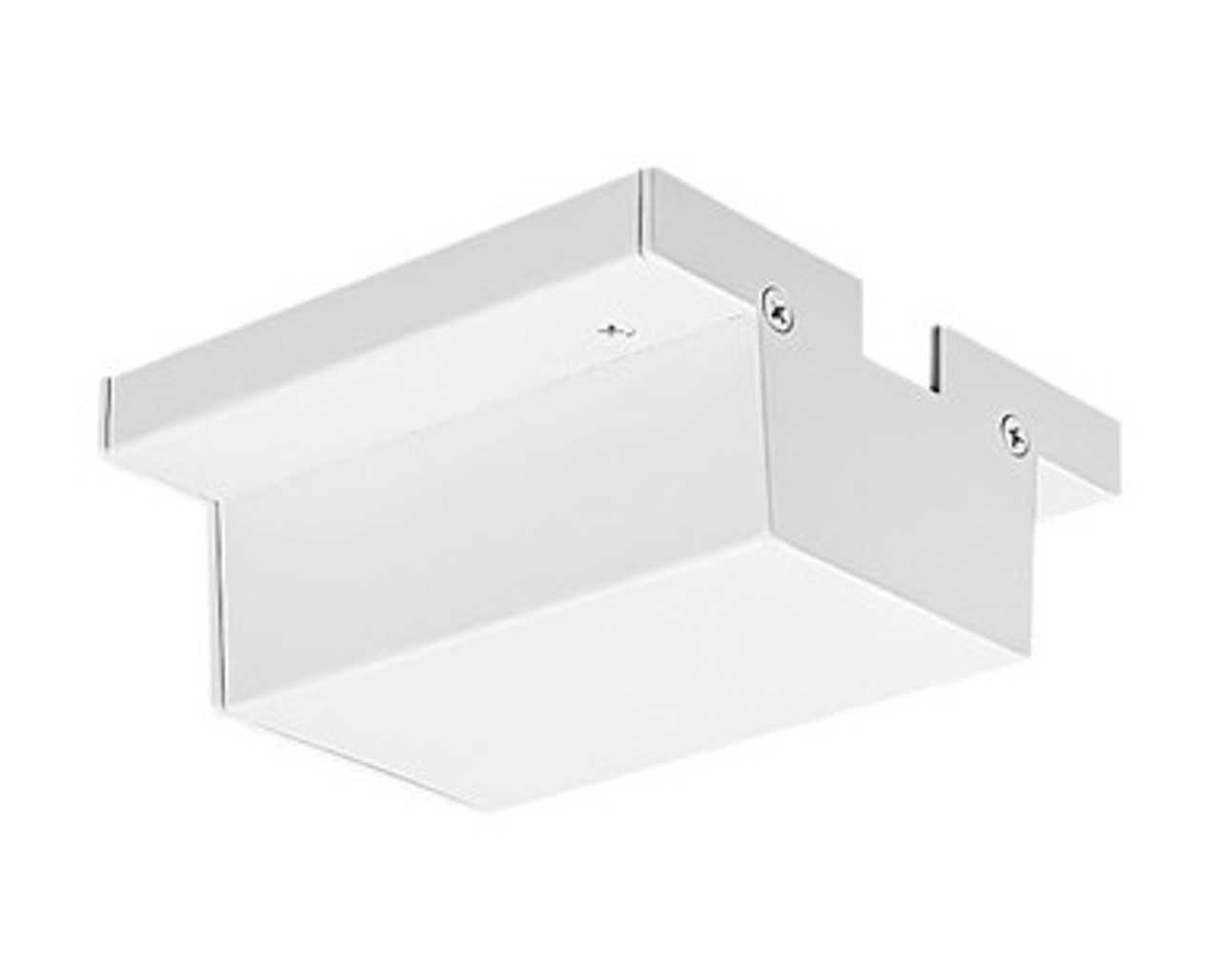

Juno TL546-150W-120-12AC-WH Trac 12™ 12V Canopy Mount Transformer provides reliable, electronic low-voltage power for Trac 12 miniature trac runs and TL43 monopoint installations. The white canopy houses a 150W, 120V-to-12VAC transformer with built-in protections and a convenient rocker on/off switch for quick testing and service.
Brand: Juno (Acuity Brands)
Model: TL546-150W-120-12AC-WH
Type: 12V Electronic Canopy Transformer
Input / Output: 120V AC / 12V AC
Wattage Range: 50–150W (incandescent loads)
Dimming: Compatible with most standard incandescent dimmers
Switch: Integral rocker on/off
Cord / Leads: 6' three-wire cord set; 4.5" leads w/ TL43 mating connector
Finish: White (WH)
Listings: UL Listed & CSA Certified
Compliance: BAA & BABA qualifying product
Free shipping on orders over $250
Product Benefits
- Purpose-built for Trac 12 systems, delivering stable 12VAC power for clean, flicker-free illumination.
- Contractor-friendly setup with a 6' cord set, short leads, and an integral switch to verify power on site.
- Built-in protections—automatic thermal, overload, and short-circuit reset help safeguard the installation.
- Procurement ready with UL/CSA safety listings and BAA/BABA qualification for government projects.
Key Features
- Electronic 12V transformer rated for 50–150W incandescent loads.
- Canopy form factor for neat, surface-mounted power at the feed point.
- Rocker on/off switch for local control and testing.
- 6' three-wire cord plus 4.5" leads with mating connector for TL43 monopoint.
- Dimming with most standard incandescent dimmers (for electronic low-voltage).
- Safety & compliance: UL listed, CSA certified; BAA and BABA qualifying.
Specifications
Technical Specs
| Series / Model | Trac 12™ / TL546-150W-120-12AC-WH |
| Transformer Type | Electronic, 120V AC to 12V AC |
| Wattage Range | 50–150W (incandescent only) |
| Dimming | Compatible with most standard incandescent dimmers |
| Protections | Automatic resetting thermal, overload, short-circuit |
Physical Specs
| Form Factor | Canopy-mounted transformer (surface mount) |
| Finish | White (WH) |
| Approx. Dimensions | 4 3/4" H × 5" W × 2 1/8" D (canopy) |
| Cord / Leads | 6' cord; 4.5" leads with TL43 mating connector |
Performance & Compliance
| Listings | UL Listed; CSA Certified |
| Buy American | BAA & BABA qualifying product |
| System | Juno Trac 12™ miniature low voltage trac; supports TL43 monopoint |
Application Examples
- Retail shelving and display case lighting on Trac 12
- Hospitality accent and under-shelf lighting
- Gallery and boutique task/accent runs
- Residential cove, niche, and cabinet lighting with monopoints
Installation Tips
- Mount the canopy transformer at the feed point and verify polarity before energizing the trac.
- Use the rocker switch to test power prior to lamping and aiming downstream fixtures.
- Keep remote lead lengths short—do not exceed ~5' to minimize voltage drop on 12V runs.
- Pair with incandescent-rated loads (50–150W total). For LED loads, use Juno LED-compatible transformer models.
- For dimming, use a standard incandescent dimmer designed for electronic low-voltage.
- Always de-energize the circuit before wiring or service.
FAQ
What loads does TL546-150W-120-12AC-WH support?
This model is rated for 50–150 watts of incandescent 12VAC loads. For LED loads, use an LED-compatible Trac 12 transformer.
What is the input and output voltage?
Input is 120V AC and output is 12V AC for low-voltage trac lighting.
Can I dim this transformer?
Yes. It works with most standard incandescent dimmers. For best results, choose dimmers intended for electronic low-voltage applications.
Does it include an on/off switch?
Yes. A rocker on/off switch is integral to the unit for convenient testing and service.
How should I manage run lengths?
Keep any remote low-voltage leads short; remoting beyond about 5 feet is not recommended due to voltage drop on 12V circuits.
What are the canopy dimensions?
Approximate canopy size is 4 3/4" × 5" × 2 1/8" for a compact, surface-mounted installation.
Is TL546-150W-120-12AC-WH safety listed?
Yes. It is UL listed and CSA certified, meeting common U.S. and Canadian safety standards.
Is this product eligible for Buy American programs?
Yes. It qualifies under BAA and BABA definitions for U.S. procurement.
