Product Description

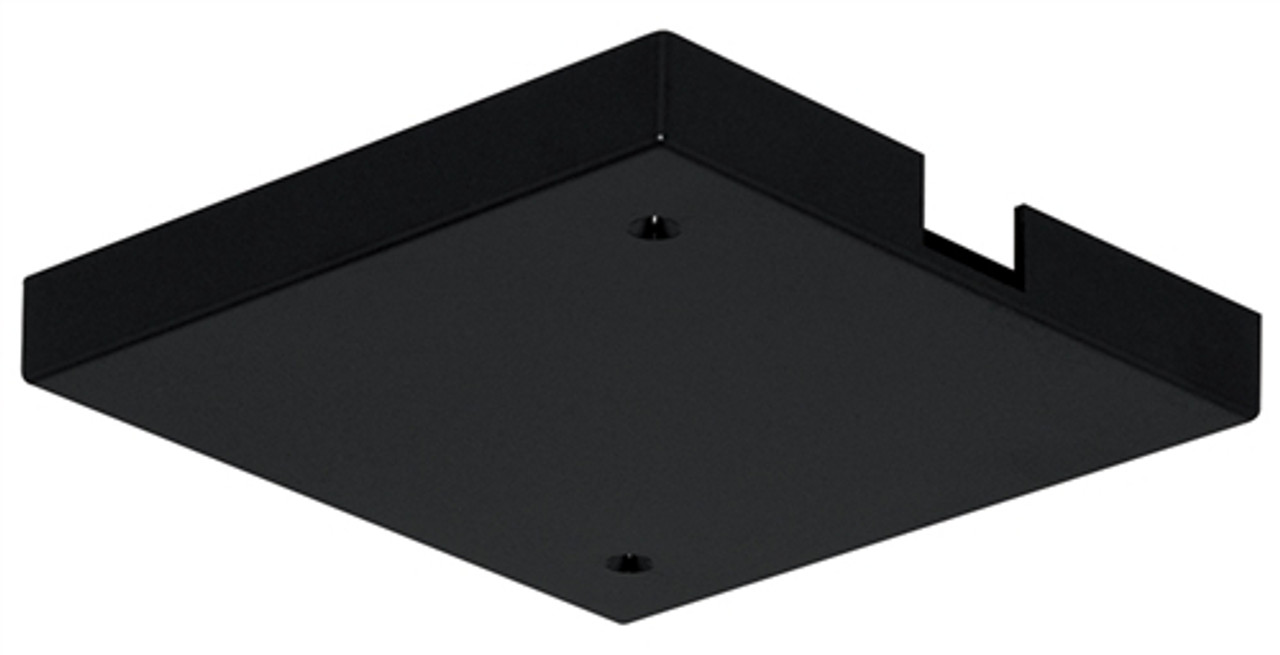

JUNO TL21BL is an Outlet Box/T-Bar Ceiling Canopy feed for the Trac 12™ low-voltage track system, finished in black. It provides a clean, centralized way to power up to four Trac 12 sections from a remote transformer while maintaining a neat, professional ceiling appearance.
Catalog Number: TL21BL
Brand: Juno Lighting
System: Trac 12™ Low Voltage
Function: Outlet Box / T-Bar Ceiling Canopy Feed
Finish: Black
Includes: Mounting plate and cover with four breakouts
Free shipping on orders over $250
Product Benefits
- Centralized feed point simplifies powering Trac 12 runs from a remote transformer.
- Flexible mounting over a standard outlet box or directly on T-Bar ceiling runners.
- Clean aesthetic low-profile canopy conceals wiring for a professional finish.
- Multi-run support feeds up to four Trac 12 sections from one location.
Key Features
- System Compatibility: Trac 12™ low-voltage track
- Mounting Options: Outlet box or T-Bar ceiling
- Accessories Required (T-Bar): TLR37 or TLR37-9-16
- Cover: Four wiring breakouts for easy routing
- Finish: Black (also available in White)
- Typical Use: Remote-transformer feed for miniature track layouts
Specifications
| Technical Specs | |
|---|---|
| Product Type | Outlet Box / T-Bar Ceiling Canopy Feed |
| System | Juno Trac 12™ Low Voltage |
| Finish | Black |
| Construction | Mounting plate with cover and four breakouts |
| Dimensions | Approx. 4-3/4" x 4-3/4" |
| Performance & Compatibility | |
|---|---|
| Feed Capacity | Supports up to four Trac 12 sections (remote transformer required) |
| Mounting | Outlet box cover mount or T-Bar runner mount |
| Required Accessories | TLR37 or TLR37-9-16 for T-Bar installations |
| Electrical | For use with 12V or 24V Trac 12 remote transformer systems |
Application Examples
- Retail aisles and display walls using compact Trac 12 runs
- Hospitality corridors and coves with multiple track branches
- Residential kitchens and galleries needing a neat feed point
- Office reception and feature ceilings with miniature track
Installation Tips
- De-energize the circuit and verify transformer output (12V or 24V) before wiring.
- For T-Bar mounting, use the required TLR37 or TLR37-9-16 hardware.
- Plan cable routing using the canopy’s four breakouts to keep wiring organized.
- Secure the mounting plate to the outlet box or T-Bar, then attach the cover and connect track sections.
Frequently Asked Questions
Q: What does the TL21BL canopy feed do?
A: It provides an outlet box or T-Bar mounted feed point to power Trac 12 low-voltage track runs from a remote transformer.
Q: How many track sections can it feed?
A: Up to four Trac 12 sections can be fed from a single TL21 canopy when properly transformer-sized.
Q: Can I mount this directly on a T-Bar ceiling?
A: Yes. Use accessory kits TLR37 or TLR37-9-16 for T-Bar installation.
Q: Does the canopy include wiring knockouts?
A: Yes, the cover includes four breakouts to route conductors cleanly.
Q: Is it compatible with both 12V and 24V Trac 12 systems?
A: Yes. It is designed for Trac 12 systems powered by either 12V or 24V remote transformers.
Q: What finishes are available?
A: Black (TL21BL) and White (TL21WH) options are available to match your layout.
