Product Description

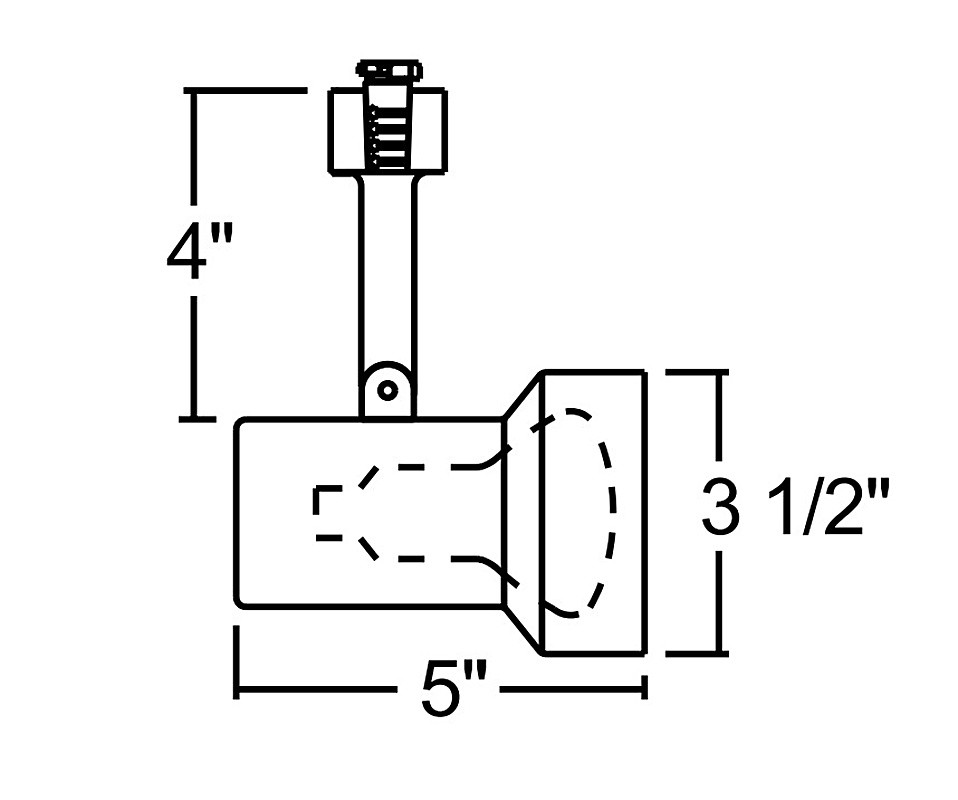

Juno R510-WH Trac-Lites™ Step Cylinder Trac Head (No Baffle) is a line-voltage track spotlight designed for R20/PAR20 lamps, featuring smooth 90° vertical aiming, 358° rotation, and a durable drawn-steel housing in white. Its Juno track adapter includes an on/off switch, positive electrical ground, and polarity arrows, and it’s compatible with both Trac-Lites and Trac-Master systems.
At-a-Glance:
- Lamp Type: 50W R20/PAR20 (medium base)
- Finish: White (WH)
- Aiming: 90° vertical, 358° rotation
- Adapter: On/off switch, spring-loaded locking latch, polarity arrows
- Track: Compatible with Trac-Lites and Trac-Master systems
- Compliance: UL/cUL listed; qualifies for BAA & BABA
Free shipping on orders over $250
Product Benefits
- Clean, no-baffle beam delivers a crisp, modern appearance for retail or gallery spaces.
- Flexible aiming allows precise 90° tilt and 358° rotation for adjustable lighting focus.
- Secure installation with spring-loaded latch and polarity arrows for correct orientation.
- Versatile compatibility works on both Trac-Lites and Trac-Master systems.
Key Features
- Drawn steel housing and durable polycarbonate stem ensure long-lasting performance.
- Medium base porcelain socket with nickel-plated copper screw shell.
- Integrated on/off switch on the adapter for local control.
- Spring-loaded locking latch with polarity arrows for quick alignment.
- UL/cUL listed and qualifies under BAA/BABA compliance.
Specifications
Technical Specs
| Catalog Number | R510-WH |
| Lamp Type | 50W R20 or PAR20 medium-base lamp |
| Aiming Range | 90° vertical aiming, 358° rotation |
| Track Compatibility | Juno Trac-Lites and Trac-Master systems |
| Switch | Integral on/off switch on adapter |
Physical Specs
| Housing Material | Drawn steel with polycarbonate stem |
| Socket Type | Medium base porcelain with nickel-plated copper screw shell |
| Finish | White (WH) |
Performance / Function
| Beam Appearance | No baffle; light distribution determined by lamp selection |
| Mounting | Track adapter with locking latch and polarity arrows |
| Circuiting | Single circuit standard; optional TU two-circuit via “pull-up” contact |
Compliance & Safety
| Listings | UL/cUL listed |
| Buy American | Complies with BAA/BABA requirements |
Application Examples
- Retail environments and product display areas
- Galleries and museums requiring flexible spotlighting
- Hospitality interiors such as lobbies and restaurants
- Commercial offices and showrooms
Installation Tips
- Align the adapter with the track’s polarity line, then rotate 90° clockwise until the latch snaps in place.
- For two-circuit tracks, raise the contact marked “P” and secure the support insert before installation.
- Confirm power is off before installation or lamp replacement.
- Ensure the on/off switch is set to “On” after mounting.
- Use compatible R20 or PAR20 lamps; verify lamp wattage does not exceed fixture rating.
Frequently Asked Questions
Does the R510-WH include a baffle?
No. This version is designed with no baffle for a clean, open appearance.
What lamps can be used?
The fixture supports 50W R20 or PAR20 medium-base lamps.
Can this head be used with Trac-Master tracks?
Yes, it is compatible with both Trac-Lites and Trac-Master systems.
How do I install it securely?
Insert the adapter into the track, align polarity arrows, and rotate 90° clockwise until the latch locks in place.
Is it UL listed?
Yes. The R510-WH is UL/cUL listed for safety compliance.
Does it qualify under Buy American?
Yes, it complies with both BAA and BABA requirements.
