Product Description

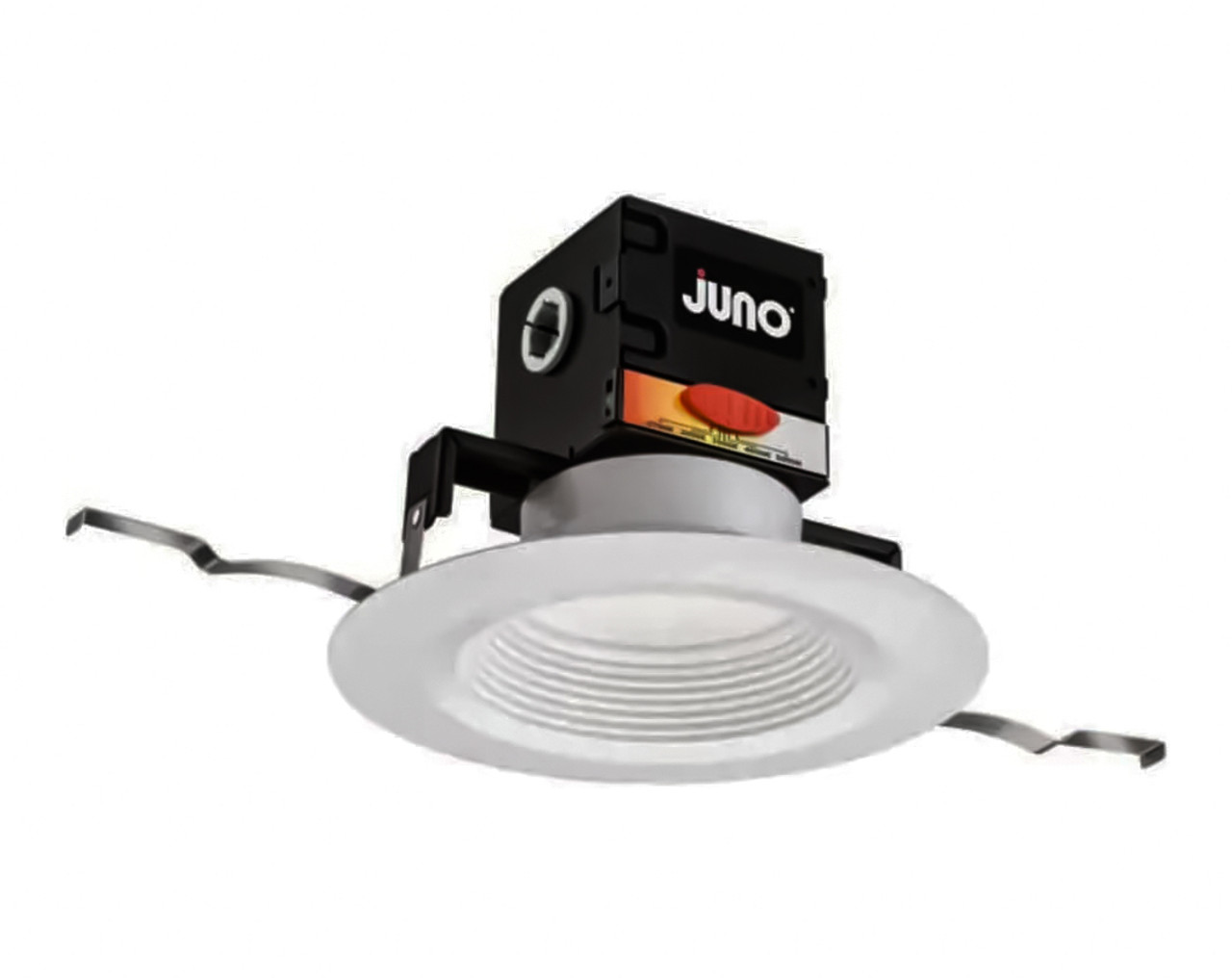

Juno JBK6 RD SWW5 90CRI MW M6 OneUP™ 6-Inch LED Downlight is a direct-wire, canless retrofit/new-construction downlight with an integrated junction box, selectable white (2700K–5000K), and 90+ CRI for comfortable, glare-reduced illumination from its baffle trim design. Nominal 1100 lumens (up to 1140 lm) at just ~13W, wet-location rated and Air-Loc® airtight for bathrooms, showers, and soffits.
Brand: Juno (Acuity Brands)
Model: JBK6 RD SWW5 90CRI MW M6
Trim Style: 6" Round Baffle (Matte White)
Lumens: 1100 nominal (up to 1140 lm)
CCT (Switchable): 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90+
Voltage: 120V dedicated
Dimming: Forward-phase (TRIAC) to 10%
Ratings: IC, Wet Location, Air-tight
Warranty: 5-year limited
Free shipping on orders over $250
Product Benefits
- Faster installs: “Canless” all-in-one design with integrated J-box and push-in connectors cuts install time to a fraction of can+trim setups.
- On-site tuning: Five switchable white settings (2700K–5000K) let you match ambience room by room without stocking multiple SKUs.
- Comfortable light: Regressed lens and baffle trim reduce glare while delivering up to ~1140 lumens for general/task lighting.
- Code-friendly: IC-rated, wet-rated, and airtight for showers, baths, and exterior soffits.
Key Features
- Direct-wire J-box: Integrated 12 in³ wiring compartment with 3-port push connectors and non-metallic bushing for fast daisy-chains.
- Switchable White (SWW5): 2700K/3000K/3500K/4000K/5000K; default 3000K.
- High color quality: 90+ CRI with 3-step MacAdam at endpoints.
- Dimming: TRIAC (forward-phase) down to 10% on 120V.
- Long life: Rated 50,000 hours (L70) for low maintenance.
Specifications
| Technical Specs | |
|---|---|
| Series | JBK6 RD (6" OneUP™ Round Baffle Direct-Wire) |
| Input Voltage | 120V AC, 60 Hz |
| Dimming | Forward-phase (TRIAC) to 10% |
| Listings | ETL (US/Canada), ENERGY STAR®, Wet Location, Air-Loc® airtight, Title 24 compliant |
| Warranty | 5-year limited |

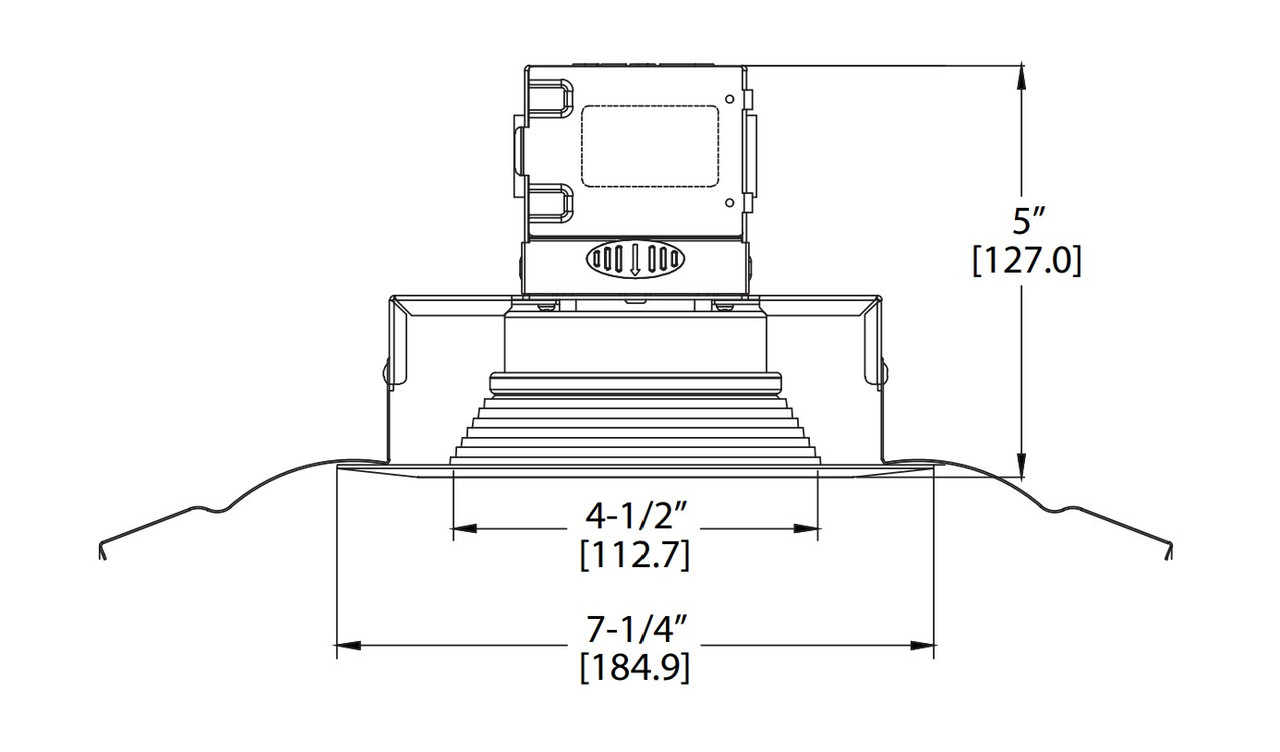

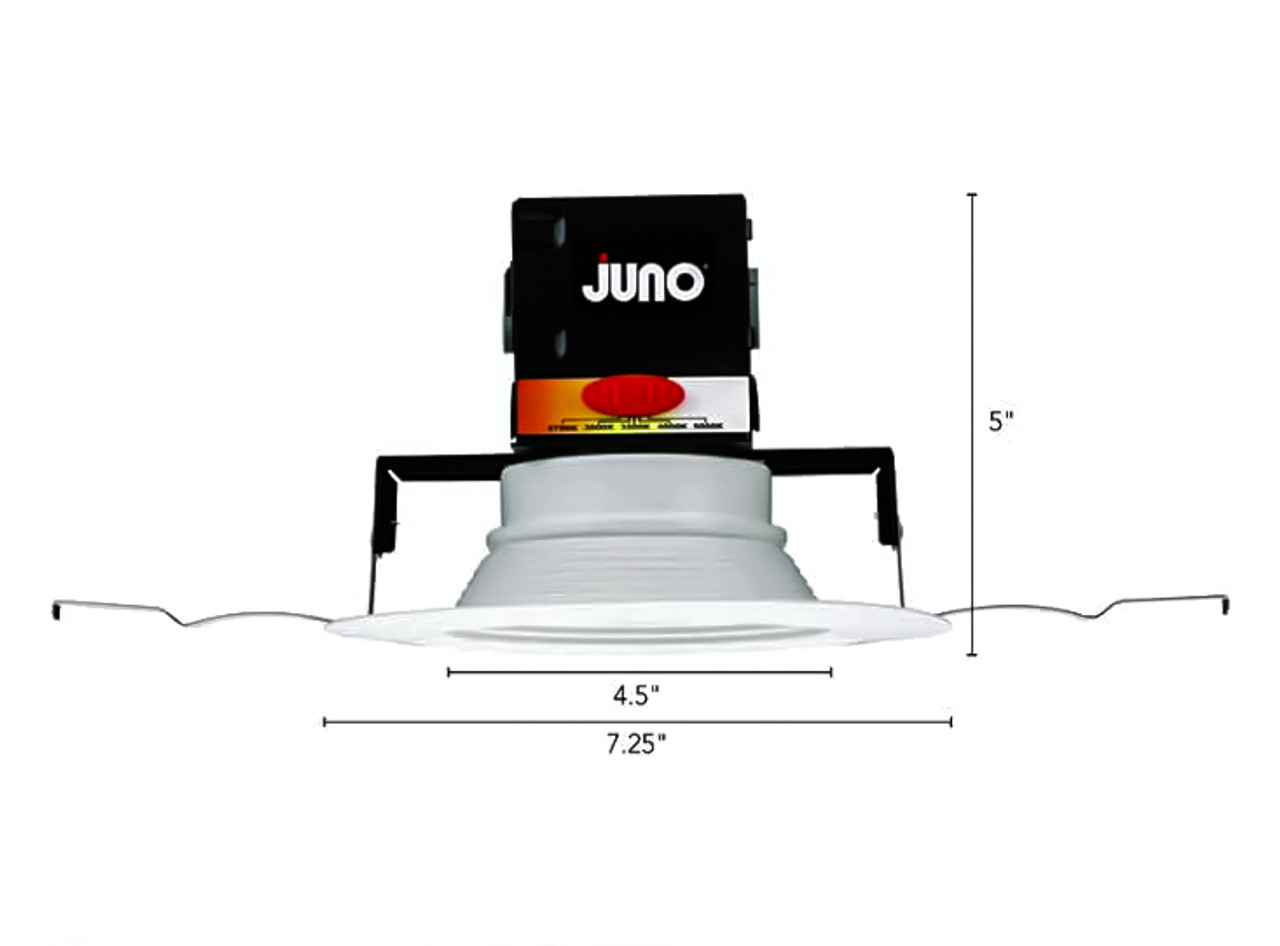

| Physical Specs | |
|---|---|
| Aperture | 4-1/2" (114 mm) |
| Trim OD | 7-1/4" (184.6 mm) |
| Overall Height | 5" (127 mm) |
| Ceiling Cutout | 6-1/2" (165 mm) |
| Ceiling Thickness | Min 1/2" to Max 1-1/2" |
| Finish | Matte White (MW) |
| Performance Specs | |
|---|---|
| Delivered Lumens | 1100 nominal; up to 1140 lm (SWW5) |
| Wattage | ~13.3 W |
| CCT (Switchable) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ |
| Beam | Wide flood > 90° |
| Lumen Maintenance | L70 @ 50,000 hours |
Application Examples
- Bathrooms and showers (wet location) and outdoor soffits.
- Kitchens, living areas, and hallways needing adjustable CCT.
- Remodels and new construction (with optional new-construction pan).
- Multi-family and light commercial corridors or dorms.
Installation Tips
- Cut a 6-1/2" ceiling opening, connect supply in the integrated J-box using the push-in connectors, then secure with spring clips.
- Set the SWW5 CCT switch before finalizing install; default is 3000K.
- Use compatible forward-phase dimmers (see Juno list) and verify load limits.
- Rated IC and airtight; suitable for insulated ceilings and wet locations.
Frequently Asked Questions
Q: What size hole do I need?
A: The required ceiling cutout is 6-1/2"; the trim overlaps to 7-1/4".
Q: Can I use this in showers?
A: Yes. It’s wet-location rated and airtight, ideal for showers and bathrooms.
Q: Is a can housing required?
A: No. This is a canless direct-wire downlight with an integrated junction box.
Q: What dimmers are compatible?
A: It dims to 10% with forward-phase (TRIAC) dimmers. Check Juno’s approved dimmer list for specific models.
Q: How many color temperatures are available?
A: Five: 2700K/3000K/3500K/4000K/5000K set via the SWW5 switch.
Q: Is it IC rated?
A: Yes, the fixture is IC-rated for contact with insulation.
Q: What’s the expected lifetime?
A: Rated L70 at 50,000 hours under typical conditions.
Q: Do I need a new-construction pan?
A: Not for remodels. For new construction, an optional universal pre-mounting pan is available.
