Product Description

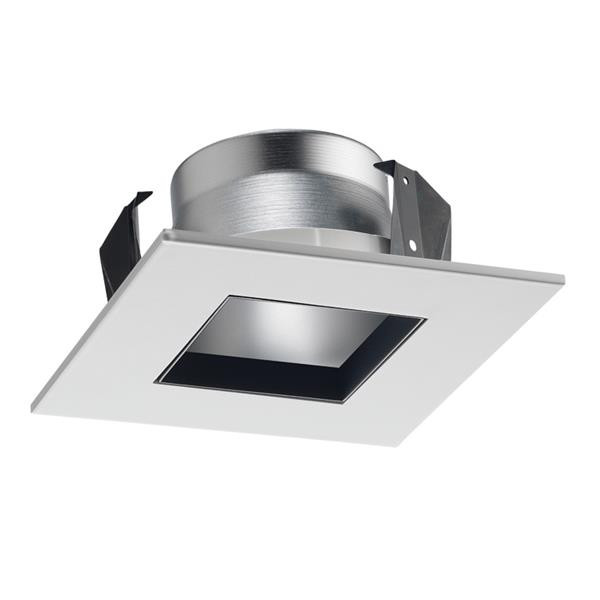

447SQ-HZ-WH 4" Low Voltage Square Downlight Trim, Haze Reflector, White Trim is a Juno 4" square adjustable downlight trim that partners with Juno 4" low-voltage MR16 housings to deliver precise accent lighting and a clean architectural look. The haze reflector reduces glare while the white trim provides a crisp transition to the ceiling plane.
Product Summary
- 447SQ-HZ-WH — 4" square adjustable downlight trim; haze reflector with white trim ring
- Lamp: MR16 (per housing, typically up to 50W)
- Aiming: up to 35° vertical tilt for precise accenting
- Outside dimension: approx. 5" square (nominal)
- Compatibility: Juno 4" low-voltage IC and Non-IC housings
Free shipping on orders over $250
Benefits
- Modern square aperture complements contemporary interiors and millwork.
- Targeted illumination with 35° tilt to highlight art, merchandise, or architectural details.
- Reduced glare via haze reflector finish for comfortable viewing.
- Flexible MR16 lamping lets you select beam spreads and CCTs for each space.
Key Features
- Haze reflector with white trim ring for a refined, low-glare appearance.
- Adjustable mechanism supports up to 35° vertical aiming.
- Square form factor coordinates with linear details and modern layouts.
- Compatible with multiple Juno 4" low-voltage housings (IC & Non-IC).
Specifications
Technical Specs
| Model / Finish | 447SQ-HZ-WH — Haze reflector / White trim |
| Lamp Type | MR16 (check housing for max wattage/transformer type) |
| Aiming Range | Up to 35° vertical |
Physical Specs
| Trim Shape | Square, nominal 4" aperture (~5" OD) |
| Reflector / Flange | Haze reflector / White trim ring |
Compatible Housings
- IC: IC44N, IC44NW, IC44NS (4" IC New Construction)
- Non-IC: TC44, TC44V, TC44S (New Construction), TC44R (Remodel)
Application Examples
- Accent lighting for artwork, niches, and retail displays
- Residential living rooms, kitchens, hallways
- Hospitality and boutique commercial interiors
Installation Tips
- Match the trim to a Juno 4" low-voltage housing from the compatibility list.
- Confirm the ceiling cutout and housing alignment before inserting the trim to maintain a tight reveal.
- Select the appropriate MR16 wattage and beam for the application (spot, flood, etc.).
- After aiming up to 35°, check glare from typical viewing angles and adjust as needed.
FAQ
Q: Which housings work with 447SQ-HZ-WH?
A: Juno IC44N/IC44NW/IC44NS, TC44/TC44V/TC44S, and TC44R 4" low-voltage housings.
Q: What lamp does this trim use?
A: MR16 (check housing for transformer type and maximum wattage).
Q: How much aiming adjustment is available?
A: Up to 35° vertical tilt for precise accent lighting.
Q: What do the “HZ” and “WH” finishes indicate?
A: HZ = haze reflector; WH = white trim ring.
Q: What is the outside dimension?
A: Approximately 5" square (nominal) around a 4" square aperture.
