Product Description
Juno 17SQ-WHZ-WH 4" Line Voltage Square Downlight Trim features a refined wheat haze reflector paired with a white trim ring for a balanced, architectural aesthetic. Designed for use with LED and fluorescent housings, this trim delivers a professional finish for a wide range of ceiling types and applications.
Model: 17SQ-WHZ-WH
Trim Style: Square Downlight
Reflector Finish: Wheat Haze
Trim Finish: White
Compatible Housing: ICPL/PL Series and IC1LED/IC1RLED Series
Lamp Types: 13W, 18W, or 26W CFL / LED retrofit options

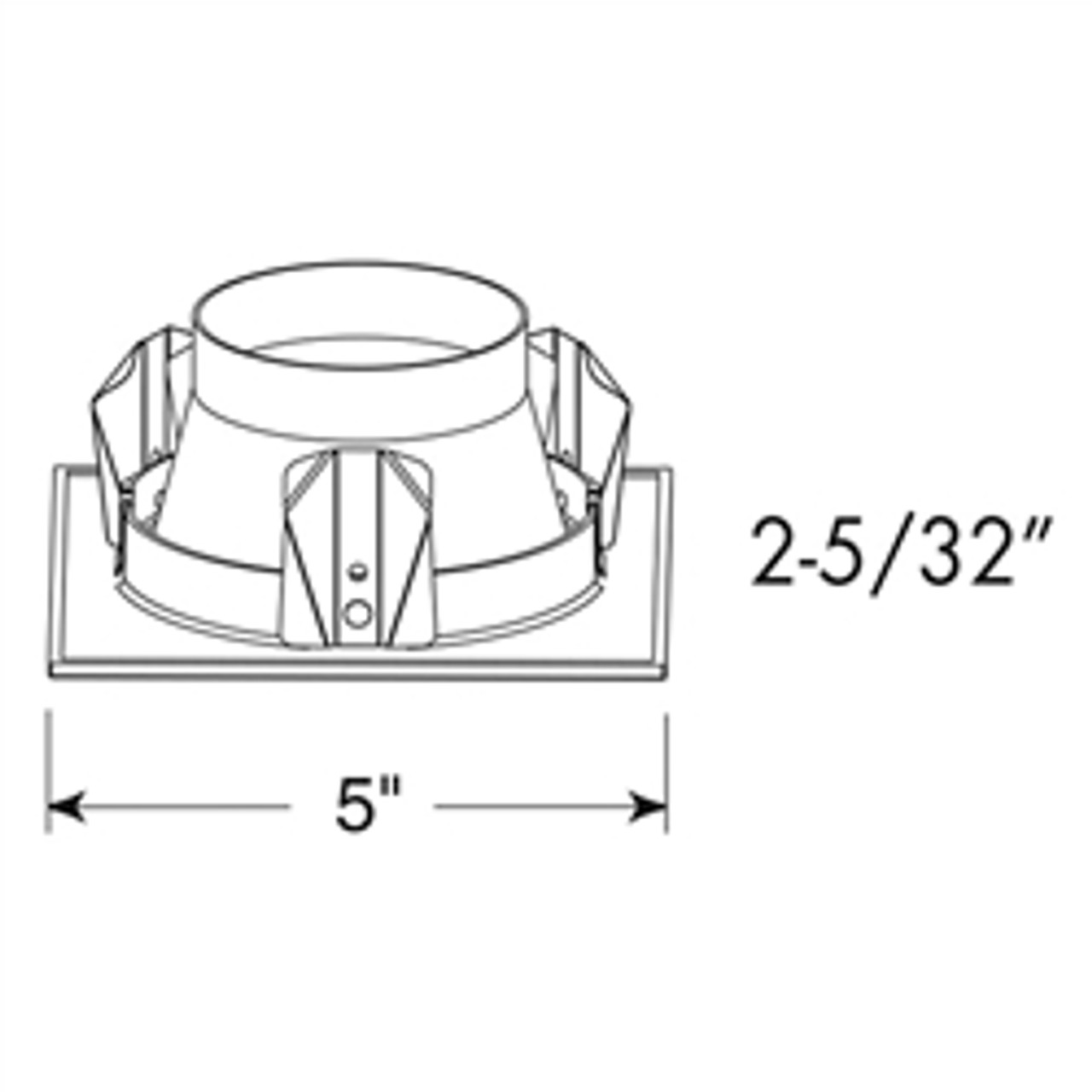

Aperture: 2-5/32"
Overall Dimension: 5" Square
Shipping Offer: Free shipping on orders over $250
Product Benefits
- Modern architectural design—square profile with a warm wheat haze reflector complements professional interiors.
- Versatile compatibility—works with Juno LED and fluorescent housings for both new construction and retrofit applications.
- Consistent illumination—smooth beam distribution for downlight performance in commercial and residential spaces.
- Durable construction—precision-finished aluminum trim ensures long-term color and surface integrity.
Key Features
- Trim Type: 4" line voltage square downlight with reflective interior finish.
- Reflector Finish: Wheat haze for softened brightness and glare control.
- Trim Ring: Clean white finish matches standard ceiling colors.
- Compatibility: Designed for use with ICPL, PL426, PL418, and PL413 series housings.
- Multi-Lamp Support: Operates with 13W, 18W, or 26W compact fluorescent lamps or equivalent LED retrofit housings.
Specifications
Technical Specs
| Model Number | 17SQ-WHZ-WH |
| Series | 4" Line Voltage Square Trim Series |
| Trim Type | Square Downlight Trim |
| Reflector Finish | Wheat Haze |
| Trim Finish | White |
Performance Specs
| Compatible Lamp Types | 26W, 18W, or 13W CFL / LED |
| Housing Compatibility | ICPL/PL426, PL418, PL413, IC1LED/IC1RLED, and IC1LWD/IC1RLWD Series |
| Voltage | 120V Line Voltage |
| Aperture Size | 2-5/32” |
| Trim Dimension | 5” Square |
Compliance & Safety
| Certifications | UL Listed for damp locations (when used with compatible housing) |
| Manufacturer | Juno Lighting, a brand of Acuity Brands |
Application Examples
- Ideal for residential downlighting in kitchens, hallways, and living spaces.
- Perfect for commercial accent lighting in retail or office environments.
- Compatible with IC-rated housings for insulated ceilings.
- Suitable for LED retrofit upgrades or fluorescent conversions.
Installation Tips
- Verify housing compatibility—use with designated Juno 4" square line voltage housings.
- Align trim edges flush with ceiling surface for a clean architectural finish.
- Use compatible lamp wattages (13W, 18W, or 26W) as recommended per housing type.
- Secure trim springs evenly to ensure proper reflector alignment.
- Always disconnect power before installation or maintenance.
FAQ
Which housings are compatible with the 17SQ-WHZ-WH trim?
This trim is compatible with ICPL/PL426, PL418, PL413 fluorescent housings, and IC1LED/IC1RLED series LED housings.
Can I use this trim with LED retrofit modules?
Yes, it works with Juno IC1LED or retrofit housings for LED applications.
What is the finish color?
The interior reflector is wheat haze, and the outer trim ring is white.
Is this trim suitable for damp locations?
Yes, when paired with a compatible UL-listed housing.
Does it support line voltage operation?
Yes, this is a 4” line voltage trim designed for standard 120V operation.
What are the trim dimensions?
The overall trim measures 5" square with a 2-5/32” aperture.
Can it be used with fluorescent housings?
Yes, it supports Juno ICPL and PL series housings with 13W, 18W, or 26W CFL lamps.
Does this model require additional accessories?
No additional accessories are needed when installed in compatible housings.
What is the recommended installation method?
Simply snap or spring-mount into the housing per Juno’s installation guide.
What type of environment is this trim best suited for?
Suitable for general and task lighting in both residential and commercial interiors.
