Product Description

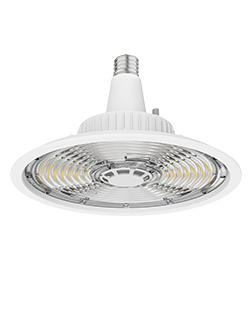

HIDFA-135S-V-EX39-8CCT-BYP HID Replacements 1300-20000 Lumens HID Field Adjustable Selectable offers a versatile, high-efficiency LED solution for replacing traditional metal halide or high-pressure sodium HID lamps. With adjustable wattage, color temperature, and integrated driver for direct line-voltage connection, this RAB Lighting retrofit lamp delivers superior performance, long lifespan, and energy savings for both commercial and industrial applications.
Wattage: 8.8–135W (Field Adjustable)
Lumens: 1,300–20,000 lm
Color Temperature: Selectable 3000K / 4000K / 5000K
CRI: 80
Voltage: 120–277V AC
Base Type: EX39
Beam Angle: 90°
Free shipping on orders over $250
Product Benefits
- Replaces 400W HID lamps for significant energy savings and reduced maintenance.
- Field-adjustable wattage and CCT allows one lamp to meet multiple lighting needs.
- Integral driver enables direct wiring to line voltage without a ballast.
- Rated for enclosed fixtures in damp or dry environments.
Key Features
- Wattage: Adjustable 8.8–135W
- Lumen Output: 1,300–20,000 lm
- Efficacy: 147.7–148.1 lm/W
- Voltage: 120–277V, 60 Hz
- THD: <20%
- Power Factor: 0.9
- Dimming: Stepless dimming via rotate switch
- Operating Temp: -30°C to 50°C
- Warranty: 5 years
Technical Specifications
| Performance Specs | |
|---|---|
| Lumen Output | 1,300–20,000 lm |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | 80 |
| Efficacy | 147.7–148.1 lm/W |
| Lifespan | 50,000 hours (L70) |
| Electrical Specs | |
|---|---|
| Wattage | 8.8–135W (Adjustable) |
| Voltage | 120–277V AC |
| Power Factor | 0.9 |
| THD | <20% |
| Dimming | Stepless, via rotate switch |
| Physical Specs | |
|---|---|
| Bulb Shape | Round |
| Base Type | EX39 |
| Beam Angle | 90° |
| Material | Aluminum endcap, plastic enclosure |
| Dimensions | Height: 7 7/8” | Width: 12 5/8” |
Applications
- High bay and low bay fixtures
- Industrial and warehouse lighting
- Gymnasiums and recreational facilities
- Large retail and commercial spaces
Installation Tips
- Turn off power before installation.
- Bypass or remove existing ballast, capacitor, and ignitor.
- Flip the CCT switch to desired color before installation.
- Adjust wattage using the dimmer knob before securing lamp.
- Use the provided safety cable in case of socket failure.
Frequently Asked Questions
Q: Does this lamp require a ballast?
No, the integral driver allows direct connection to 120–277V AC without a ballast.
Q: Is it dimmable?
Yes, it has stepless dimming controlled by a rotate switch.
Q: Can I use this in an enclosed fixture?
Yes, it is rated for enclosed fixtures in dry or damp locations.
Q: How many HID wattages can this replace?
It can replace up to 400W metal halide or high-pressure sodium lamps.
Q: Is it suitable for cold environments?
Yes, it operates down to -30°C (-22°F).
Q: What is the warranty?
It comes with a 5-year no-compromise warranty.
