Product Description

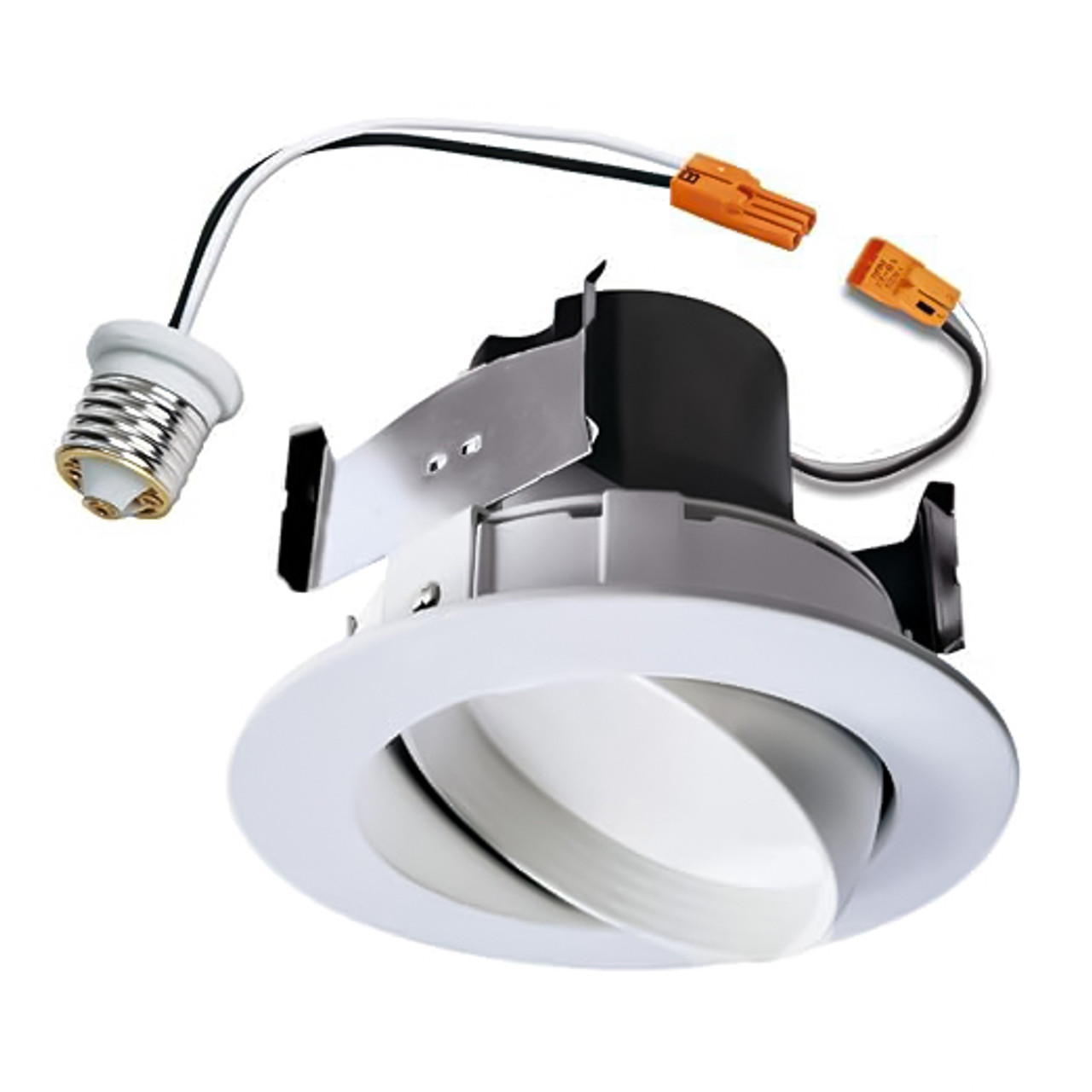

HALO RA406927WH 90 CRI, 2700K, Very Wide Flood Integrated LED Recessed Trim, 4", White is a retrofit LED gimbal module delivering smooth 600-lumen ambient illumination with 35° tilt and up to 360° rotation. The module installs in minutes using friction blades and includes an E26 adapter for legacy housings, plus a 120V dimmable driver for quiet, flicker-free performance.
Brand: HALO (Cooper Lighting Solutions)
Model: RA406927WH
Type: 4" LED Adjustable Gimbal Retrofit
CCT / CRI: 2700K, 90 CRI
Lumens / Wattage: 600 lm (typ.), 10W
Beam: Very Wide Flood (VWFL)
Dimming: Phase dimmable to ~5% (LE/TE)
Aiming: 35° tilt, 360° rotation
Input: 120V AC, PF >0.90, THD <20%
Listings: UL/cUL Damp, ENERGY STAR®, Title 24 JA8
IP Rating: IP34 (VWFL)
Finish: Matte White trim
Dimensions: 5.13" OD × 3.3" H
Housing Compat: H995/H245 LED; H99/E4 (E26) w/ adapter
Free shipping on orders over $250
Product Benefits
- Warm, high-CRI light at 2700K with 90 CRI enhances finishes and natural tones for residential and hospitality spaces.
- Wide, even coverage from the Very Wide Flood optic reduces hot spots and shadows in living rooms, halls, and lobbies.
- Fast retrofit—friction blades and included E26 adapter make upgrades simple without replacing the housing.
- Quiet dimming to ~5% with many leading/trailing-edge dimmers for flexible ambience control.
Key Features
- Adjustable gimbal: 35° tilt and up to 360° rotation to aim light precisely where needed.
- Integrated 120V driver: high power factor, low THD, FCC consumer EMI/RFI compliant.
- Durable construction: die-cast aluminum with integrated heat sink for long life.
- Ratings & compliance: UL/cUL Damp, ENERGY STAR®, Title 24 high-efficacy/JA8; IP34 ingress protection (VWFL).
- Housing compatibility: LED H995/H245 series with quick connector; legacy H99/E4 series via included E26 adapter.
Specifications
Technical Specs
| Lumen Output | 600 lm (VWFL, 2700K) |
| Wattage / Efficacy | 10W / ~60 lm/W |
| CCT / CRI | 2700K / 90 CRI |
| Beam Distribution | Very Wide Flood (VWFL) |
| Dimming | Leading/Trailing edge; to ~5% (low-end trim recommended) |
| Input | 120V, PF >0.90, THD <20%, 50/60Hz, ~85mA |
| Operating Temp | Start -30°C (-22°F); max 25°C (IC) / 40°C (Non-IC) |
Physical Specs
| Outside Diameter | 5.13" (130 mm) |
| Height | 3.3" (86 mm) |
| Aiming | 35° tilt, up to 360° rotation |
| Finish | Matte White |
| Mounting | Friction blades; ground lead included |
Performance & Compliance
| Listings | UL/cUL 1598 with compatible housings; Damp Location |
| IP Rating | IP34 (VWFL) |
| Programs | ENERGY STAR®, Title 24 High-Efficacy & JA8 |
| Housing Compatibility | H995ICAT, H995RICAT, H245ICAT, H245RICAT; E26 housings H99ICAT/H99TAT/H99RTAT/E4ICATSB/E4TATSB/E4RTATSB via included adapter |
Application Examples
- Living rooms, bedrooms, hallways, and foyers seeking warm, wide distribution.
- Hospitality corridors and common areas where uniform illumination is key.
- Retail ambient or wall-wash lighting with adjustable aiming.
- Retrofit upgrades from incandescent cans to efficient LED.
Installation Tips
- De-energize the circuit, connect the ground lead, and use friction blades to secure the module in the housing.
- For legacy housings, use the included E26 screw-base adapter; for LED housings, plug into the quick connector.
- Set dimmer low-end trim to ensure smooth dimming down to ~5%.
- Unit may contact air-permeable insulation; do not install in housings in direct contact with spray-foam insulation.
- After install, aim with 35° tilt and 360° rotation to achieve desired coverage.
FAQ
How bright is the RA406927WH?
It produces approximately 600 lumens at 10 watts in the Very Wide Flood optic.
Will it work with my existing 4" can?
Yes—it's UL Classified for many 4" steel/aluminum housings and includes an E26 adapter for common Halo H99/E4 cans; it also plugs directly into Halo H995/H245 LED housings.
Does it dim?
Yes. The integrated 120V driver supports leading and trailing-edge phase dimmers, typically down to about 5% with proper low-end trim.
Is it suitable for bathrooms or damp areas?
Yes. It is UL/cUL Damp Location listed and the VWFL version carries an IP34 rating.
What are the module dimensions?
Outside diameter is about 5.13" with a module height of 3.3", fitting standard 4" recessed housings.
What color quality does it provide?
A warm 2700K with high 90 CRI for excellent color rendering.
